DeWalt Cross Line and Plumb Spots Laser

Why I reached for the DW0822

I brought the DW0822 to a framing and layout week where I needed both clean cross lines and reliable plumb points. I wanted a compact unit that could handle metal stud track, transfer points floor-to-ceiling, and survive jobsite dust without babying it. On paper, this laser checks those boxes: self-leveling cross line with two plumb spots, a stout magnetic pivot base, a locking pendulum, and IP54 protection. In use, it’s a capable, workmanlike tool that favors predictable performance over flash—and that’s what I value on layout days.

Setup and build quality

The unit feels stout for its class. At 3.3 pounds, it’s heavier than many small cross-line lasers, but the mass pays off in stability and the magnets bite hard on clean steel. The over-molded housing shrugs off the incidental bumps, and the IP54 rating means dust and jobsite splashes aren’t showstoppers. The controls are simple: a slider for lock/unlock and power modes, and a button to run the pulse mode. The pendulum lock engages with a positive feel. That lock is not a suggestion—use it every time you move the tool; it protects the internal mechanism.

Self-leveling is quick. Set it down on anything reasonably close to level and the lines settle within a couple of seconds. If you push it outside its leveling range, the behavior is exactly what you want: it won’t fake level. Bring it back into range and it snaps to true again.

Lines and plumb spots: how they perform

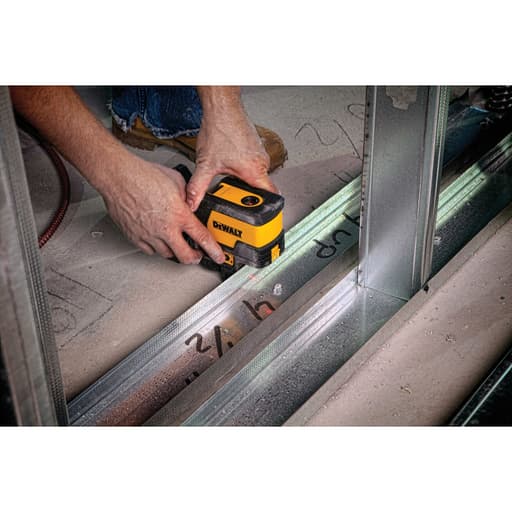

The DW0822 projects intersecting horizontal and vertical lines plus two plumb spots. The combination is the draw. For track layout, I’ll often use the vertical line to plumb up a stud location and the downward dot to commit to a marked floor point without hiding my reference under the base. The down-beam has raised clearance, so the dot remains visible when the unit is sitting over track or irregular floor; that’s a clever detail that avoids guessing and repositioning.

The top and bottom dots track straight with each other. I verified plumb by dropping the bottom dot to a floor mark, then confirming the top dot fell on a reference on the lid joists—no discernible drift over typical room heights. The cross lines are crisp at close range; expect the usual red-laser line thickening as you stretch distance. At around 30 feet, the line width is still easy to resolve for layout marks, and the published ±1/8 inch at 30 feet tracked with my checks against a known-good analog level and a fixed benchmark.

Mounting and layout in the field

The integrated magnetic pivoting base is the unsung hero. DeWalt put magnets on both front and rear faces so the base sits flush on steel studs, door frames, angle iron, and track. The magnets are strong enough to hold the tool rock solid on clean steel; on dirty or painted surfaces, a wipe makes a big difference. I frequently hang it on steel studs to shoot verticals for window openings or to mark the centerline for kitchen duct chases. On a steel ladder or scaffolding, it’s quick to get a clean horizontal line across a bank of rough openings.

Because the base pivots, you can fine-tune the line position without having to pick the tool up. That said, treat the substrate as part of your setup. If the floor is springy or if people are walking nearby, the line will visibly shimmer. That isn’t a defect—it’s the reality of projecting a line onto a moving plane. If you’re doing precise layout on a bouncy deck, isolate the laser or pause foot traffic.

Visibility and range

Indoors, the red lines are bright and very usable to the stated 50 feet, with the best clarity inside 30 feet. In dim shops or homes, you’ll be fine. In bright interiors with lots of daylight or outdoors, switch on the full-time pulse mode and run a detector. Pulse preserves the line’s visibility to the eye while enabling the receiver to pick it up reliably. Without a detector, direct sun will wash the line quickly—typical of Class 2 red lasers. If you work outside often, plan on using a receiver or consider a green laser for naked-eye visibility.

Battery life and power

Power is simple: three AA batteries, 4.5V total. DeWalt lists around eight hours of runtime, which aligned with my experience across a couple of long days—more if you’re cycling it off between tasks, less if you leave pulse mode on continuously. I toss a spare set of AA alkalines in my pouch and often use NiMH rechargeables on longer jobs. The battery door is snug; it’s secure, but getting it open with gloved hands isn’t graceful. Small gripe, but worth noting if you’re swapping cells in the cold.

Durability, transport, and care

The DW0822 is clearly built to be handled. The over-mold gives you grip and impact buffering, the lens hood is well-protected, and the IP54 rating kept dust and light spray from becoming an issue. The only real “care” instruction that matters: lock the pendulum before you move or transport the unit. Make it muscle memory. I also avoid leaving batteries in any laser long-term; the tool doesn’t draw parasitic power when off, but alkaline leaks are unforgiving.

Accuracy checks and workflow

I treat lasers like levels: trust, then verify. Out of the box, I ran a quick box test for the horizontal line and a two-point plumb test for the spots. Everything landed within spec. In actual work, I use the vertical line for stud centers and rough opening edges, then pencil next to the line so I’m not chasing a beam while I fasten. For transferring points, the plumb spots are the faster, cleaner option compared to using the line—tap the bottom dot to your mark, set your top reference, and move on.

One workflow note: don’t expect to park this in one spot and swivel to cover an entire room while assuming every surface is true. The laser will hold level and plumb; your walls may not. You’ll still need to move the unit to get square and plumb references where the structure wanders.

Limitations and wish list

• Visibility in bright daylight without a detector is limited. That’s the nature of red Class 2 beams.
• Line thickness increases with distance. It’s still usable for layout, but for fine finish marks at long runs, I switch to a pencil off the edge of the line.
• The battery door could be easier to open. A small design tweak here would be welcome.
• Weight is on the higher side for a compact laser. I like the stability, but your pouch will notice.

None of these are dealbreakers for the intended use. They’re mostly expectations to set.

Who it’s for

The DW0822 fits carpenters, metal stud installers, electricians, and HVAC techs who need quick cross lines and reliable plumb points for framing, track alignment, ceiling drops, conduit runs, and fixture layout. It’s excellent for rough and mid-precision tasks—think framing, drywall, ductwork—where speed and repeatability matter more than ultra-fine finish tolerances.

Recommendation

I recommend the DW0822 for anyone who wants a durable, self-leveling cross-line laser with the added utility of top and bottom plumb spots. It’s accurate to its spec, the magnetic pivot base is genuinely useful on steel, the raised-clearance down beam makes floor work faster, and the IP54 build holds up on active sites. Pair it with a detector for bright jobs and keep spare AAs in your bag. If you primarily work outdoors without a receiver or you need ultra-fine line visibility at long distances, a green-beam model might suit you better. For most interior layout and alignment tasks, the DW0822 is a dependable, straightforward tool that earns a place in the kit.
