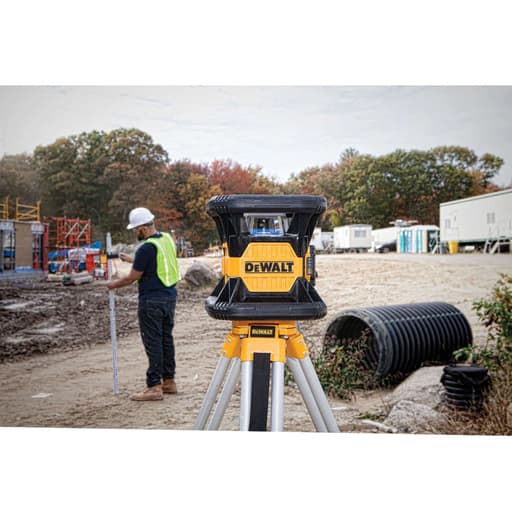

DeWalt 20V MAX Red Rotary Tough Laser

First look and setup

I put the DeWalt rotary laser to work on a pair of jobs: an exterior grading layout on a windy, muddy pad and a fast-turn interior layout for walls and a ceiling grid. Out of the TSTAK case, the kit is complete: laser unit, detector with bracket, 5/8" tripod adapter, target card, enhancement glasses, ceiling bracket, a 20V MAX battery, and a charger. I appreciate not having to hunt for accessories—everything has a spot and the case is tough enough for the back of a truck.

Set‑up is quick. I mounted it to a 5/8" survey tripod, snapped in a 20V MAX battery, and the unit leveled itself in seconds. It supports both horizontal and vertical modes and throws up/down plumb spots, which made transferring a control point from floor to ceiling painless. The self‑leveling is reliable; if it’s outside its range, it warns and stops, which is what I want in a rotary—no “mystery slope” sneaking into the work.

Build quality and durability

This unit is IP67 rated and carries a 1‑meter drop spec. I can’t speak to submersion, but I did hose mud off the housing and used it in steady rain without a hiccup. It took a minor knock when a co-worker nudged the tripod and the head brushed a form stake—no damage, no change in tracking. On another day it survived a gentle tip from the tailgate onto wet grass. The seals, gaskets, and door latches feel confidence‑inspiring.

One caution: the tripod interface and adapter introduce a little flex if you’re using a light aluminum tripod and you’re not snug on the 5/8" threads. The body itself is compact and relatively light for a rotary, which is great for transport, but that means the stability comes down to the tripod and the adapter. With a heavy survey tripod and the adapter cinched firmly, the instrument is solid. With a flimsy tripod or a loose plate, I did see the head creep if you bump it. My advice: use a stout tripod and check the adapter tightness before you start shooting grades.

Accuracy and consistency

DeWalt claims ±1/16 in. at 100 ft, and my checks back that up. On the slab, I ran a four‑point check at 100 ft around the instrument, then rotated and re‑checked after 20 minutes of runtime to look for drift. All measurements stayed within spec. On interior layout at 50–60 ft runs, studs and track lined up perfectly when I circled back. The plumb spot feature is accurate enough for transferring control points; I confirmed with a plumb bob and a line laser and saw only negligible difference.

The unit’s dual‑axis slope mode is genuinely useful. For driveway and swale work, dialing in a small consistent fall on one axis while keeping the other level saves time. Adjustments are straightforward, and the laser holds grade reliably, but I’d still recommend verifying with the detector at the far end after you set your slope—it’s easy insurance.

Visibility and range

The beam is red, and that dictates a bit of workflow. Indoors, with lighting under control, the beam is visible on short runs, but I mostly worked with the detector even inside to move faster. Outdoors, you’ll be using the detector almost exclusively. DeWalt rates the system to 2000 ft diameter with the detector. I tested effectively out to roughly 800 ft from center (1600 ft diameter) on a bright day and had a stable signal. Past that, on very bright afternoons and over water or reflective surfaces, the receiver would occasionally go hunt for the beam. Angling the detector slightly, shielding the sensor with a hat brim, and keeping the beam in full rotation rather than scan helped. Plan on slower passes and more deliberate detector sweeps at extreme distances.

The detector bracket is sturdy and holds zero well once tightened. Take a moment to square it to the rod and lock down the clamp; if you leave it loose, you’ll chase readings. The enhancement glasses and target card are helpful for close‑in interior work when you want a quick visual confirm, but they won’t replace the detector in sunlight.

Scan modes and layout features

The scan modes (15°, 45°, 90° windows) shine on interior work. Narrowing the sweep reduces splash and reflections and gives you a clean, bright section of line where you’re actually working. In vertical mode, the rotating beam doubles as a line reference for wall layout, and the up/down plumb spots make dropping a centerline from a ceiling mark quick. The ceiling bracket is a nice add when you want the head above obstructions—steel studs, conduit, or ductwork—without improvising a mount.

Power and runtime

Running off the 20V MAX platform is a real advantage if you’re already on yellow batteries. DeWalt lists up to 96 hours depending on capacity and use. With a 5Ah pack and mixed use (periods of scanning and idle, detector on/off), I got through two long days before swapping packs. That’s excellent and reduces one more charger ecosystem from the job. The battery gauge and simple controls become second nature in a day.

Ergonomics and workflow

Controls are intuitive: power, mode selection, slope adjustments, and scan angles are clearly labeled and glove‑friendly. The self‑level indicator is readable at a glance. It’s quiet in operation; you’ll hear the motor up close, but it won’t compete with a saw or generator. The included TSTAK case organizes the kit well. I wish the foam cutouts had a bit more tolerance for the detector bracket—repacking in a hurry can be fiddly—but everything stays put once it’s closed.

At roughly two pounds, the head is easier to carry than many rotary units, which I appreciate when bouncing between setups. As noted earlier, that lightness means you should prioritize a rigid tripod and a snug adapter—do that, and the instrument behaves like a heavier unit without the pain of hauling one.

What could be better

• Tripod interface: The adapter and mounting ring could be stiffer. I’d like a more robust, metal‑forward design that removes the possibility of flex on lighter tripods. It’s manageable with good technique, but it’s the one spot that undermines user confidence if you’re not careful.
• Receiver behavior in harsh glare: The detector works well most of the time, but in high glare at max range it can get fussy. Slowing down and realigning fixes it, yet a “high‑sensitivity lock” mode or a larger sensor window would help.
• Red beam trade‑offs: Red keeps costs and battery draw down, and with a detector it’s fine, but if you do a lot of indoor work without a detector, you’ll wish for a green option for visual brightness.

Safety and class

This is a Class 3 laser. The beam is not a toy; don’t stare into it, and be mindful of reflective surfaces at eye level. The included glasses are enhancement lenses for visibility, not safety-rated glasses—wear appropriate eye protection for the jobsite.

The bottom line

The DeWalt rotary laser brings together jobsite durability (IP67, 1‑meter drop), reliable ±1/16 in. accuracy at 100 ft, and a complete kit that’s ready to work, powered by the same 20V MAX batteries many of us already carry. Dual‑axis slope mode, vertical/horizontal self‑leveling, and useful scan windows make it versatile enough for grading, footings, slab work, wall layout, and ceiling grids. It’s light, easy to set up, and it shrugs off weather.

Its weaknesses are real but manageable: the tripod interface needs to be cinched down on a sturdy tripod to avoid flex, and the detector can require a more deliberate touch at extreme distances in bright conditions. If you work with a decent tripod, keep the adapter tight, and use the detector intelligently, the system is consistent and accurate.

Recommendation: I recommend this tool for contractors and serious builders who need a dependable rotary laser with long range and slope capability, especially if you’re already invested in DeWalt’s 20V batteries. It’s a strong balance of performance, durability, and kit completeness. If you rely heavily on visual beams indoors without a detector or you demand absolute rock‑solid rigidity on a light tripod, consider those limitations. For most layout and grading tasks, though, this DeWalt rotary laser has earned a spot in my truck.
