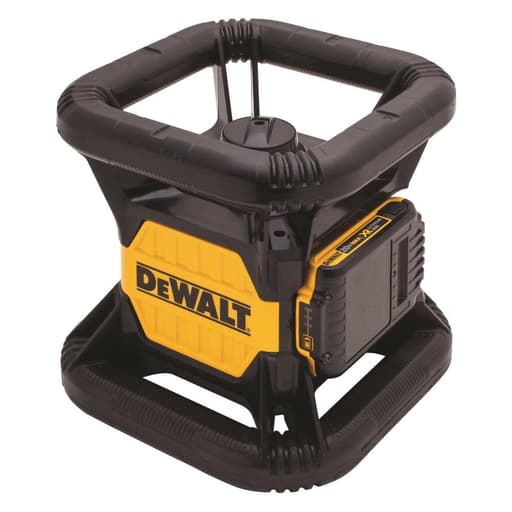

DeWalt 20V MAX Rotary Red with Tripod and Rod

First impressions in the field

I put the DeWalt 20V rotary laser kit to work on a small grading job, then carried it through a week of interior layout. Out of the box, it feels like a straightforward, job-ready package: laser, tripod, grade rod, and the necessary adapters to get mounted quickly. If you already live in the 20V Max battery ecosystem, it’s immediately convenient—click in a pack, hit power, and it finds level on its own in seconds. The IP54 rating held up fine through dust and light mist, and the protective cage around the rotor kept the head safe during a couple of unfortunately realistic knocks.

Setup, self-leveling, and calibration

Setup is quick. On a stable tripod, the laser spins up and self-levels reliably. I checked level with a two-peg test and didn’t see meaningful drift over typical residential distances. The self-leveling mechanism re-engages consistently after a bump, which saves time on site. For anyone transitioning from older manual-transit habits, the hands-off leveling is a welcome step forward.

One note on the user experience: the interface is minimalist, and switching modes isn’t always intuitive the first time. Vertical/plumb-up operation is there, but it’s tucked behind button sequences that aren’t obvious. Once I learned the cadence, moving between horizontal plane and vertical/plumb tasks became routine—just be prepared for a brief learning curve on your first day.

Power, runtime, and the 20V platform advantage

Power is a clear win. Running on the 20V Max platform means I can share batteries with my drills and saws, and I don’t need to keep a separate charging ecosystem alive. With a standard compact pack, I got multiple days of intermittent use. DeWalt lists up to 96 hours of runtime, and while continuous spin under bright conditions will draw more, the net effect is that battery anxiety isn’t part of the workday. The kit includes one battery, which is enough to get started, but I’d recommend keeping a second battery in the case if you’re bouncing between job phases.

Visibility and detection

This is a red-beam rotary. Indoors, the beam is fine for short-range sighting and alignment; outdoors and in bright interiors you’ll want to rely on the receiver. Through the detector, I had no trouble picking up the plane at typical site distances. If you’ve grown accustomed to green-beam visibility, know that red won’t punch as far in daylight. That said, with the receiver in play, the practical difference for grading, foundations, and elevation checks is minimal.

One quirk worth flagging: the protective ribs around the rotor head can, at certain angles, obscure the receiver’s “look” at the beam. It’s not a deal-breaker, but I occasionally nudged the receiver a hair left or right to reacquire the signal. Once you know that’s a possibility, it’s a two-second adjustment.

Vertical mode and layout tasks

For layout, I used the vertical/plumb-up mode to transfer lines for a partition and check steel locations. The plumb spot is crisp, and the vertical plane stayed put once locked. Again, the interface isn’t hand-holding—expect a little trial and error your first time entering vertical mode—but once engaged, it’s predictable. I had good results aligning track and mapping through penetrations, with the laser remaining stable to small site vibrations.

Tip: mark your height of instrument on the rod and keep consistent detector offset. It speeds repeat measurements and helps different crew members get the same read without recalculating.

Mounting, adapters, and the included tripod/rod

The kit includes both tripod and grade rod, which is great for anyone starting from zero. The tripod is light and easy to deploy, and the rod works as expected for elevation checks. The mounting adapters are functional, letting you go from tripod to bracketed setups on forms or columns. However, the adapter is a known weak link—it’s not as robust as the laser itself. Treat it like a precision accessory, not a pry bar, and it should last. I’d love to see a heavier-duty adapter option bundled for full-time site use.

The case is a bright spot. It’s part of DeWalt’s TSTAK system and stacks cleanly with other boxes. Molding is precise, so the laser, accessories, and battery don’t rattle around in transit.

Build quality and weather resistance

This laser is built for jobsite reality. The cage does its job, the housing takes scuffs without complaint, and the IP54 rating has been sufficient for dust, saw slurry, and those annoying brief showers that hit the moment you set up. It’s not a submarine, but it’s earned its keep in normal site abuse.

At about two pounds for the laser head, it’s easy to carry, and the 12-piece kit as a whole strikes a good balance between capability and portability. If you’re hauling multiple trades’ tools up stairs, every pound counts—this kit doesn’t add much burden.

Accuracy and consistency

In use, the laser maintained consistent readings across check-ins. Cross-checking elevations with a benchmark at multiple points during the day didn’t expose any wandering. I didn’t experience false leveling or unexplained shutoffs. The self-level range is generous enough to cope with less-than-perfect tripod placement, but as always, start with a reasonably level base to keep the mechanism happy.

Ease of use and interface

Day to day, operation is simple: power, let it settle, confirm with the receiver, and work. Locking for transport is solid, and mode switching becomes second nature after a few sessions. The biggest friction point is documentation—the manual could be clearer about mode changes and icon meanings. If this is your first rotary laser, plan on ten focused minutes at a bench to press each button and learn what the icons do. It’ll save you time later when you’re standing in mud with a crew waiting.

Where it shines

• General grading and drainage work with a receiver
• Foundation, slab, and deck elevations
• Interior layouts requiring vertical or plumb reference
• Contractors already invested in DeWalt 20V Max batteries
• Crews needing a complete kit (laser, tripod, rod) in one case

What could be better

• Visibility: as a red-beam unit, it’s not the brightest—expect to use the receiver outdoors
• Documentation: mode switching and icon definitions need clearer explanation
• Protective cage ribs: occasional interference with the receiver line of sight
• Mounting adapter durability: treat with care; a more robust adapter would inspire more confidence

Warranty and service

DeWalt backs the kit with a 3-year limited warranty, 1 year of free service, and a 90-day satisfaction guarantee. That’s aligned with expectations at this price point and provides a sensible safety net for a tool that may live in the back of a truck and see daily use.

Final thoughts and recommendation

The DeWalt 20V rotary laser kit checks the boxes that matter for most jobsite tasks: dependable self-leveling, practical runtime on a common battery platform, weather resistance, and a complete set of accessories to get to work on day one. It isn’t the most visible laser in bright conditions, and the manual won’t win any awards, but those are manageable realities rather than showstoppers. Once you understand its interface, it becomes a reliable, no-drama tool that quietly keeps projects on grade and on line.

I recommend this kit for contractors and serious DIYers who want a durable, self-leveling rotary laser that plays nicely with 20V Max batteries and comes ready to work. If you regularly work in intense daylight without a receiver or you prioritize maximum beam visibility, consider a green-beam alternative. For everyone else, this is a solid, sensible choice that delivers consistent results with minimal fuss.
