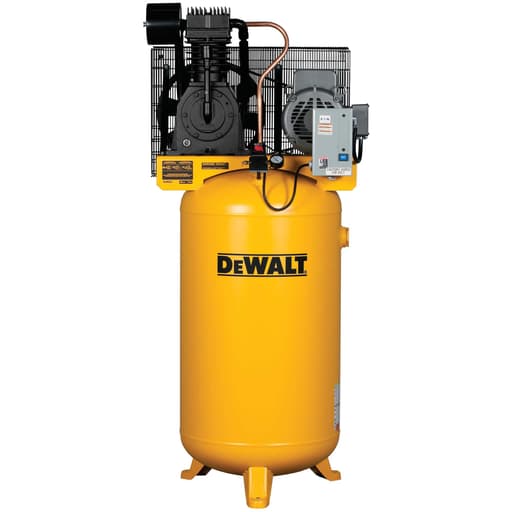

DeWalt 7.5 HP 80-Gallon Two-Stage Oil-Lube Stationary Air Compressor

First impressions and what it takes to live with it

The DeWalt 7.5‑HP stationary compressor is a serious piece of shop equipment—tall, heavy, and built to run hard. Mine arrived bolted to a pallet and demanded planning before I ever powered it up. At roughly 79 inches tall and over 600 pounds, it’s not something you scoot into a corner and forget. Expect to use a pallet jack or engine hoist, set it on anti‑vibration pads, and anchor it to a solid slab. Clearances matter: the pump and finned intercooler throw heat; give it room to breathe.

Electrical is straightforward but not plug‑and‑play. It’s a 230‑volt, single‑phase motor with a full‑load draw around 31 amps, so I installed a dedicated 40‑amp breaker, a local disconnect, and hard conduit. There’s no power cord supplied—nor should there be on equipment in this class—but the pre‑wired magnetic starter on the control panel simplifies things. It’s nice to have that piece done correctly from the factory.

On the air side, the vertical 80‑gallon ASME tank uses a 3/4‑inch outlet. There’s no regulator or filtration included, which is exactly how I prefer it; I plumbed a short header with a ball valve, a particulate/coalescing filter pair, and a high‑flow regulator to cover everything from impact wrenches to paint guns. Given the lack of an electronic drain, I added an auto drain to the tank after a week of manually cracking the petcock—worth every penny if you generate water in a humid shop.

One practical note from setup: I did a standard break‑in run with the tank vented, then checked every fitting. I had a minor weep at a hardline fitting that disappeared with proper thread sealant and a careful re‑torque. After a few heat cycles I rechecked belt tension and mounting bolts. It’s basic compressor housekeeping that pays off long‑term.

Performance: air where it counts

What matters is air delivery, and this unit has it. The two‑stage, oil‑lubricated cast‑iron pump is coupled to a 1,725 RPM motor, which is a big reason it’s more civilized than cheaper, high‑speed units. DeWalt rates it at roughly 22.1 CFM at 100 psi and 21.2 CFM at 175 psi. In practice, those numbers feel honest.

From empty, my unit charged to its 175 psi cut‑out in just under seven minutes, which is right in line for an 80‑gallon vertical. More importantly, under load it doesn’t chase pressure. With typical shop air set at 90 psi, I can run a 1‑hp die grinder continuously without starved air, and a small‑nozzle blast cabinet stays happy as long as I give it reasonable duty cycles. Orbital sanders, spray guns, and half‑inch impacts are all non‑events; the compressor cycles but doesn’t feel strained.

The 175 psi upper limit is useful even if your tools live at 90–120 psi. That extra pressure translates into more stored air in the same tank volume and shorter recovery time after heavy bursts. Where I notice it most is moving between tasks—blowing off parts, then hitting an impact, then spraying—without the compressor chasing me.

Heat management is good for a machine in this class. The finned intercooler and cast‑iron flywheel move air across the pump, and after 20–30 minutes of continuous use the pump head is hot (as expected) but not alarming. If you plan sustained sandblasting or multiple operators, budget for robust after‑cooling and drying; the compressor does its job, but water is physics, and 20+ CFM will load any air treatment system.

Sound and vibration

It isn’t whisper‑quiet, but it’s not obnoxious either. Measured near the pump, I’m in the low‑80s dB while charging—consistent with the 84 dB spec. Across the shop, conversation is fine. Rubber isolation pads and good belt alignment matter; dial those in and the subjective sound quality improves. If near‑silence is a must, you’re shopping the wrong category—this is a classic two‑stage piston machine. For most garages and small shops, the noise level is entirely workable, especially if you can tuck it in a corner or utility room.

Build quality and the small things that matter

The bones are right. A heavy, ASME‑certified vertical tank, a belt‑driven cast‑iron pump, and a slow‑turning motor are the recipe you want for longevity. The integrated control panel with a pre‑wired magnetic starter is a genuine convenience and keeps wiring tidy. The oil sight glass is easy to read, and the extra‑capacity sump keeps temperatures in check during long runs. Service points are accessible; belts, filters, and oil changes don’t require contortion.

There are still areas where you can feel the cost target. The included belt on my unit worked but wasn’t what I’d call premium—it shed a bit of dust early on. I replaced it with a quality V‑belt a month in and saw a small reduction in heat and noise. I also wish there were a factory low‑oil shutoff; there isn’t. That’s not unusual in this segment, but given how inexpensive those safeties have become, it would be a nice add. Likewise, a manual drain is expected, though an optional electronic drain kit would be a welcome accessory in the box.

The pump casting and flywheel are clean, and pulley alignment was correct out of the crate. Overall, it presents as a well‑sorted industrial tool with a few expected compromises that are easy to address in the shop.

Maintenance and daily use

Owning a compressor this size is part tool, part infrastructure. Plan on:

• Draining condensate daily or fitting an auto drain.
• Changing oil after break‑in and on a regular interval; full‑synthetic, non‑detergent compressor oil is the call.
• Checking belt tension and re‑torquing mounts after the first week, then periodically.
• Inspecting for leaks—soap solution is your friend—and fixing them promptly.
• Keeping intake filters clean; a dirty filter is the fastest way to heat and wear.

Because there’s no built‑in regulator or air treatment, think deliberately about your plumbing. A short length of black iron or copper before the filter helps with initial cooling and moisture drop‑out. If you paint or run air tools sensitive to oil and water, run a proper coalescing filter and dryer downstream. The 3/4‑inch outlet is generous; keep line restrictions to a minimum to take advantage of the unit’s flow capability.

Who this compressor suits—and who it doesn’t

• Great fit for:

  • Automotive and fabrication shops that regularly run grinders, sanders, impacts, and small blast cabinets.
  • Serious home shops that want a single, do‑it‑once air solution with real headroom.
  • Anyone needing 175 psi for faster recovery and more stored air without stepping up to a rotary screw.

• Think twice if:

  • You can’t supply a dedicated 230‑volt, 40‑amp circuit or don’t have the ceiling height and slab to anchor it.
  • You need near‑silent operation. A rotary screw or remote compressor room would be a better path.
  • Your air needs are light; a 5‑hp, 60‑gallon unit may be more space‑ and budget‑friendly.

The bottom line

After months of use, this DeWalt 7.5‑HP stationary compressor has proven to be a dependable workhorse with honest performance. It charges quickly, maintains pressure under sustained load, and runs with the kind of calm you only get from a slow‑turning, two‑stage pump. The fundamentals—cast‑iron pump, ASME tank, magnetic starter—are right. It does run hot under heavy work (as any piston compressor will) and it’s not quiet, but both are managed with smart placement, airflow, and basic vibration control.

It’s not perfect. Expect to handle your own air treatment, add an auto drain, and keep an eye on belts and fittings early on. I’d love to see a factory low‑oil safety and a higher‑grade belt out of the box. None of that changes the core value: strong, reliable air at 100–175 psi with enough CFM to anchor a small shop.

Recommendation: I recommend this compressor to serious DIYers and small to mid‑size shops that need real, sustained airflow without stepping up to a rotary screw. The combination of a 7.5‑hp, 1,725‑RPM motor, a two‑stage cast‑iron pump, and an 80‑gallon ASME tank delivers the performance and durability I want in daily use. If you can support the electrical, make room for it, and handle the straightforward setup and maintenance, it’s a solid long‑term anchor for a compressed‑air system.
