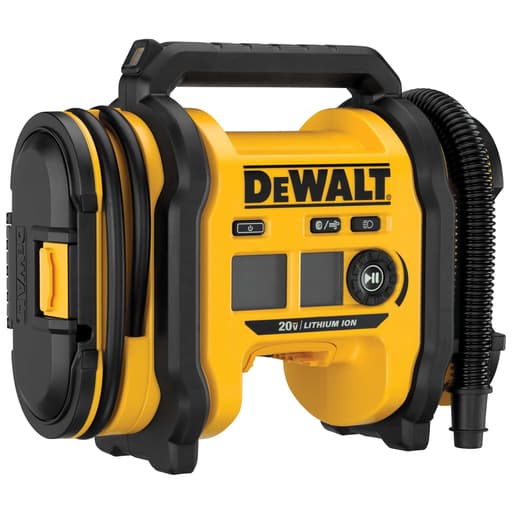

DeWalt 20V MAX Corded/Cordless Air Inflator

Why this inflator earned a spot in my trunk

A tire pressure light on a cold morning is all it took for me to start carrying a compact inflator everywhere. After a few months of regular use, the DeWalt inflator has settled in as the one I trust when I need quick, accurate top‑offs for cars, bikes, and the occasional air mattress. It’s compact, stable in use, and—most importantly—lets me set a target PSI and walk away while it handles the rest.

This isn’t a shop compressor and it doesn’t try to be. It’s a portable, multi‑power inflator built around convenience and accuracy. Used within that intent, it performs very well.

Setup and power options

The standout feature is flexibility: it runs off a 20V MAX battery, a 12V vehicle socket, or an AC adapter. In practice, I use three power sources in three distinct scenarios:

• 20V battery for fast grab‑and‑go top‑offs at home or trailheads.
• 12V DC from the car when I haven’t packed a battery, or when I’m already roadside.
• 110V AC in the garage when I’m doing a lot of inflating back‑to‑back.

Note that AC capability requires DeWalt’s separate power supply in many configurations; my unit did not include the wall adapter in the box. If AC is important to you, check the package contents or budget for the adapter. The included 12V DC cord and the onboard accessory tips (ball needle, tapered nozzle, Presta adapter) all store neatly on the unit.

Controls, display, and usability

The interface is simple: set your target pressure, screw on the threaded chuck, press start. The display shows both current pressure and your setpoint clearly, and the automatic shutoff stops the motor right at the target. I’ve cross‑checked against a good mechanical gauge and it’s consistently within roughly 0.5 PSI, which is excellent for a compact inflator.

The LED light seems like an afterthought on some tools, but on this model it’s positioned and bright enough to help you find a valve stem at dawn or on a dim roadside shoulder. Heavy rubber feet keep the unit from walking around the ground, and the handle is easy to carry without snagging the hoses.

Tire inflation performance

For passenger vehicles, it’s quick. Typical top‑offs from around 28–30 PSI to 35 PSI took under a minute per tire with a 20V 5Ah battery. Trailer tires are where you really appreciate the threaded chuck: bringing ST tires from the low 40s to mid‑60s PSI took a few minutes each, and the connection didn’t leak or pop off mid‑fill. Road bike tires to 90–100 PSI are no problem, and the included Presta adapter works fine as long as you thread it carefully.

You can push up to 160 PSI, but understand that higher pressure plus larger tire volume will take time. If your life involves frequent fills on high‑pressure, high‑volume tires (heavy trucks with E‑rated tires from near‑flat), a larger compressor will serve you better. For the common use cases—car, SUV, light trailer, bikes, and yard equipment—it’s right in the sweet spot.

High‑volume inflation and deflation

The high‑volume hose is handy for camping mattresses, river floats, and other inflatables. It moves a surprising amount of air for its size, and the dedicated deflation port is a small but appreciated feature: it pulls air out of a mattress evenly so you can actually roll it tight and fit it back in the bag. It’s not going to replace a shop blower, but for weekend duty, it’s great.

The chuck and hose system

The brass threaded chuck is my preferred connection because it eliminates the hiss and wiggle of cheap clip‑ons, especially on higher pressure fills. The tradeoff is speed on cramped valve stems; threading on and off takes an extra beat, and on some recessed rims it can feel a little fiddly. If you prefer a quick clip, an aftermarket clip‑on adapter solves that, but out of the box the secure connection and reliable sealing are worth the extra second.

Hose length is adequate for typical passenger vehicles when the unit is on the ground near the tire, and the storage channels keep everything tidy. Just make sure to seat the hose fully into its clip or it’ll pop loose in a bouncing trunk.

Noise, comfort, and stability

At a rated 77 dB, it’s not whisper‑quiet but it’s normal for a compact inflator. Think loud conversation rather than power tool shriek. The rubber feet do a good job keeping vibration in check, which is more important than it sounds—stable footing keeps the chuck from twisting the valve stem while inflating. I’ve used it on asphalt, gravel, and packed dirt without having it “walk” away.

Battery life and power draw

On 20V batteries, runtime scales predictably. A 2Ah pack will handle a handful of top‑offs but drains fast if you’re filling larger tires. A 5Ah or 6Ah pack is the sweet spot, providing plenty of capacity while keeping the unit compact. On 12V DC, I recommend running the vehicle so you’re not taxing the accessory socket or the car battery; like most inflators, it draws significant current when working hard. The upside is you’re never dead in the water if your 20V batteries are spent.

Durability and service

Build quality is on par with what I expect from DeWalt: solid plastics, rigid frame, and tight tolerances. After months of use and lots of trunk time, mine still looks and functions like new. As with any compact inflator, heat is the enemy, so I avoid back‑to‑back extended runs and give it a short cool‑down between big fills. There’s a 3‑year limited warranty, a year of service, and a 90‑day satisfaction guarantee, but note that beyond basic maintenance, there’s not much user‑serviceable inside. Treat it as an appliance, not a platform for tinkering.

Where it fits—and where it doesn’t

This inflator shines if you:
- Already run 20V MAX batteries and want a grab‑and‑go tire solution.
- Need accurate, set‑and‑forget top‑offs for family vehicles.
- Inflate and deflate camping mattresses and sports gear on weekends.
- Want a reliable 12V DC option as a backup on road trips.

You’ll want something else if you:
- Regularly fill large truck tires from near flat to high pressures.
- Expect to run continuous duty like a shop compressor.
- Require AC out of the box and don’t want to buy an additional adapter.

Small gripes

• AC adapter confusion: Many packages advertise AC capability but don’t include the adapter. It’s supported, but not always in the box.
• Threaded chuck speed: Secure and accurate, but slower to attach in tight spaces.
• Noise is typical, not offensive, but still noticeable in a quiet campground.

None of these are deal‑breakers for me, but they’re worth knowing before you buy.

The bottom line

This is the inflator I keep in the car and reach for at home. It’s compact, accurate, and versatile with battery, 12V, and optional AC power. The automatic shutoff is dead simple and trustworthy, the high‑volume modes make camping gear painless, and the overall build inspires confidence. It won’t replace a full‑size compressor for heavy work, and I wish the AC adapter were included more consistently, but within its intended lane it’s one of the most useful, low‑friction tools I own.

Recommendation: I recommend the DeWalt inflator to anyone who wants a reliable, portable solution for everyday tire maintenance and occasional high‑volume inflatables—especially if you already have 20V MAX batteries. It’s fast and accurate for passenger vehicles and bikes, packs smart features into a compact frame, and offers multiple power options for real‑world flexibility. If your needs lean toward frequent high‑pressure, high‑volume fills or you require AC out of the box, consider a different setup. Otherwise, this is a practical, confidence‑boosting addition to the trunk or garage.
