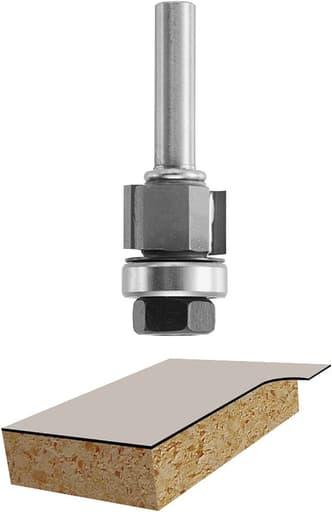

Bosch 5/8" Carbide Tip Bit with Bottom-Mount Ball Bearing Guide, 1/4" Shank

A compact flush-trim bit that punches above its weight

The first cut told me everything I needed to know about this Bosch trim bit. Set up in a compact palm router, I eased it into a strip of post-formed laminate and felt the cut settle in without chatter. The bearing tracked the substrate cleanly, the overhang vanished in one pass, and the edge came off ready for a quick scuff. For a small, 1/4-inch shank bit, it’s impressively composed.

I’ve used a lot of flush-trim bits for laminate and template work, and this one hits a nice balance of control, cut quality, and practicality for handheld routing.

Build and design

This is a 5/8-inch diameter flush-trim design with a bottom-mounted ball bearing that matches the cutter diameter. Specs are compact: a 3/8-inch cutting height, overall length of 1-15/16 inches, and two flutes. The 1/4-inch shank keeps it light and well-suited to trim routers, which is where I think it belongs. The cutting edges use micrograin carbide, and the geometry is what Bosch calls a control-cut design—essentially a slightly less aggressive bite that helps reduce grabbing and kickback at the start of a cut.

The bearing sits square and spins freely out of the box. Runout was negligible in my trim router collet—no visible wobble—so the cutter tracks true to the bearing, which is exactly what you want in a flush-trim bit.

Setup and compatibility

• Shank: 1/4 inch (ideal for compact routers; still fine in full-size routers with the right collet)
• Diameter: 5/8 inch
• Cutting height: 3/8 inch
• Flutes: 2
• Bearing: bottom-mounted, 5/8 inch diameter

Because the bearing is on the bottom, handheld routing works with the template beneath the workpiece. Flip it into a router table and you can run a template on top of the work, bearing above the cutters. It’s a straightforward, flexible configuration for most small template tasks and laminate trimming.

The 5/8-inch diameter strikes a sweet spot: big enough to be stable and resist deflection, small enough to navigate modest inside radii. For very tight curves, you’ll want a smaller diameter bit; for aggressive hogging on thick hardwood templates, you’ll want a 1/2-inch shank and longer cutting height.

Cutting performance

I tested this bit across several common tasks:

• Trimming plastic laminate and edge-banding on plywood carcasses
• Template-routing curved aprons from plywood and poplar with MDF patterns
• Flush-fitting small hardware recesses using a template and shallow passes
• Cleaning up veneer overhangs after vacuum pressing

In all cases, the two-flute design provided a nice balance of speed and surface finish. On laminate, the bit leaves a crisp, ready-to-burnish edge with no fuzzing on particleboard substrate. On plywood and poplar, the finish is clean enough that a light sanding is all that’s needed. I did not experience burning in maple or poplar at typical trim router RPMs (18,000–22,000), provided I kept the feed steady and avoided dwelling.

The control-cut geometry is noticeable in the way the bit enters the work. It’s not grabby, which makes it easy to keep the base plate planted and tracking—the bearing meets the template or substrate first, then the cutters come in smoothly.

Accuracy and surface finish

Because the bearing is the same diameter as the cutters, it produces a true flush reference. When the bearing is riding a well-finished template or the substrate under laminate, the resulting edge is dead even. On MDF templates, I got best results by sealing or waxing the template edge; this keeps the bearing gliding and prevents dust from packing the surface and “lifting” the bearing off-length.

Chip evacuation is good for a 2-flute; the relatively short 3/8-inch cutting height helps here, too—chips clear quickly rather than recirculating and abrading the cut. On melamine, it performed well with minimal chipping; blue tape over the edge and a light cleanup pass eliminate the occasional flake at the veneer layer.

Durability

After multiple cabinets’ worth of laminate trimming and a few afternoons of template work, the edge still feels sharp under a fingernail, and cut quality hasn’t fallen off. Micrograin carbide generally holds up nicely in this size class, and that matches my experience here. The bearing has stayed smooth with no detectable play. I make a habit of cleaning resin off the cutters with a pitch remover and adding a micro-drop of light oil to the bearing after each day—doing both will extend the life of any trim bit.

Where it shines

• Laminate trimming: The 3/8-inch cutting height is purpose-built for laminate and edge-banding overhangs. It’s exactly the right length for everyday cabinet work.
• Handheld template routing: With the template underneath and a palm router up top, it’s easy to balance and see your work.
• Router table work with small templates: Flip the workflow—template on top—and the bearing guides just as well.
• Small hardware and shallow recesses via template: The short cutting height keeps things controlled and reduces risk of overcutting.

Limitations to keep in mind

• Cutting height: At 3/8 inch, this is not a general-purpose pattern bit for deep flush trimming on thick stock. If you need to template-route 3/4-inch material in a single pass, look for a longer cutting length or a compression/pattern bit with top and bottom bearings.
• Shank stiffness: The 1/4-inch shank is appropriate for light to medium trimming. Push it too hard on dense hardwoods or wide contact areas, and you’ll feel the limits. In those cases, stepping up to a 1/2-inch shank increases rigidity and cut stability.
• Inside radii: With a 5/8-inch diameter, you’re limited to inside curves with at least a 5/16-inch radius. Tighter curves need a smaller bit.

None of these are faults; they’re simply the realities of a compact laminate/flush-trim tool.

Use and care tips

• Speed: In a trim router, 18,000–22,000 RPM is a good range for a 5/8-inch bit. Higher speeds can scorch resinous woods; lower speeds may cause chatter if your feed is too slow.
• Pass strategy: For fragile veneers or cross-grain plywood edges, take a very light climb-cut “kiss” pass to minimize tearout, then follow with a conventional pass to finish cleanly.
• Support: Tape or back up the exit side when trimming laminates to avoid chipping. Keep the router base flat and avoid tipping at corners.
• Template prep: Seal or wax MDF templates; the bearing will track smoother and your cuts will be more consistent.
• Maintenance: Clean pitch off the cutters regularly, and keep the bearing free of dust. If the bearing ever feels rough or loose, replace it; a dragging bearing will ruin work fast.

Value

At this price point, it’s easy to justify having a dedicated laminate/flush-trim bit in the trim router kit. You’re paying for sharp micrograin carbide, a precise, matched bearing, and a geometry that prioritizes control and surface finish. For cabinet installs, shop-built plywood templates, and general edging tasks, it delivers consistent, repeatable results without drama.

If your work leans toward heavy template routing in thick hardwoods or constant production, consider pairing this with a 1/2-inch shank, longer-length bit for the bigger jobs. For everything else, this compact bit carries a lot of the day-to-day load.

Bottom line

I keep reaching for this Bosch trim bit because it does the small stuff right: it tracks accurately, cuts cleanly, and stays predictable in a trim router. The short 3/8-inch cutting height and bottom-bearing layout are exactly what I want for laminate edges, veneer cleanup, and template-guided detail work, both handheld and at the router table. Edge retention has been solid, and the bearing has remained smooth with basic maintenance.

Recommendation: I recommend this bit for anyone doing laminate work, edge-banding cleanup, and light to medium template routing, especially if you rely on a compact router. It’s not the tool for deep pattern routing in thick hardwoods, but within its intended scope it’s reliable, precise, and good value.
