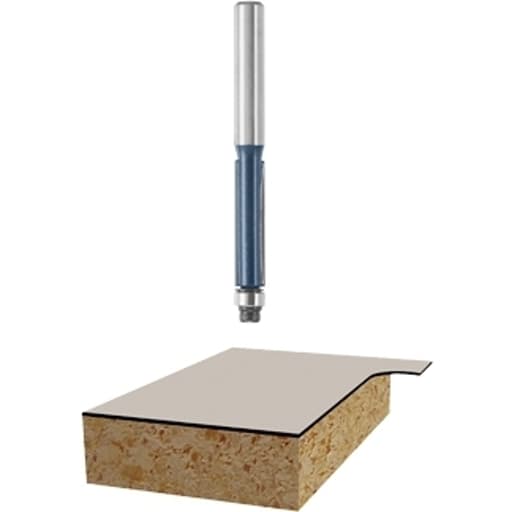

Bosch 1/4 in. x 1 in. Carbide-tipped 2-flute flush trim router bit

Why I reached for this bit

I grabbed the Bosch flush trim bit for a run of laminate countertops and a couple of template-routed plywood parts. I wanted something small enough to follow tight curves, stout enough to leave a clean edge on plastic laminate and hardwood ply, and compatible with my compact router. This bit checked the right boxes on paper: 1/4-inch shank, 1/4-inch cutting diameter, a full 1-inch of cutting height, and a bottom-mounted bearing. After several projects, it’s earned a place in my trim and template kit.

Build and geometry

The bit’s micrograin carbide tips and two-flute geometry are exactly what I like for laminate and pattern work. Two flutes are a practical balance—enough edge engagement for a smooth finish without starving chip clearance. The 1/4-inch diameter keeps the profile nimble in tight radii, and the 1-inch cutting height gives room to adjust where the edge engages, which extends life. The shank is hardened, runs true in my 1/4-inch collets, and I noticed no meaningful runout in either a palm router or mid-size router.

The bottom-mounted, shielded bearing is compact and well-fitted. I checked it for play by finger and under load against a maple template; it tracked square without chatter. The overall length is around 2.5 inches, which feels right—enough reach for common tasks without becoming whippy.

Setup and orientation

Because the bearing is at the bottom, the template goes below the work in a hand-held router. In a router table, you flip the logic: template on top of the work. That sounds basic, but it matters in a busy shop where you might switch between freehand trimming laminate on a countertop and template-routing in the table.

A quick setup note that pays off: leave at least 3/4 inch of shank in the collet, and then use the 1-inch cutting height to “index” where the cutters contact the work. I’ll start with the bit slightly high so only the lower portion is cutting. After a few projects, I raise the bit a hair so a fresh section of carbide does the work. It spreads wear and helps maintain finish quality.

Cut quality in real materials

• Plastic laminate: This is where the bit shines. After scoring and snapping, I leave 1/16 to 1/8 inch overhang and let the bearing ride the substrate. The edge comes off crisp with minimal fuzz. I run compact routers around 18,000 to 22,000 RPM and keep the feed continuous. Slower feed rates can heat laminate and cause streaking, so momentum matters. The bit didn’t smear contact cement, but I do clean the bearing afterward to prevent adhesive buildup.

• Veneer and plywood: On well-supported veneer, the cut is clean, especially when the bearing is contacting a smooth, sealed template. On plywood, glue lines are always a test for edge life. After trimming multiple cabinet sides and a couple of long arcs, the carbide still felt sharp with no burnishing. At the exit on cross-grain, a light climb pass can reduce chip-out—but only if you’re comfortable controlling the router. A safer alternative is to leave a whisker and block-plane the last fibers.

• Solid wood pattern routing: In maple and oak with tight templates, the bit does well if I respect the diameter. This is a slender tool, so I remove bulk with a jigsaw or bandsaw and treat the bit as a finesse tool, not a hogger. Trying to chew off 1/4 inch of hard maple will telegraph as vibration and possibly deflection. Multiple light passes are the right approach.

Bearing performance

The bearing is everything on a flush trim bit. This one runs smooth, stays cool, and didn’t shed shields or seize during extended sessions. I make a habit of checking it with a finger spin before every pass. If adhesive or dust gets in, a squirt of cleaner and a drop of light oil keeps it silky. The bearing’s compact size lets it navigate tighter inside curves without leaving chatter marks, especially on small circle templates.

Durability and maintenance

Micrograin carbide isn’t marketing fluff here. Edge life on abrasive sheet goods was solid. I ran two countertops and a handful of plywood template jobs before I felt any degradation in finish, and even then it was minor—more about burn risk if I dawdled than about torn fibers.

Carbide hates heat and grit, so routine helps:
- Keep feed moving to avoid burning.
- Use the whole 1-inch cutting height over time to spread wear.
- Clean the bit with resin remover if it looks gummed.
- Don’t store it rattling in a drawer—use a bit rack or sleeve.

Where it fits best

• Laminate work: If you regularly trim plastic laminate on countertops or panel edges, this bit is easy to recommend. The finish edge is ready for a micro-bevel with a file.
• Template and pattern work: Perfect for MDF templates, speaker cutouts, curved aprons, and repeatable parts in 1/2 to 3/4-inch stock.
• Compact router setups: The 1/4-inch shank is right at home in palm routers, which is often where laminate trimming happens.

Limitations to know

• Shank stiffness: A 1/4-inch shank with a 1-inch cutting height is inherently more flexible than a 1/2-inch shank bit. For heavy hardwood templates, especially with tall engagement, consider a 1/2-inch shank alternative.
• Bottom-bearing only: If you routinely need the template on top in a hand-held router, you’ll want a top-bearing flush trim bit or a bit with bearings at both ends.
• Not a hogging tool: This is for finishing cuts. If you try to remove big overhangs, you’ll feel chatter and risk surface defects. Leave a small, even overhang and let the bearing work.

Tips for best results

• Prep your blanks: Bandsaw or jigsaw within 1/16 to 1/8 inch of the line. The more consistent the offset, the cleaner the trim.
• Smooth templates: Any bump on the template transfers to the work. Seal MDF templates with shellac or thin CA to make them tough and slick for the bearing.
• Manage direction: Standard feed (against cutter rotation) is safest. For tear-out-prone areas, a controlled, light climb pass can reduce splintering—only if you’re experienced and the work is secured.
• Height discipline: Set the bit so the bearing contacts before the cutters, especially on thin laminates, to avoid diving into the substrate.
• Dust and heat: Keep the path clear. Heat is the enemy of laminate and carbide alike.

Value and alternatives

As a general-purpose flush trim bit, this Bosch holds its own. Spiral flush trim bits can leave an even cleaner edge in tricky grain thanks to shear geometry, but they cost more and are usually less forgiving on a small diameter. Compression flush trim bits excel at veneer and plywood, again at a premium. For everyday laminate and template work—especially in a compact router—the Bosch strikes a sensible balance of finish, durability, and price.

The bottom line

I keep the Bosch flush trim bit (84501M) in my primary kit because it does the fundamentals right: sharp micrograin carbide, a true-running 1/4-inch shank, a reliable bottom bearing, and a two-flute cut that leaves laminate and template-routed parts looking clean. It’s not a heavy-production, 1/2-inch shank bruiser, and it doesn’t pretend to be. Respecting its diameter and using it for finishing rather than hogging yields consistently good results.

Recommendation: I recommend this bit for anyone who trims laminate, works off templates, or needs a nimble flush trim option for a compact router. It’s dependable, leaves a quality surface, handles tight curves, and the 1-inch cutting height gives room to manage wear over time. If your work leans heavily into thick hardwood pattern routing or you require a top-bearing configuration for every job, look to a 1/2-inch shank or dual-bearing alternative. For the majority of laminate and pattern tasks, this Bosch is a smart, reliable choice.
