MegaCast Hand Free Universal Work Holder, Peg Clamp Base Vise Bench Tool Set for Jewelry Making with 8 Pin

First impressions and setup

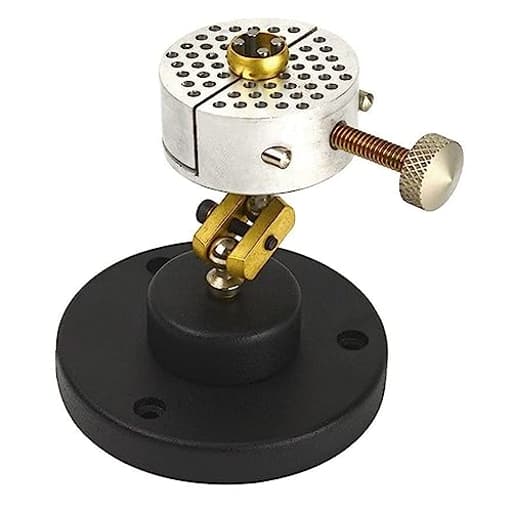

I put the MegaCast work holder on my bench expecting a small helper and ended up with a surprisingly capable third hand. Out of the box, the footprint is compact but the base has enough mass to stay put without bolting down. The head is a perforated plate that accepts eight included pins; the neck is an articulating column that lets you position the plate in just about any orientation and lock it down with a single knob. It arrived ready to use—no fiddly assembly beyond inserting the pins where I needed them.

The basic idea is simple: arrange the pins around your workpiece, tighten the neck, and you’ve got hands-free access for soldering, filing, engraving, model detailing, or light drilling. In practice, that simplicity is the appeal. It doesn’t try to be a machinist’s vise or an engraving block. It’s a peg clamp, and it does that job well.

Build quality and mechanics

The hardware feels solid for the category. The guide mechanism on the head moves smoothly, and the articulation locks down reliably with a quarter turn. I could reposition the head with one hand, then snug the knob the rest of the way with the other. Once tightened, I didn’t experience creep or drift, even while pushing a needle file or scribing fine lines.

Fit and finish are more “workmanlike” than premium. Edges are clean, the silver finish is even, and nothing rattles. It’s not a showpiece, but it’s built to be used and knocked around on a bench. Importantly, the base has enough weight and a low center of gravity, so it resists tipping when the head is angled out over the edge.

The pin system: versatile, with room to tune

The clamp face accepts the included pins in a grid, so you can create a custom cradle around irregular shapes. For jewelry, I’ve used four pins to hold bezels and ring shanks; for scale models, two or three pins and a strip of tape kept armor plates and subassemblies steady while I painted or decaled. On small cabochons and flat pieces, setting opposing pin pairs gives you a surprisingly firm, non-marring hold.

As with most universal work holders, the pins are smooth metal. That’s great for durability but can be slippery on slick plastics or polished woods. A simple fix: slip heat-shrink tubing over the pin ends or add small rubber caps. The added grip is dramatic, and it protects delicate finishes. For extra-soft materials, leather scraps or painter’s tape on the contact points work well.

If you want a tighter fit in the plate, you can cut replacement pins from round rod stock or old drill shanks that match the hole diameter. Measure with calipers, cut to length, chamfer the ends, and you’ll have snug, wobble-free pins. I’ve also wrapped a turn of PTFE tape around a pin to fine-tune fit—quick and reversible.

In use: jewelry, models, and light carving

For jewelry tasks, this shines as a general-purpose holder. Soldering small jump rings and tabs is easier when you can angle the piece toward the flame and then flip it to inspect the backside. The head rotates smoothly, and the lock stays put. Heat does travel through the metal pins, so I keep a ceramic soldering pad or a bit of fiber blanket between the work and the plate for protection. Flux and pickle wipe off the finish without trouble.

During filing and engraving, the stability impressed me. You can take precise strokes without the work rocking or the head sagging. It’s not a substitute for a full engraving block if you do heavy hammer-and-chisel work, but for bur work, stippling, and fine scribing, it’s steady and predictable.

On the hobby side, it’s a great third hand for scale modeling and small electronics. I used it to hold a plastic panel while drilling micro-holes for LEDs; the head angled nicely so the bit cleared the base, and the pins with tubing gripped the plastic without leaving marks. For rock or shell drilling, it holds small pieces well enough for low-pressure work with a rotary tool and diamond bits. If you’re pushing hard or trying to drill larger, slick, conical objects, you’ll want additional grip aids (rubber caps, leather pads) or a different fixture.

Ergonomics and access

Being able to rotate, tilt, and lock quickly is the reason to choose a work holder like this over a simple bench vise. I could bring the work to eye level, tilt it to catch the light, and get the tool angle I wanted without contorting my wrists. The plate’s open design means you can pass a burr or bit between pins, and there are enough holes to reconfigure on the fly.

One ergonomic note: because the head sits above the base, very tall or heavy parts can make the setup top-heavy at extreme angles. That’s common with this style, and the fix is straightforward—lower the angle, move the piece closer to the center, or support the far edge with a bench stop.

What it’s not

This is not a high-mass engraving block for hammer strikes, nor a machinist’s vise for high-torque cuts. The pin system is optimized for light-to-moderate clamping pressure and fine work. Very small, ultra-slick organic shapes (tiny acorns, oiled seeds) can be fiddly without grip mods. If you routinely need to hold large wooden chunks or apply serious torque, a traditional vise or a larger ball vise will make more sense.

Durability and maintenance

After weeks of use, the mechanism remains tight and the finish looks good. Wipe it down after soldering; flux residues can attract corrosion over time. A tiny dab of light oil on the articulation once in a while keeps motion smooth. If you cut custom pins, label them and store with the tool so you always have the grip you prefer.

Because the pins are consumable in a sense, I recommend keeping spares. I’ve bent a pin by accident during a hurried setup—not a big deal, but having extras avoids downtime.

Value and alternatives

There are fancier solutions—engraving blocks, premium ball vises, and purpose-built modeling fixtures—but they cost several times more, take up more space, and are overkill for many tasks. This work holder hits a sweet spot for budget, footprint, and versatility. It’s a better bench companion than a pair of “helping hands” for most precision work, and it punches well above its size once you add grippy pin covers or build a set of custom pins.

Tips to get the most out of it

• Add heat-shrink or rubber caps to the pin tips for grip and surface protection.
• For heat work, use a small soldering pad on the plate and keep pins slightly back from the flame.
• Cut a few custom pins from rod stock that fit tightly in the holes for zero play.
• Use leather or painter’s tape between pins and polished surfaces to avoid marring.
• Don’t over-tighten the articulation knob; firm is enough and extends the mechanism’s life.
• Keep a small tray for pins; the eighth one will try to escape.

Recommendation

I recommend this work holder to jewelers, modelers, and hobbyists who need a compact, stable, and highly adjustable way to secure small parts. It locks solidly, offers excellent access at odd angles, and becomes even more capable with simple, inexpensive pin modifications. If your work involves heavy strikes, high-torque milling, or large pieces, you’ll outgrow it quickly, but for the precision end of bench work, it’s a reliable, versatile tool that earns its spot on the bench.
