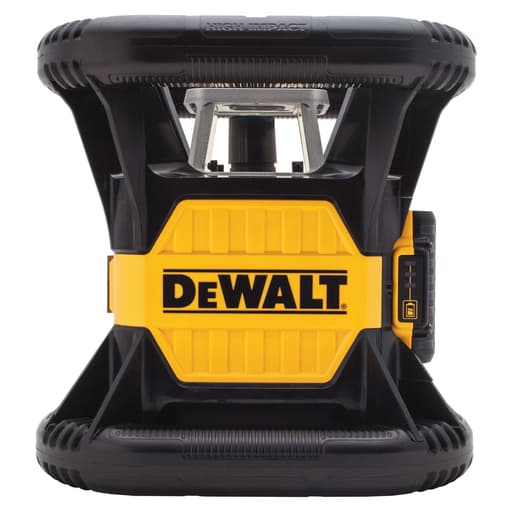

DeWalt 20V MAX Red Rotary Tough Laser

I put the DeWalt rotary laser to work across a few real jobs: slab prep and pad grading outdoors, track layout for a drop ceiling, and some long-run fence alignment. In that mix of dirt, rebar, and drywall dust, it proved to be a capable, jobsite-tough tool with a couple of notable caveats you’ll want to plan around.

Setup, Build, and First Impressions

The laser comes kitted with a 20V MAX battery and charger, detector with bracket, ceiling bracket, target card, enhancement glasses, a 5/8" tripod adapter, and a TSTAK case. The case is excellent—everything has a home, it stacks with other DeWalt boxes, and it’s rugged enough to toss in the truck. The unit itself is compact and light (about 2 lbs), with a protective overmold and sealed ports. IP67 dust and water protection isn’t marketing fluff; I ran it in a steady drizzle and later rinsed off the slurry without a hiccup.

Self-leveling happens quickly and reliably within its ±5° range, usually in well under a minute. Buttons are large and glove-friendly, and status icons are clear. Dual‑axis slope mode is there when you need it for driveways or drainage runs, and the up/down plumb spots make vertical transfer easy when you’re laying out grid or dropping plumb through ceiling tiles.

One early note on mounting: the included 5/8" tripod adapter is plastic and introduces a tiny bit of flex. On a heavy survey tripod you may see a whisper of wobble if you bump the setup or in gusty wind. It’s manageable, but for critical pours I’d recommend a rigid tripod and double-checking that the adapter and clamp are snugged down hard, or substituting a beefier adapter if you have one.

Accuracy and Stability

DeWalt rates the unit at ±1/16 in. at 100 ft, which aligns with what I measured. I ran a standard four-point “box” test at 100 ft and again at 200 ft, and it stayed honest. At 300 ft, I saw a hair more drift, but nothing that would push a typical slab or formwork out of tolerance. Self-leveling recovers quickly after a disturbance, and beam stability improves if you drop the rotation speed.

Speaking of speed, you get 150, 300, 600, and 1200 RPM. For most receiver work, 300 or 600 RPM struck the best balance of signal strength and update speed. 150 RPM gives you a brighter spot if you’re trying to visibly find the line indoors; 1200 RPM is smooth for machine detection or when you need fast sweeps, but it dims the spot and can make detection pickier in bright light.

Range and the Detector

Indoors, the red Class 3 beam is visible to about 200 ft as specified, though practical visibility depends on ambient light and surface reflectivity. In bright sunlight, like all red lasers, the visible line disappears quickly and you’ll rely on the detector. DeWalt claims up to 2000 ft with the detector. I had no trouble doing grade checks out to roughly 800–1000 ft line-of-sight. Beyond that, the receiver started to hunt a bit more, especially at higher rotation speeds and in full midday sun.

Two tips improved consistency:
- Drop to 300 RPM outdoors for a stronger signal at distance.
- Shade the detector face with your hand or the rod if you can; it reduces stray light and false chirps.

The detector bracket is solid and clamps well to a grade rod, but the receiver’s “sweet spot” felt a little narrow at long range. Expect to dial in your technique—move slowly and square to the beam—to avoid overshooting the center.

Controls and Workflow

The interface is straightforward: power, rotation adjustments, slope enable, and beam/plumb selection. Audible tones communicate leveling status, and lock‑out for slope is clearly indicated so you don’t accidentally run a level reference while in slope mode. I appreciate that DeWalt kept the control set minimal; I didn’t need a manual to get started, and switching from a level plane to plumb up/down for ceiling transfer took seconds.

For ceiling track, the up/down plumb spots were accurate and bright enough in typical indoor lighting, and the included ceiling bracket is handy for temporary hangs. The target card and glasses help, but the beam is red, not green—if you mostly do interior finishes, a green-beam rotary is easier on the eyes over distance.

Battery Life and Ecosystem

Run time is excellent. DeWalt claims up to 96 hours, and while I didn’t attempt a continuous multi-day run, I made it through three long days of intermittent use on a single 20V pack without anxiety. If you’re already on the DeWalt 20V MAX platform, that’s a major convenience win: one charger, hot-swap to a fresh battery if you forget to charge, and you’re back to work in seconds. The laser sips power, so even a compact pack gets you plenty of runtime.

Durability

IP67 sealing matters on real sites. I subjected the laser to a windy, dusty grading day and later to wet conditions, and it shrugged both off. The housing and top cage protect the glass well, and the tool didn’t lose calibration after a minor knock on the tripod. That said, the stability of your setup is only as good as the weakest link. With the plastic adapter in play, a hard bump can translate a bit more than you’d like. Treat the mount with care, or upgrade it.

What I Liked

• Fast, reliable self-leveling within a generous ±5° range
• Accurate to its spec; trustworthy for slabs, forms, and interior layout
• Long battery life and 20V MAX ecosystem compatibility
• IP67 rating—dust and rain aren’t project killers
• Useful dual-axis slope and up/down plumb spots
• Thoughtful kit with a rugged TSTAK case and practical accessories
• Multiple rotation speeds for dialing in beam visibility and detection

What Could Be Better

• Red beam is hard to see outdoors; plan on using the detector for anything beyond short checks
• Detector gets finicky at very long ranges or in harsh sunlight; slower RPM and better shading help
• The included plastic 5/8" tripod adapter can flex slightly, reducing stability compared to a metal mount
• No true long-range “high visibility” mode beyond speed changes; a stronger receiver or green beam would boost outdoor confidence

Who It’s For

If you’re a general contractor, concrete crew, or remodeler who splits time between interior and exterior work, wants reliable accuracy, and already runs DeWalt 20V tools, this laser fits neatly into the kit. It’s also appealing if you work in messier conditions where IP67 isn’t optional. If your days are mostly bright-sun, long-run grading with lots of rod work past 1000 ft, a green-beam model or a system with a more sensitive receiver and a stiffer mount may suit you better.

Recommendation

I recommend the DeWalt rotary laser with some qualifiers. It’s accurate, fast to set up, well protected against jobsite abuse, and runs seemingly forever on a 20V MAX pack. For general layout, slab prep, ceiling work, and mid-range site tasks, it’s a dependable tool that streamlines the day. However, two issues hold it back from being a universal pick for heavy outdoor grading: the red beam’s limited visibility and a mounting setup that can flex if you’re not careful. If you pair it with a stout survey tripod, keep the rotation speed at 300–600 RPM, and refine your detector technique, you’ll get solid results. If you routinely push long distances in bright conditions or demand rock-solid stability from the mount out of the box, consider alternatives with a green beam, a higher-end receiver, or a metal base. For most mixed-use contractors—especially those already invested in DeWalt 20V—this is a capable, durable rotary that earns its keep.
