DeWalt 20V MAX Tool Connect Red Tough Rotary Laser Level

First impressions and setup

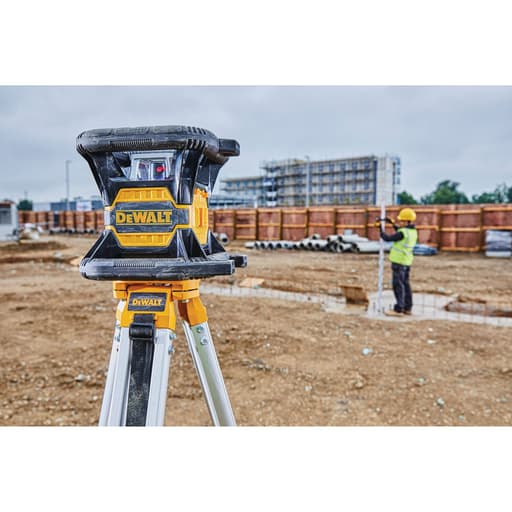

I put the DW080LRS to work on a small site package—pinning grade for a concrete pad, aligning trench runs, and transferring control to a mezzanine. Out of the TSTAK case the kit feels complete: rotary laser, detector with bracket, 5/8 in. tripod and bracket adapters, ceiling bracket, target, enhancement glasses, a 20V MAX battery, and charger. Everything has a dedicated spot, and the case has enough room for a compact tripod or extra battery if you want to stash one.

The unit itself is compact and light for a rotary (about 2 lb). The housing and gaskets inspire confidence, and the 5/8 in. base threads fit my site tripod and wall/column brackets without drama. Setup is fast: park it roughly level, power on, and the self-leveling routine locks in within its 5° window. The controls are simple—speed, scan, and slope are each a button with clear indicators.

Leveling, slope, and controls

For general layout I ran it in standard self-leveling mode and used the dual-axis slope mode when checking fall on a long run of drainage pipe. The slope function is intuitive: you can lock in one or both axes and it holds reliably, so long as the tripod stays planted. Scan mode (15°, 45°, 90°) is handy indoors for establishing a bright arc on a wall without flooding the room, and outdoors for focusing the beam where you actually need to pick it up with the detector. The four speed settings (150–1200 rpm) cover the normal range—slower speeds are brighter to the eye, faster speeds are better for detector work or reducing flicker.

I appreciate that the unit throws both a rotating plane and plumb up/down spots. The plumb dots made quick work of transferring column lines up to a ceiling grid and locating anchor points without swapping tools.

Visibility and range

This is a red-beam rotary laser, and that matters. In shaded interiors the line is visible to the eye—especially with the enhancement glasses—though I still prefer the detector for precision. In daylight, you’ll be using the detector almost all the time. That’s not a knock; it’s the reality with red diodes and bright jobsites. With the detector the usable range is excellent. I had no problem picking up the beam at distances approaching 1,000 ft across an open lot; the spec tops out at 2,000 ft with a detector, and based on how cleanly the detector locked, I’d expect that to hold with a stable setup and good aim.

Accuracy is rated at ±1/16 in. at 100 ft. I ran a simple level loop: set a benchmark, shoot four corners at roughly 120–150 ft, rotate the instrument 180°, and recheck. The closure was well within spec, and I didn’t see drift over a couple of hours as temperatures climbed late morning.

Tool Connect and alerts

Bluetooth connectivity is more useful than I expected. Pairing with the Tool Connect app was straightforward, and once paired, I kept my phone in my vest. If the unit is bumped, changes slope, or stops rotating, the app throws a notification. On one pour morning a crew nudged the tripod while placing rebar; the phone pinged and we verified level before the concrete showed up. That kind of passive monitoring is cheap insurance.

It’s worth noting that, in my use, the app is about monitoring rather than remote control. I could see status and alerts and confirm the unit was operating, but I didn’t change rotation speed or scan angle from the phone. I’m fine with that—fewer chances to misconfigure the instrument—but if you want full remote adjustments, plan on making them at the head.

Durability and weather

On the durability front, the DW080LRS is genuinely jobsite-ready. IP67 protection means dust isn’t sneaking in, and it shrugged off a light rain and mud splatter without complaint. The overmold does its job, and the detector/brackets feel robust rather than flimsy. The published drop spec is a bit inconsistent depending on where you look (1 m vs. 2 m), but in practical terms, it took the normal knocks of daily site use without developing quirks or calibration issues.

Cold weather behavior deserves a callout. Early starts on a couple of crisp mornings had the unit balky—below roughly the mid-50s Fahrenheit, I saw it shut down or refuse to spin until warmed up. Once I brought it into the truck cab for a few minutes, it would run fine, but left on a cold aluminum tripod, it repeated the behavior. That’s consistent with a protective temperature sensor inside the instrument. If you routinely work in cold climates or start before sunrise in shoulder seasons, factor in a plan: keep the laser in the cab until just before use, wrap a hand warmer around the base for the first few minutes, or stage it in a case between setups. For temperate or indoor work, it’s a non-issue; for winter civil work, it can be frustrating.

Power and runtime

One of the biggest advantages here is the power platform. Running on a 20V MAX battery means it shares chargers and packs with a wide swath of tools many crews already own. The claimed 96-hour runtime is generous, and while I didn’t attempt a multiday continuous run, I easily got through several long days between charges at moderate rotation speeds with detector use. Only one battery is included; adding a second pack to the case is cheap insurance if you’re on remote sites or can’t afford downtime.

Mounting and accessories

The included brackets and adapters cover most scenarios. The 5/8 in. thread adapters and ceiling mount let you go from tripod to column to overhead quickly. The detector’s clamp has enough bite for gang forms and struts without slipping. I would have liked a dedicated wall mount with micro-adjust for vertical alignment, but the included hardware got me there with a little patience.

What I’d change

• A clear, printed operating temperature range on the housing would set expectations and save head-scratching on cold mornings.
• A second battery in the kit would match the long runtime and avoid the need to raid another case.
• Optional remote adjustment via the app would be useful for some setups, even if it remained disabled by default.
• A green-beam variant would help crews who split time between interior layout and exterior pick-up without a detector, though it would likely trade some runtime.

The bottom line

As a daily-use rotary laser, the DW080LRS hits the marks that matter: fast self-leveling, reliable dual-axis slope, excellent detector-driven range, and accuracy that matches its spec. The Tool Connect alerts add a useful layer of protection against accidental bumps, which, in practice, is exactly when you want a “smart” feature to step in. The build feels right for jobsite abuse, the IP67 rating isn’t window dressing, and leveraging the 20V MAX battery ecosystem is a practical advantage for crews already on yellow packs.

The caveat is environmental. In cool-to-cold conditions, the unit’s temperature protection can halt operation until it warms up. If your work lives in freezing temps or predawn winter starts, that behavior can be a workflow breaker. For indoor trades, temperate climates, or teams that can keep the instrument warm en route to setup, it’s manageable with simple habits.

Recommendation: I recommend this rotary laser to concrete, site, and interior layout crews who primarily work in moderate conditions and rely on detector-based workflows. It’s accurate, tough, and thoughtfully equipped, and the smart alerts meaningfully reduce rework risk. If your calendar is full of cold-weather exterior work, I’d look hard at the operating temperature question—or plan for a warmup routine—before standardizing on it.
