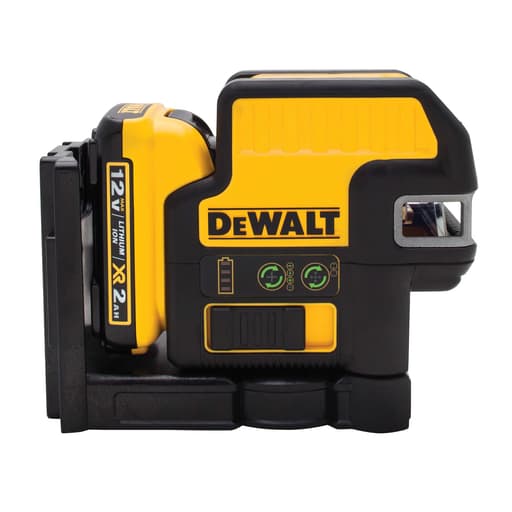

DeWalt 12V MAX 2-spot cross-line green laser

What I learned after a few weeks on site

I put this DeWalt green cross-line/spot laser to work across a handful of jobs—cabinet runs, backsplash layout, pipe hanger locations, and a batch of ceiling control lines—and it’s proven to be a thoughtfully built, jobsite-ready tool. Green diodes, a rechargeable 12V pack, and a cross line with two plumb spots in one body make it versatile. It isn’t perfect, but it’s the kind of laser that lets you leave two or three other tools in the truck.

Setup, mounting, and first impressions

Out of the case, the kit is complete: 12V battery, charger, ceiling bracket, target card, enhancement plate, enhancement glasses, and a TSTAK-compatible case that stacks with other DeWalt boxes. The housing is rubber overmolded, the pendulum locks solidly for transport, and the integrated magnetic bracket is genuinely strong. I routinely stuck it to steel studs and ductwork without a shim or a prayer; it held on.

Two thread options—1/4-20 and 5/8-11—mean any photo or survey tripod you already own will work. I often prefer a tripod for finish work because micro-adjust bases make nudging the line over a hair easier. This unit doesn’t include a micro-adjust turret, so plan on a tripod with fine adjust if you need precise sweeps. The included ceiling bracket is useful for T-bar ceilings and fast temporary overhead setups.

The controls are simple: separate buttons for lines and spots, plus a pulse mode for working with a receiver. The pendulum lock doubles as a quick way to throw it into manual mode for tilted lines (just remember it’s not self-leveling when locked). Out of level, the lines flash clearly—handy when you’re on uneven decking.

Visibility and range

Indoors, the green lines are bright and crisp. On matte walls and standard drywall, I could easily work 50 to 60 feet without squinting, and up to around 100 feet in a dimmer interior. On glossy tile and stainless, there’s the expected haloing you get with bright green lasers, but the line is still plenty readable.

Outdoors in full sun, the bare eye sees very little—no surprise for a Class 2 visible laser. That’s where pulse mode and a receiver earn their keep. With a receiver (not included), I could reliably pick up the line out to roughly 150–165 feet, which aligns with the spec. Early mornings and shaded facades are your friends; with the sun low, I could make visual placements at long distances without a receiver, but I wouldn’t plan exterior layout around that window.

The two plumb spots are bright and precise. They’re excellent for transferring points from floor to ceiling—think downlights, posts, or pipe penetrations where “above this exact anchor” matters. I found them faster than swinging a plumb bob in tight spaces.

Accuracy and self-leveling

The rated accuracy is ±1/8 inch at 30 feet, which is standard in this class. Checked against a known-good level and a long straightedge over a 30-foot hallway, the horizontal line stayed within that tolerance. The vertical line tracked plumb cleanly up a 10-foot span, and the up/down spots landed where expected when I cross-checked with a chalk drop. For cabinet runs and trim alignment, it’s well within what I need. For finish tile layouts where joint alignment down a long room matters, the line uniformity and thickness remain consistent enough to lay to the line rather than chase it.

The self-leveling mechanism is quick to settle—usually a second or two. On vibration-prone decking, it stabilized after brief interruptions without hunting, which helps when people are moving around you.

Battery and runtime

The 12V rechargeable pack is the upgrade I wanted. No scrambling for AAAs at 3 p.m. With one 2.0 Ah pack, I got a typical workday of intermittent line use—about eight hours of on-and-off cross-line operation—without needing a charger. Running only the dots stretched things out considerably, which matches the expectation that dots draw less power than lines. If you’re leaving both lines on all day for a crew to reference, bring a spare 12V pack or a charger. Green diodes tend to draw a little more than red; the convenience of a shared 12V platform more than makes up for it.

Durability and jobsite manners

IP65 and a 2-meter drop rating are not marketing fluff here. The overmolded shell shrugs off grime, and a light rain and ceiling dust didn’t faze it. I didn’t attempt a two-meter drop for science, but it did get knocked off a step ladder (about 3 feet) and stayed in calibration. The kit, at 6.5 pounds listed, isn’t lightweight. The upside is a low, stable base; the downside is a bulkier case than some compact lasers. I’ll take the durability trade-off.

Magnets deserve a second mention: they’re strong enough to trust on studs, but high placements always get a tether from me. One accidental kick can turn a good day into a calibration check.

Lines, spots, and workflow

Having both a cross line and two plumb spots in a single body changes how you stage work:

• Cabinet and trim: Set the horizontal line where you want it, bring verticals into corners, and keep the spots off when you don’t need them to save battery.
• Tile backsplashes: The vertical line is straight enough to set your first course and check reveals; a target card helps with glossy surfaces.
• Pipe and conduit: The vertical line establishes runs, while the plumb spots make hanger placement straightforward from floor to deck.
• Joists and supports: With a receiver, you can carry the line factually across long bays and poor lighting.

The full-time pulse mode is key for coexistence with a receiver; you don’t need to toggle in and out every time you step outside or stretch a long interior run.

Ergonomics and usability

The interface is as simple as it needs to be. Dedicated line and spot toggles mean you’re not cycling through eight modes to get a single vertical. The battery slides in positively and has a predictable indicator. The pendulum lock is stiff enough to inspire confidence during transport. If I had a nitpick, it’s the lack of a fine adjustment knob for sweeping the line a millimeter at a time on the bracket—again, a tripod with a pan head solves it.

What could be better

• Outdoor visibility without a receiver is limited (true for nearly all Class 2 lasers). Budget for a compatible receiver if you work in daylight.
• No micro-adjust on the base. It’s workable, but precision sweeps are easier with a tripod head or a separate fine-adjust mount.
• The kit is not light. The durability and TSTAK case are great, but it’s bulkier to carry than some compact alternatives.
• Price sits at the higher end for a cross-line with spots. You’re paying for the 12V battery system, green diode, and jobsite build; that still may be overkill for infrequent DIY use.

Who it’s for

• Trades: Remodelers, finish carpenters, plumbers, HVAC, and electrical crews who want a single tool for line work and point transfers, with a rechargeable pack and jobsite durability.
• General contractors: A reliable layout reference on interiors, tenant improvements, and punch work, with the option to stretch outdoors via a receiver.
• Serious DIYers: If you already run DeWalt 12V tools and want green visibility and ruggedness, this fits. If you only hang cabinets once a year, a red cross-line might be more economical.

Recommendation

I recommend this DeWalt green cross-line/spot laser for pros and serious remodelers who need a durable, flexible layout tool with rechargeable convenience. It delivers accurate lines and bright plumb spots, mounts easily on steel or tripods, stands up to dust and the occasional knock, and integrates with a receiver for long runs. The trade-offs—weight, price, and the absence of a micro-adjust base—are real but reasonable for the performance and build. If your work lives mostly indoors or in mixed conditions, it’s a dependable, all-in-one laser that streamlines layout and keeps you moving. If you’re strictly occasional use or budget-sensitive, a simpler red cross-line may be enough; otherwise, this is the one I’d carry.
