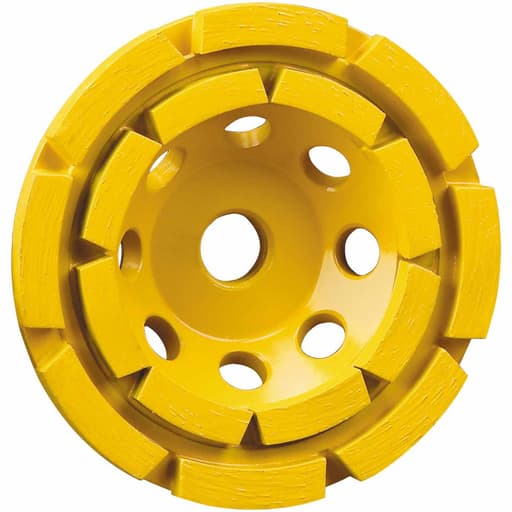

DeWalt 4-1/2 in. Double Row Diamond Cup Wheel

A compact, aggressive grinder wheel that earns its keep

I reached for the DeWalt cup wheel to tackle two common concrete chores: knocking down a small sidewalk trip-lip and prepping a foundation wall for crack repair. In both cases, this 4-1/2 inch, double-row diamond wheel did exactly what I needed—fast, controllable stock removal with predictable results—without burning through the segment life or my patience.

The double-row layout and high diamond concentration are the headliners here. You get a wheel that bites hard, stays smooth, and keeps its edge longer than bargain options. It isn’t a finishing tool, and it won’t hide a wobbly hand, but if you need to flatten, level, or expose sound substrate, it’s the right style of aggressive.

Compatibility and setup

• Size and arbor: It’s built for 4-1/2 inch angle grinders with a 5/8-11 threaded arbor. It threads directly on—no flange nut needed. A typical 10,000–11,000 RPM grinder is within the wheel’s 13,000 RPM rating.
• Guard and shroud: Use a cup-wheel-compatible guard. If you’re planning to control dust (and you should), a purpose-built dust shroud that fits a 4-1/2 inch cup wheel keeps the mess manageable and visibility high.
• Mounting: Mine spun true out of the box. If you feel vibration, check for debris on the spindle face and make sure the wheel seats fully.

Grinding performance

For a wheel this compact, removal rate is impressive. The double-row (16-segment) pattern spreads contact across more diamond, so it runs smoother than a single-row turbo while still removing material aggressively. On a sidewalk lip, I could feather the high edge down in controlled passes without the chatter or trenching you can get from single-row wheels. On the wall prep, it chewed through old paint and laitance quickly and left a fresh, toothy surface that took epoxy nicely.

A few observations from use:
- Control: The wheel likes to run flat with a slight bias on the leading edge. Tip it too far and you’ll gouge. Keep it moving; pause in one spot and you’ll dish the concrete.
- Heat: The segment and body design shed heat well. I didn’t see any glazing. If you notice the wheel skating, dress it on a soft concrete block or a sacrificial paver to expose fresh diamond.
- Edge work: Near walls or step risers, the cup diameter and the grinder guard limit how close you can get. Expect to leave a small strip untouched and finish that with a smaller wheel or hand tool.

Dust management (and why I avoid water here)

Dry grinding concrete generates a lot of silica dust. This wheel is designed for dry use, and that is how I ran it. A tight-fitting shroud and a HEPA-rated vac make a huge difference; even so, if you move too fast, you can outpace a small shop vac. Slow your travel, overlap your passes, and let the vac keep up.

I don’t use water with a corded angle grinder and a dry-use cup wheel. If you plan any moisture control, do it safely: use the right wet-compatible equipment and GFCI protection. In most cases, a good shroud/vac pairing is the safer and tidier route.

Surface quality and finish

This wheel leaves a coarse, uniform profile—great for adhesion, not a decorative finish. Expect visible swirl marks, which is exactly what you want before coatings, mortar, or patch compounds. If you need a smoother finish, follow up with a finer-grit diamond pad or a flap disc once you’ve reached grade. For leveling, I was able to blend the transition cleanly, but you still see the grind texture until it’s coated or weathered in.

Ergonomics and user experience

• Vibration: Minimal when mounted properly. The double-row layout helps reduce the hammering feel you get with sparse segment wheels.
• Noise: Loud, even by grinder standards. This is a “double up on hearing protection” accessory.
• Visibility: With a dust shroud, sightlines are limited, but the wheel tracks predictably. I marked my target depth and width and worked to the lines; the wheel made it easy to maintain a straight bevel on the sidewalk edge.

Durability and wear life

DeWalt’s high diamond concentration and heat-treated body aren’t just brochure copy. After tackling a couple of serious tasks—coating removal on a wall and leveling a lip—my segments still have a lot of life. Wear is even, with no segment cracking or chunking. I avoided rebar contact; if you hit steel, you’ll spark and accelerate wear. For concrete, mortar, block, and stone pavers, this wheel feels purpose-built.

A quick tip: if you see the wheel start to polish the surface rather than cut, dress it on a softer material to bring new diamond to the surface. That’s the difference between “it stopped cutting” and “it keeps going like new.”

Where it shines

• Flattening small slab heaves and trip hazards
• Removing paint, thinset ridges, and surface contamination
• Prepping for epoxy injections, overlays, and patch compounds
• Exposing aggregate slightly to get past weak, dusty laitance

The double-row format is the sweet spot for these jobs—more forgiving than single-row turbo wheels yet still fast. It’s a professional-feeling accessory that doesn’t demand surgeon-level finesse to get good results.

Limitations and caveats

• It’s a grinder, not a cutter. Don’t expect clean score lines or corner cuts.
• It can remove material quickly—too quickly if you lean on it. Use two hands and a light touch.
• Tight inside corners and right up against vertical obstructions are awkward due to the cup’s geometry and guard clearance.
• Coarse finish only. Plan a follow-up step if you need a smoother surface.
• Dust collection is essential. Without a decent vac and shroud, the mess is real and a health hazard.

Practical setup tips

• Mark your grind area clearly and establish reference lines; the wheel follows a plan well.
• Run the grinder at a moderate to high speed if variable-speed is available. There’s no need to pin it at maximum RPM to get good cutting.
• Let the diamonds do the work. A light feed pressure gives you a flatter, more professional result and extends wheel life.
• Keep a stiff brush handy to clear fines from your lines and check progress.
• If your vac can’t keep up, pause and let it catch up rather than racing ahead through a dust cloud.

Value

You can find cheaper double-row wheels, but the DeWalt cup wheel earns its keep with consistent balance, predictable cutting, and longer life. If you only need to grind a single small spot, a budget wheel might do. If you plan to prep surfaces with any regularity—or you care about smooth operation and durability—this one is a sensible mid-priced upgrade.

Recommendation

I recommend the DeWalt cup wheel for anyone who needs reliable, controlled concrete and masonry grinding with a 4-1/2 inch angle grinder. It removes material quickly without fighting you, runs smoothly thanks to its double-row design, and holds up to real work. Pair it with a proper dust shroud and a capable vac, use a light hand, and you’ll get clean, predictable results whether you’re flattening a slab edge or prepping a wall for repair. The only reasons to pass are if you need ultra-fine finishing or edge-to-edge grinding in tight corners—neither is the job this wheel is designed to do. For everything else in the “prep and level” category, it’s the right tool.
