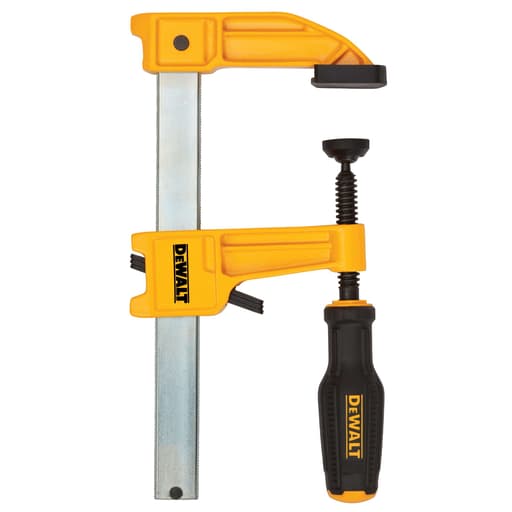

DeWalt 6 in. Heavy-Duty Bar Clamp

Why this clamp earned a spot on my rack

A 6-inch bar clamp is a shop staple—small enough to maneuver with one hand, stout enough to pull joints tight, and versatile enough to live on almost every bench setup. After a few weeks of using this DeWalt clamp on casework, jig building, and quick glue-ups, I’ve got a solid sense of where it shines and where it needs a nudge to be its best.

Design and build

This is a traditional F‑style bar clamp with a 3-piece clutch lock on a serrated steel bar and a threaded screw on the fixed jaw for final tightening. It’s rated for up to 1,000 lb of clamping force, which is on the high end for this format. The throat depth is 3.25 in, giving you useful reach into frames and edge glue-ups without the bulk of a deep‑throat clamp.

The bar and jaw castings have a reassuring heft. The overall package feels like a “forever tool”: tough, simple mechanics with little to fail. The finish is more utility than showpiece—painted castings and a blackened bar—so expect it to pick up honest shop wear. That said, the business surfaces that matter (bar serrations, clutch plates, and the screw) are clean and consistent.

Clamping performance

On real joints, the clamp earns its heavy‑duty label. For panel edges and small case assemblies, it pulls tight and stays put without creeping. The 3‑piece clutch bites positively into the bar; once I set it and add final torque on the screw, it doesn’t drift, even during overnight cures. I checked a handful of dry runs with square blocks—jaw faces stay parallel well enough that I didn’t see “squeeze-out squirt” or racking unless I really biased the pressure at one corner.

Force-wise, you’ll run out of courage before the clamp runs out of power. The limiting factor becomes protecting the workpiece, not whether the clamp can apply enough load.

The handle and ergonomics

DeWalt’s quad‑lobe handle is excellent. The shape gives you multiple grip options and the diameter is right in the sweet spot—big enough to crank down confidently, small enough to spin quickly during setup. With gloves on or with gluey hands, it still feels composed. Compared with round plastic handles on cheaper clamps, this one delivers noticeably more torque without discomfort. It’s still not as plush as a traditional hardwood handle, but I prefer it for control and speed.

Weight distribution is balanced, too. The clamp can hang from a workpiece without wanting to tip off, handy when you’re staging multiple clamps for a panel.

Adjustability and the clutch lock

The 3‑piece clutch is the right choice here. It allows quick, one‑handed sliding of the moving jaw when you lift the plates—no trigger to fuss with, no spring to weaken over time. Engagement is crisp. I didn’t experience unintended drops or micro‑slips when bumping the assembly, which is something I’ve suffered with cheaper clutch‑plate designs.

Do note: the clutch plates and bar serrations are happiest when kept clean. Sawdust and glue can add gritty resistance. A quick wipe with a rag and a shot of dry lube on the screw keeps everything moving smoothly.

Jaw pads and workpiece protection

The jaw faces include rubber shoes to protect the work and spread load. They’re grippy and do a good job preventing parts from skating under pressure. My only gripe is retention: under high torque or when the pad catches a square edge, the shoes can loosen or pop off. It’s not a deal breaker, but it is a quirk you’ll notice.

Two simple fixes have worked for me:
- A tiny dab of CA glue at the corners to snug the pads, or
- A thin strip of double‑sided tape inside the shoe.

Either approach keeps them put without making them impossible to remove for cleaning or replacement.

Fit and finish

This clamp is built to work, not to win a beauty contest. The paint will chip with normal use, especially around the jaw edges, and some casting lines are visible. The bar edges on my sample were properly deburred, but I still break the corners with a Scotch‑Brite pad to keep stray sharpness from marring delicate stock. The screw threads are smooth and free of grit; there’s a touch of initial stiffness that disappeared after a few sessions.

The upside of the utilitarian finish is that you won’t baby it. It lives in the shop, gets knocked around, and keeps doing the thing.

In use: where it excels

• Small to medium glue-ups: frames, drawers, boxes, and edge‑joinery up to 6 in.
• Jig building and fixture clamping: the 3.25 in throat gets you far enough in to pinch stop blocks and fence faces without resorting to deeper clamps.
• Assembly work at the bench: the clamp holds guide rails and squares well thanks to the grippy pads and solid clutch.
• Metal and general shop tasks: the high clamping force and metal construction make it a handy third hand for drilling and grinding setups.

It’s not the right tool when you need wide reach across a cabinet side or long bar capacity—this is a 6‑in clamp. Treat it as the quick, powerful workhorse for close‑quarters jobs and it shines.

Comparisons and value

Against budget F‑style clamps, this DeWalt wins on holding power, handle comfort, and clutch reliability. The difference shows up when you need to do a controlled “final quarter‑turn” without chatter or when you want your dry fit to look exactly like the glued assembly the next day. Against premium German‑made clamps, the DeWalt gives up a touch of refinement in casting and pad retention, but it closes the gap on force and ergonomics at a friendlier price. Taken as a whole, the value proposition is strong: you’re getting professional‑grade performance in the size most of us reach for constantly.

The limited lifetime warranty is a nice backstop. Clamps lead hard lives; it’s good to know the brand stands behind the tool.

Quirks and tips

• Pad retention: secure the shoes if they loosen, as mentioned above.
• Keep the bar clean: a quick wipe prevents clutch drag and extends life.
• Use cauls for delicate surfaces: while the pads help, adding wood cauls spreads load and prevents impressions on softwoods.
• Stagger your clamp placement: with high clamping force, alternate top and bottom positions on panel glue-ups to avoid bowing.

The bottom line

This DeWalt clamp is exactly what I want in a 6‑in heavy‑duty F‑style: strong, predictable, and easy to live with. It isn’t fancy, and it doesn’t need to be. The handle inspires confidence, the clutch stays put, and the throat depth is generous for the format. The trade‑offs—cosmetic durability and fussy pad retention—are manageable and, in my shop, minor compared to the day‑to‑day effectiveness.

Recommendation: I recommend this clamp for anyone building a reliable core set for woodworking or general shop use. If you value high clamping force, a comfortable handle, and dependable locking over showroom‑perfect finish, it’s a smart buy. Secure the pads, keep the bar clean, and it will serve as a go‑to for the tasks that make a 6‑in clamp indispensable.
