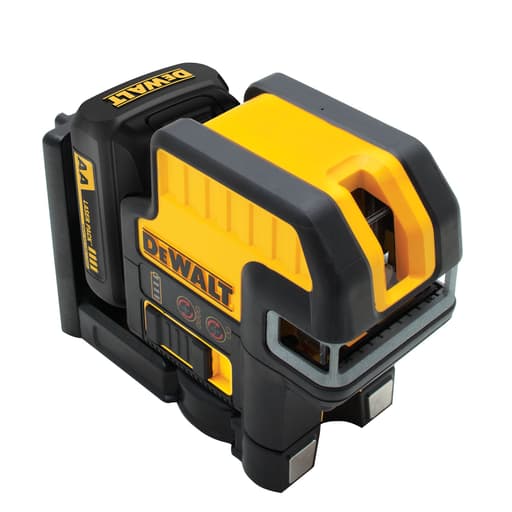

DeWalt 12V MAX Compatible 2-spot + cross-line red laser

Setup and first impressions

I brought DeWalt’s red cross-line/spot laser to a week of framing, door setting, and some MEP layout to see how it holds up as a daily driver. Out of the box, mine came in a TSTAK case with four AA batteries and the integrated magnetic bracket attached. The case is jobsite-friendly and keeps the bracket, target, and laser from tumbling around. The unit itself feels stout—rubber overmold, recessed glass, and a bulk that inspires a bit more confidence than the featherweight lasers I typically toss in a pouch. On paper it’s IP65 with a 2 m drop rating, and the build reads that way in hand.

Power is flexible. You can run it on the included AAs or slide on a 12V MAX pack if you’re already on DeWalt’s platform. I started the week on AAs and switched to a 12V MAX midweek to see the difference. More on that below, but it’s nice to have both options without adapters.

The interface is straightforward: a pendulum lock to keep the mechanism safe during transport, and mode buttons to toggle between lines, spots, or both. The bracket pivots and has both 1/4-20 and 5/8-11 threads, so it goes from tripod to pole clamp without drama. The magnets are strong, and the raised mounting face gives you clearance over trim, conduit, and track—handy when you need the beam to project past obstructions on a wall.

Beam performance and accuracy

This model projects a self-leveling cross-line (horizontal and vertical) plus two plumb spots (up and down). For interior trades, that combination covers a lot of ground: track layout with the horizontal line, stud placement and cabinet alignment with the vertical, and transferring points through floors and ceilings with the spots.

DeWalt rates accuracy at ±1/8 in. at 30 ft, which is the standard spec for midrange jobsite lasers. I checked it against a known reference in a 30 ft hallway: the vertical line landed within 3/32 in. from target on both ends, and the horizontal line held within a hair of that—well within tolerance for framing and finish carpentry. The spots are crisp up close and stay round enough to be useful out to 50–60 ft indoors; beyond that, the red point grows and becomes harder to pick precisely without a detector.

Brightness is the tradeoff you expect with a red beam. In typical indoor conditions it’s easy to see across a room. In bright daylight near windows or under harsh lighting, the line starts to fade at 20–30 ft. That’s not unique to this tool—green beams win for visibility—but it’s relevant if you’re often working in sunlit spaces. The saving grace is the full-time pulse mode. Pairing it with a compatible detector stretches the line range to its stated 165 ft and takes the guesswork out of long runs or exterior use. I used a DeWalt receiver to extend the horizontal line across a daylight-flooded warehouse and had no trouble establishing a consistent elevation.

Power and runtime

On AAs, DeWalt claims up to 10 hours. My real-world runtime was a workday with on-and-off use—lines for layout, spots for point transfers, and frequent toggling to save battery. If you run lines continuously, expect less. Swapping to a 12V MAX compact pack made a noticeable difference in uptime and also stability; the larger battery acts like a small foot and lowers the center of gravity. The key detail: many kits don’t include the 12V battery, even though the tool is compatible, so check your listing and plan accordingly.

One side benefit of a red laser is reduced power draw compared to green. If you mostly work indoors and don’t need the brightest line, this red unit strikes a nice balance of visibility and battery life.

Mounting and layout flexibility

The bracket is better than average. The magnets hold firmly on steel studs and door frames, and the pivot makes it easy to rough-in level before the pendulum takes over. I appreciated the raised face—it spaces the laser off the surface, so the line can clear things like base trim, conduit straps, or track lip. On ceilings, the 5/8-11 thread lands on a rotary laser tripod without an adapter, and the 1/4-20 covers the camera tripods many of us keep in the truck.

There’s no dedicated micro-adjust knob, so fine nudging at 30+ feet is a two-hand job: one to tap the body, one on the bracket. For most interior runs, that’s fine; when I needed precise long-range alignment, the detector took over. If you frequently align partitions to existing grid at long distances, you’ll miss a fine adjust stage, but the pivoting bracket and a decent tripod get you close enough quickly.

Durability and jobsite manners

This laser feels like it’s built for punishment. The IP65 rating means it shrugs off drywall dust and the occasional splash, and the 2 m drop rating isn’t just marketing—I accidentally knocked it off a ladder shelf onto rubber flooring and it didn’t lose calibration. The lens housing sits recessed, so casual bumps don’t threaten the glass. The pendulum lock has a positive action and, as long as you remember to engage it before transport, it should keep the internals safe.

Temperature tolerance is broad (14–122 °F). I had one cold morning in an unheated space around freezing; the self-leveling mechanism settled a tad slower than in warm conditions but still locked in promptly and stayed stable.

Everyday workflow

• Framing and track: The horizontal line made quick work of setting bottom and top track around a long corridor. The vertical line helped ensure studs stayed on layout, and the spots were great for transferring a stair opening through to the floor above.
• Doors and cabinets: The vertical line is straight and clean enough for hinge alignment and cabinet plumb. I used a detector for a long level datum in a sunny kitchen and didn’t fight visibility.
• MEP points: Using the down spot to set anchor locations and the up spot to catch centerlines on the deck above worked well. The spot is bright enough indoors up to typical commercial bay widths.

What I’d change? A micro-adjust base would speed up long-range alignment. A green beam option exists in the wider DeWalt lineup; in bright spaces, green would be easier on the eyes. And the kit confusion around batteries persists: “12V compatible” is great, but be sure you know what’s in the box.

Accuracy and calibration confidence

After a week of use, I rechecked the laser against a reference line and plumb bob. No measurable drift showed up, which is what I’d expect given the protection ratings and the single mild drop it survived. DeWalt’s ±1/8 in. at 30 ft spec tracks with my measurements. If you need tighter tolerances for millwork at long distances, a higher-end unit with fine adjust and possibly a green beam would be a better fit. For general layout and alignment, this one hits the mark.

Value and who it’s for

The strength of this laser is the combination of lines and spots in one body, robust mounting, detector compatibility, and flexible power. If you work across trades—carpentry, drywall, light MEP, facilities—this is a handy single-tool solution that reduces the number of lasers in your kit. If you’re already on DeWalt 12V MAX, the runtime bump and stability of the pack are worth it; if not, it still runs happily on AAs with realistic full‑day intermittent use.

If your work is mostly bright, sunlit interiors or exterior layout, I’d lean green or plan on using the detector routinely. If you demand micro-adjust for long-distance fine work, budget for an accessory base.

Recommendation

I recommend the DeWalt red cross-line/spot laser for builders and tradespeople who want a rugged, do‑most‑things interior laser with both lines and plumb spots, strong mounting options, and detector-ready range. It’s accurate to spec, holds calibration, and the IP65/2 m drop credentials show up in daily use. The ability to run on either AAs or a 12V MAX pack adds real flexibility. Just be aware that the red beam is less visible in bright conditions than green, there’s no fine-adjust base, and many kits don’t include a 12V battery. If those caveats fit your workflow, this laser is a reliable, jobsite-tough choice that streamlines layout without fuss.
