DeWalt 20V MAX Cordless 5-Spot Green Line Laser (Tool Only)

Why I reached for this laser

On jobs where layout speed and repeatability matter—framing lines, transferring points for MEP hangers, squaring up door and window openings—I prefer a spot laser over a traditional cross-line. DeWalt’s 5‑spot green laser slotted into my workflow because it gives me crisp reference points with the green brightness I need for interior distances, plus the rugged build and mounting options that make it practical on active sites.

Setup and build quality

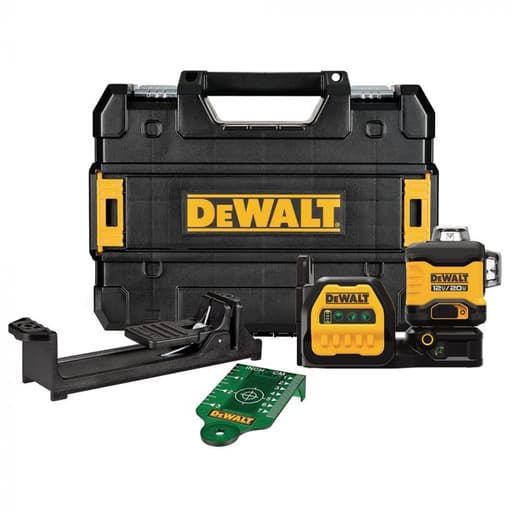

The unit comes ready for jobsite life. The pendulum lock engages with a firm click, which inspires confidence when tossing it back in the TSTAK case. The case, bracket, and target card are included, while the battery and charger are not. If you’re already on DeWalt’s 20V MAX platform, you’re set; if not, factor that into cost and weight.

The housing is plastic but feels dense and well-sealed. It’s IP54 rated, which covers dust and incidental water—think drywall dust and the occasional splash, not a downpour. The rotating head moves smoothly, and the fine‑adjust knob gives you the kind of micro‑movements that turn “close enough” into “dead on” when you’re splitting a line at 30 feet.

Magnet strength is excellent on clean steel. Hanging it off metal studs, door frames, or a column base felt secure; I wasn’t babying it. The included drop ceiling bracket is a practical touch for grid work.

One note on size: this is not a compact 12V cube. With a 20V pack, it sits taller and feels more substantial. That extra mass helps stability but can crowd tight corners compared to smaller lasers.

Visibility and accuracy

DeWalt rates accuracy at ±3 mm at 10 m (about 1/8 in at 30 ft). In practice, across rooms and on corridors, I didn’t see drift or vape-trail wobble that would push me out of tolerance for framing, drywall, or typical MEP layout. The five green spots are crisp with minimal flare on matte surfaces; on glossy tile or polished concrete, they bloom a little as all green lasers do, but they remain usable.

The bright green diodes carry well indoors. In a lit warehouse bay, I could confidently hit marks across 60–80 feet without feeling like I was guessing. DeWalt lists a visible range up to 280 feet and up to 330 feet with a compatible detector. Realistically, indoors you’ll be limited by line of sight and surface reflectivity before the diode quits. Outdoors in direct sun, expect to use a detector; the spots are visible in shade but wash out in bright conditions.

Leveling and controls

Self‑leveling is quick, with a gentle settle that avoids the pendulum slap you get on cheaper units. If you bump it out of level, it recovers fast. The lock is easy to flip even with gloves, so parking it for transport becomes part of your muscle memory rather than a step you forget.

Controls are straightforward. I like the individual on/off for spots and lines because it actually impacts runtime, and it keeps the workspace less cluttered when you’re only chasing plumb up/down or transferring a single point. The indicators are intuitive enough that I didn’t need to reference a manual after the first session.

Mounting and micro‑adjustment

Mounting versatility is where this tool earns its keep. The magnetic base and rotating head let me get close and rough‑in quickly, then the fine‑adjust knob makes that final inching to a punch mark painless. I used it on:

• Door and window layout: transferring plumb points and checking header alignment.
• Steel stud framing: snapping to track centerlines and verifying plumb through slab transitions.
• MEP hangers: shooting up from the floor to locate inserts.
• Ceiling grid: pairing the drop ceiling bracket with the fine‑adjust knob to dial tile lines.

The rotating head maintains your reference as you sweep across a wall or ceiling, and the fine‑adjust prevents the nudge‑over‑shoot loop you can get with purely magnetic setups. If your work leans heavily on repetitive point transfers, this combo saves real time.

Power, runtime, and platform

This laser is happiest on DeWalt’s 20V MAX batteries. DeWalt claims up to 17 hours on a 2.0Ah pack, and they also cite scenarios up to 24 hours depending on how many emitters you run. In my use, a fresh 2.0Ah easily covered a long day with short breaks, especially if I toggled off unneeded emitters. A 5.0Ah battery turns it into a multi‑day tool, at the cost of added bulk.

There’s mention of some 12V MAX compatibility. I stuck with 20V packs; if you plan to run 12V, confirm your battery fitment before assuming it’s supported. Either way, having the tool on a mainstream platform means charging on the same racks as drills and impacts. That matters when crews share power.

Range and real‑world limitations

Manufacturer specs put visible range at 280 feet and 330 feet with a detector. For interior work, you’ll rarely need that distance, and other factors limit you first: obstructions, uneven surfaces, and ambient light. Outdoors, the green spots are usable under cloud cover or in shaded exteriors, but in full sun I switched to a detector or used it primarily for establishing near‑field points and then pulling control tapes.

Accuracy is strong for layout, but this isn’t a survey instrument. If you’re setting up long‑run control lines or exacting finishes, pair it with a detector, a tripod, and a quality tape or laser distance meter for verification.

What it does well

• Bright, crisp green spots that stay useful across typical interior distances.
• Self‑leveling with a secure pendulum lock that stands up to transport.
• Excellent magnetic mount, a smooth rotating head, and a fine‑adjust knob that make precise positioning easy.
• Practical power management with individual on/off for emitters.
• Jobsite‑ready IP54 sealing and a protective TSTAK case that integrates with other boxes.
• Platform convenience for crews already on 20V MAX.

Where it could be better

• Bulk and weight are higher than compact 12V lasers. In tight mechanical rooms, I sometimes wanted a smaller footprint.
• Battery and charger are not included. If you’re not on DeWalt 20V MAX, onboarding adds cost.
• Green diodes are efficient, but running multiple emitters all day will drain small packs faster than the optimistic spec suggests.
• The “accepts some 12V MAX batteries” note is vague; clarity on compatibility would help mixed‑platform users.

Who it’s for

• Framing and drywall crews who need fast, reliable plumb and point transfer.
• MEP trades setting hangers, sleeves, and inserts where consistent vertical references speed layout.
• Remodelers and general contractors who want a robust, bright, easy‑to‑mount spot laser with enough runtime for full‑day tasks.
• Anyone in the DeWalt 20V MAX ecosystem who prefers to keep chargers and batteries unified.

If your work is heavily line‑based (tiling, cabinet installs, trim), a dedicated cross‑line laser may suit you better. If you only occasionally need a spot reference, a smaller 12V unit could be more convenient. But for regular layout across active jobsites, the feature set here aligns with real needs.

Recommendation

I recommend the DeWalt 5‑spot green laser for pros and serious DIYers who do regular layout and alignment in framing, drywall, and MEP work. It’s accurate, bright, and genuinely usable thanks to the magnetic mount, rotating head, and fine‑adjust knob. The IP54 build and pendulum lock hold up to jobsite abuse, and the 20V MAX compatibility makes power simple if you’re already in that system. The trade‑offs are size and the added cost of batteries if you’re not on the platform. If those fit your situation, this laser is a dependable, time‑saving addition to the kit.
