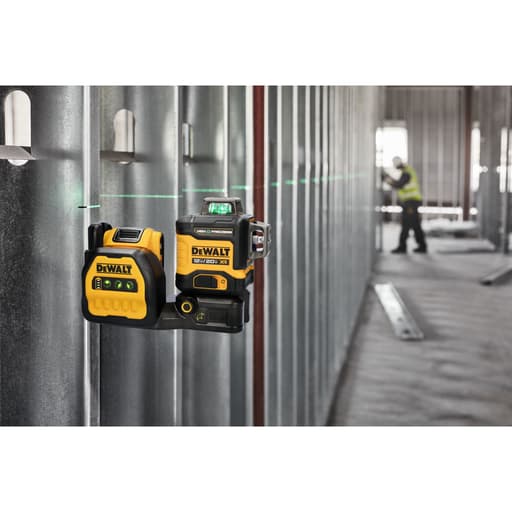

DeWalt 20V MAX XR 3 x 360 High Precision Green Laser

I put the DeWalt 3x360 green laser to work across a week of framing, cabinet leveling, and ceiling layout, and it quickly showed me where it shines—and where it doesn’t. This is a full‑featured kit with three continuous 360° planes, a self‑leveling pendulum, pulse mode with a detector, and both 20V and 12V battery compatibility. For interior layout, it’s a capable, confidence‑inspiring tool. For bright‑day exterior work, it’s serviceable with the detector but not a rotary replacement.

Setup, ergonomics, and power

The kit arrives ready to run: laser, detector with clamp, ceiling/T‑bar bracket, target card, a compact 20V 2.0Ah battery, and charger in a hard case. Out of the box, I appreciated that I could mount it nearly anywhere. The integrated magnetic base is stout and sits flat on track or steel studs; the rear magnets let it hug a column or door frame; and the base has both 1/4"-20 and 5/8"-11 threads for tripods and laser poles. The ceiling bracket earns its keep on grid work; once you learn the adjustment range, you can dial a plane to ride right along the main tees.

On weight and balance, the 20V pack gives great runtime but makes the laser a bit top‑heavy on small ledges. Swapping to a 12V battery noticeably trims weight and keeps the footprint tidy for cabinet and trim work. Either way, the rubber overmold and IP54 rating handle jobsite bumps and dust well. The pendulum lock is positive and keeps the optics safe in transit.

Leveling is quick. From power‑on, the lines settle within a couple of seconds and the status indicator makes it obvious when you’re within the self‑leveling range. Manual/lock mode lets you intentionally tilt lines, and it’s convenient for stair trim or pitched ceilings—but remember that accuracy specs don’t apply with the pendulum locked.

Visibility and line quality

Indoors, the green lines are clearly visible on typical wall finishes and even textured ceilings. On clean, light surfaces I could comfortably lay out rooms at 35–50 feet and still see a crisp, workable line. As distance increases, the line thickens slightly—as all line lasers do—but it remained thin enough for precise marks and cuts. The horizontal plane projects evenly around the room with minimal dimming at seams, and the two vertical planes intersect cleanly for squaring.

On certain surfaces and at the far reaches of the beam, I did notice mild speckle and a bit of shimmering if the setup was on a flexy surface (subfloor, scaffold plank). That’s more about vibration than the laser itself: once the base is on something solid, the lines stabilize. Keep the lens clean; a dusty window amplifies speckle and can create faint banding you’ll mistake for dim spots.

Outdoors in bright sun, this is a detector‑first tool. I could catch the line in morning shade or under a canopy at modest distances, but in full sun the visible line gets washed out fast, as is typical for Class 2 line lasers. With pulse mode and the included detector, I was able to work reliably out past 100 feet. The detector finds the plane consistently, but like most handheld receivers it’s easier and faster with a grade rod or a straight 2x as a staff. Plan your workflow accordingly for exterior layout.

Accuracy and alignment

DeWalt lists ±1/8 in. at 50 ft., and my checks backed that up. I ran a four‑point test against control marks and did a plumb check from floor to second‑floor joist, and the verticals lined up within a hair over 1/16 in. at roughly 25 feet. Over 50 feet, my worst case landed just under 1/8 in., which is in line with the spec.

The fine‑adjust knob for the vertical planes is the standout feature here. On metal studs and track, that micro‑tuning saves time: instead of bumping a tripod or sliding a magnetic base a fraction at a time, you twist the knob and nudge the plumb line onto your layout marks. It makes door and partition alignment feel precise rather than fussy, and it’s invaluable when your base is captive on a bracket or column.

Controls and modes

Mode switching is straightforward. You can run individual planes or any combination, and pulse mode is one press away when you move outdoors. The self‑leveling pendulum has a generous range for typical jobsite irregularities, and the warning indicator is bright enough to catch in your peripheral vision if someone bumps the setup.

One tip: if you’re working near heavy machinery or on a bouncy deck, extend the tripod or use the ceiling bracket to isolate the base. Minor oscillations of the platform translate into a “breathing” line on the wall. The laser itself settles quickly; it’s the support under it that can introduce wiggle.

Runtime and platform benefits

With the included 20V 2.0Ah battery, I got a full day of intermittent use and around 8–10 hours of continuous single‑plane runtime. Running all three planes trims that, but not drastically. Being able to drop in any 20V MAX pack I already own is a big convenience, and switching to a 12V pack for lighter, short‑duration work is a nice option. If you’re deep in the DeWalt ecosystem, that dual‑voltage versatility is a real advantage over single‑battery lasers.

Included detector and accessories

The included green‑line detector works as expected in pulse mode. The clamp is solid on a stick or 2x, and the audible feedback is loud enough outdoors without being obnoxious indoors. In open‑air situations, finding the plane the first time can be a bit hunt‑and‑peck without a reference—standard fare for line lasers. A target card helps, and once you’ve found the plane, walking elevations goes smoothly. If your daily work is exterior grading, a rotary and staff will still be faster; for occasional outdoor reference lines or deck ledger heights, this kit gets it done.

The hard case is protective but bulky. There’s room for a second battery and the detector, but it’s not a compact carry if you’re moving floor to floor all day. I tended to bring the laser, bracket, and a 12V pack in a smaller bag for quick interior tasks.

Durability and jobsite realities

The housing feels robust, and the IP54 rating has held up through dust, light rain, and the occasional splash. I kept the pendulum locked anytime it wasn’t on a stable base, and I’d recommend the same. In cold conditions near freezing, the self‑leveling action slows slightly; once warmed in the case or cab, it behaves normally. DeWalt’s 3‑year limited warranty and 1‑year service add some peace of mind.

What could be better

• Bright‑sun visibility is limited without the detector, which is normal for this class—but if outdoor, no‑detector work is common for you, consider a rotary kit or plan for shade.
• The 20V pack makes the unit a bit top‑heavy on narrow ledges; a 12V pack balances better.
• On rare occasions, I saw faint line banding at long range that cleaned up after wiping the lens. Keep the window clean and the base steady to avoid false “gaps.”

Who it’s for

• Interior trades laying out walls, ceilings, tile, cabinets, and millwork who benefit from three clean 360° planes.
• Remodelers and commercial carpenters who want flexible mounting and a fine‑adjust vertical line for track and door alignment.
• Anyone already on DeWalt 20V or 12V batteries who wants a laser that runs on the packs they own.

If your primary workload is bright‑day exterior layout, fence lines, or grading past 100 feet, a rotary laser with a staff remains the faster, more visible choice.

Recommendation

I recommend the DeWalt 3x360 green laser for interior pros and remodelers who value precise planes, robust mounting options, and the convenience of running on DeWalt batteries. Accuracy is on spec, the lines are bright and usable indoors, the fine‑adjust knob meaningfully speeds plumb work, and the included detector extends the kit’s utility outdoors. It’s not a miracle worker in full sun, and it can feel top‑heavy with a 20V pack on tight perches, but those are typical trade‑offs for this category. If you live mostly indoors and want a dependable, feature‑rich 3‑plane laser that plugs into your existing yellow batteries, this one earns a spot in the kit. For heavy exterior layout, step up to a rotary or be ready to lean on the detector and a staff.
