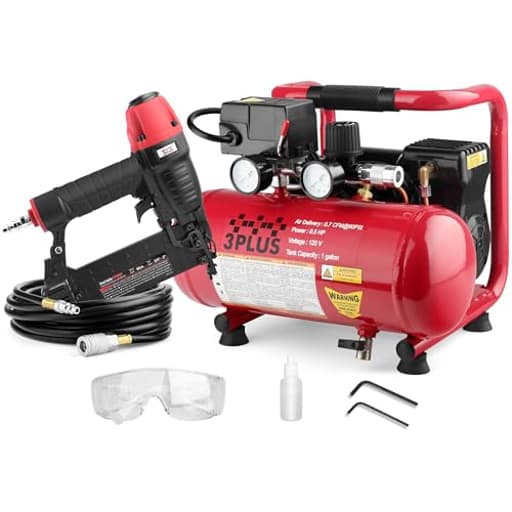

3PLUS HCB050401 18-Gauge Brad Nailer and Quiet Air Compressor Combo kit

Why this little combo earned a permanent spot in my trim kit

I put the 3PLUS brad nailer and compressor combo to work on a weekend of trim updates and a shiplap accent wall, expecting a stopgap solution for light-duty jobs. Instead, I got a compact setup that’s noticeably quieter than most small compressors I’ve used, easy to carry upstairs with one hand, and perfectly matched to 18-gauge finish work.

This is a straightforward pairing: an 18-gauge brad nailer that drives 3/4"–2" brads, powered by a 1-gallon, oil-free compressor that tops out at 125 PSI. Nothing flashy—just a focused kit for finish and trim. And that’s exactly where it shines.

Setup and first impressions

Unboxing is painless. The compressor’s roll-bar chassis protects the gauges and fittings, and the small footprint fits easily on a shelf or in a car trunk. At 23 pounds, it’s genuinely portable. The kit includes a hose with fittings, basic goggles, and wrenches—enough to get you running without a hardware store detour.

Controls are intuitive:
- One gauge for tank pressure and another for regulated line pressure
- A large regulator knob
- A quick coupler for the hose
- A drain valve under the tank

After a quick check for leaks and a couple drops of pneumatic oil in the nailer, I had the compressor filling to about 120–125 PSI, then cycling on and off automatically as expected. The regulator responded precisely, and I ran the nailer between 70 and 100 PSI depending on material.

Noise and handling

The noise rating is 65 dBA, and while real-world conditions always vary, it’s noticeably quieter than pancake compressors in the same class. I could hold a normal conversation in the room while it ran—rare for small air units. Vibration is low, and the roll bar doubles as a comfortable carry handle.

The nailer itself is lightweight and nicely balanced. The nose has a no-mar tip that protected painted trim and prefinished moldings, and the 360° exhaust kept air out of my face. The trigger feel is predictable, with a positive safety on the nose. It’s not a feature-laden pro gun, but for an 18-gauge unit it does exactly what it should without drama.

Performance on the job

I ran 1" and 1-1/2" brads into pine, MDF, and poplar, and 2" brads into select oak and plywood cleats. With the regulator at 90 PSI and the depth dialed in, nails set consistently just below the surface—no crushed fibers, no mushrooming. In softer materials, I backed the pressure down to 75–80 PSI to avoid overdriving.

The depth-of-drive dial on the nailer is genuinely useful, especially when you’re switching between MDF and solid stock. After a couple test shots on scrap, I was getting clean, repeatable results. The quick-clear jam feature is there if you need it, but in my runs I didn’t hit a single jam. That’s not a promise for everyone—brads and materials vary—but it’s a good sign of the nailer’s setup and tolerances.

Compressor capacity and cycle behavior

With a 1-gallon tank and 0.7 SCFM at 90 PSI, you’re not buying production capacity—you’re buying portability. In practice, that means you can fire a short string of brads and the compressor will kick on to top off. For me, it cycled frequently on long runs of shiplap, but recovery was quick and the sound wasn’t intrusive. For trim punch lists, baseboard, casing, and small built-ins, the cadence is easy to live with.

If you need two guns at once, or you’re stapling continuously, this is not the right compressor. But for a single brad nailer, it’s well matched.

Build quality and durability

The compressor’s oil-free, direct-drive pump is the right call for this class: minimal maintenance and no oil mist in the line. The roll-bar frame protects the important bits from knocks in the truck or shop. The fittings and gauges are better than “budget,” and nothing loosened up during use.

The nailer is a step down from pro-grade magnesium guns, but it’s honest about its intentions: light, dependable, and simple. The nosepiece, magazine, and trigger controls feel secure, and the magazine spring fed consistently even with mixed-length brads. I wouldn’t throw it on a framing crew, but for homeowners and remodelers it’s solid.

What I’d improve

• Documentation: The included paperwork is minimal. A clearer quick-start guide and a troubleshooting page would help first-time users. Fortunately, the controls are simple and there are plenty of general pneumatic how-tos online.
• Hose quality: The included hose is serviceable and the fittings sealed well for me, but a supple rubber or hybrid hose is a noticeable upgrade, especially in cold weather.
• Tank size option: A 2-gallon variant would broaden the appeal without sacrificing much portability. That’s not a knock on this kit—just a wish for the lineup.

Safety and maintenance notes

• The compressor’s pressure switch handled cut-in and cut-out automatically in my use, topping off around 120–125 PSI. Still, make a habit of watching your gauges and shutting the unit off when you’re done.
• Drain the tank after each session. Small tanks accumulate condensation quickly.
• Put 2–3 drops of pneumatic oil in the nailer at the start of the day, unless you’ve installed an inline oiler (not typical for finish work).
• Use the no-mar tip on finished stock and keep the exhaust directed away from your face and sanding dust.

Where it fits and where it doesn’t

Best for:
- Trim, casing, baseboard, crown, and shoe molding
- Paneling and shiplap
- Light cabinetry, jig construction, and shop fixtures
- Punch-list repairs and small projects where a big compressor is overkill

Not ideal for:
- Two-user setups or rapid, continuous nailing
- High-air tools like impact wrenches, die grinders, or HVLP sprayers
- Flooring installation (use a dedicated flooring nailer/stapler)

Tips to get the most out of it

• Start at 90 PSI on the regulator, then fine-tune with the nailer’s depth dial, not just air pressure.
• Test on scrap from your project—MDF and hardwood behave very differently under brads.
• Keep brads clean and dry; cheap or corroded fasteners are the fastest route to jams.
• Check for air leaks at setup with a quick spritz of soapy water on new connections. A tiny leak will make a 1-gallon tank cycle more often than it should.

The bottom line

This 3PLUS combo does the basics right. The compressor is quieter and lighter than most rivals, the pressure switch behaves as it should, and the regulator is stable. The nailer delivers consistent, flush drives across common trim materials with useful depth control and a no-mar tip that actually protects finished surfaces. The kit is easy to live with, stashes neatly, and doesn’t require you to build out a whole pneumatic ecosystem to get started.

Recommendation: I recommend this combo for homeowners, DIYers, and pros who want a compact, quiet setup for punch lists and light finish work. It’s not built for production speed or air-hungry tools, and the documentation could be better, but as a grab-and-go solution for trim, paneling, and small cabinetry tasks, it’s a reliable, good-value choice that trades brawn for portability—and makes that trade smartly.
