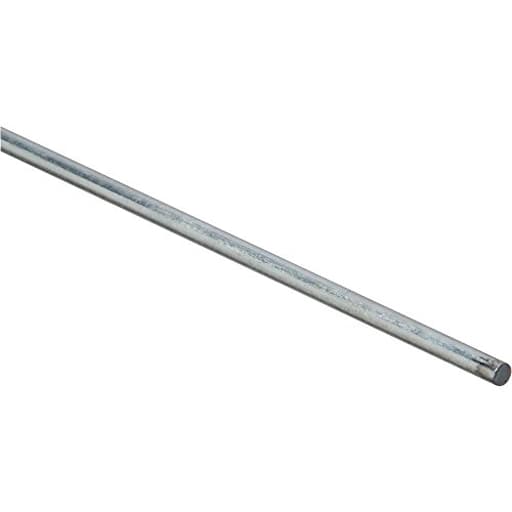

National Hardware N179-754 4005BC Smooth Rod in Zinc plated,3/16" x 36"

What it is and why I picked it up

I keep a stash of small-diameter rod for odds-and-ends in the shop—temporary pins, light-duty axles, guides, and latch links. The 3/16" x 36" smooth rod from National Hardware is a straightforward option for that role: zinc-plated mild steel, smooth finish, and a handy three-foot length. I grabbed one for a pair of projects: a lightweight axle on a rolling parts bin and a sliding gate latch linkage. Both need a rod that’s reasonably straight, machinable with common tools, and tolerant of occasional outdoor exposure.

Build and finish

Out of the sleeve, the rod is clean and bright with an even zinc finish. No flaking, no heavy drips, and importantly, no seam line you sometimes see on lower-grade cold-finished stock. Mine was straight enough to roll without wobble on the bench—close to what I’d call “hardware-store straight,” not precision-ground straight. That’s appropriate for its intended use.

At the ends, I did find a hint of end deformation from shearing; a quick trim and chamfer sorted that. If you need perfectly square ends, plan on facing each side. The coating coverage is good along the shank, but—like any plated rod—the cut ends will be bare after you size it. I keep cold galvanizing spray on hand; a quick spritz on the fresh cuts keeps rust at bay.

Sizing and tolerances

With a micrometer, my piece measured between 0.1874" and 0.1878" along its length—right where I’d expect for a nominal 3/16" rod. That’s fine for:

• 3/16" ID bronze bushings (nice sliding fit with oil)
• 3/16" shaft collars (split collars clamp more reliably than single set-screw types)
• Drilled 3/16" holes in mild steel or hardwood (expect a snug fit if your drill runs true)

If you’re chasing tight fits or high-speed rotation, this is not precision-ground stock. For light-duty axles and guides, the sizing is consistent enough. For my rolling bin, I ran the rod through a pair of 3/16" sintered bronze flanged bushings; the rod turned smoothly without perceptible play, and it didn’t bind after a few hours of use.

Working with the rod

• Cutting: A hacksaw with a fresh 24 TPI blade went through cleanly. A cutoff wheel is faster, but either way, deburr and chamfer the ends for a professional finish.
• Drilling: I cross-drilled for cotter pins using a cobalt bit at low speed with cutting oil. The zinc plating doesn’t smear; chips clear easily. A V-block makes this much easier and keeps the hole centered.
• Shaping: Mild bends are doable cold in a vise with soft jaws. For tighter radii, minimal heat helps, but remember you’re working with zinc-plated material. Any heating should be done in a well-ventilated area, and expect to touch up the finish afterward.
• Threading: 3/16" is slightly under 10-24 major diameter. You can chase light threads with a 10-24 die in a pinch, but engagement will be marginal. I’d opt for collars or drilled-and-pinned connections instead of threading this size.

Performance in actual use

On the rolling bin, the rod handled the load (about 45 lb distributed across two small wheels) without visible deflection. Rotation speed is low, and that matters. This rod is ideal for slow-turning applications: carts, sliding mechanisms, and alignment pins. I wouldn’t spec it for anything that spins fast or needs tight runout—say, a small motor shaft—because it’s not ground or balanced for that.

On the gate latch linkage, the zinc finish was the draw. After a month outside, including a few rainy days, there’s no red rust. Zinc does its job, especially if you reseal any cut ends. For harsher marine environments, I’d probably go stainless, but for general outdoor use, this is a sensible compromise between cost, corrosion resistance, and machinability.

Where it shines

• DIY axles for small, low-speed wheels (shop carts, tool caddies, kids’ wagons)
• Linkages and actuating rods in jigs and fixtures
• Sliding guides and stops where a smooth finish reduces friction
• General-purpose shop stock when you need a true 3/16" shaft that isn’t fussy to cut and drill

The consistency makes it pleasant to work with. It doesn’t fight your tools, and it takes a clean hole. For small mechanisms that depend on repeatable dimensions, that predictability matters more than cosmetic perfection.

Limitations to keep in mind

• Not for welding as-is: Zinc plating and welding don’t mix. If you must weld, strip the zinc first (mechanically or with a safe chemical method) and use proper ventilation. Realistically, this rod is better treated as a non-welded component.
• Not precision-ground: If you need tight tolerance on straightness, roundness, or surface finish for bearings at higher RPMs, look for precision shafting.
• End prep required: Expect to square, deburr, and chamfer. It’s quick work, but it’s part of the process.
• Load and deflection: At 3/16", it’s a small cross-section. It’s stronger than aluminum rod of the same size, but it’s still meant for light-duty span lengths. For longer spans or heavier loads, step up the diameter or switch to tubing with better stiffness-to-weight.

Practical tips from the bench

• Use split collars, not single set-screw collars, when you need clamping security without marring the shaft.
• Cross-drill with a center punch mark and a V-block to keep bit walk under control.
• After cutting, seal the ends with cold galvanizing spray or a dab of rust-inhibiting primer.
• For bushings, a drop of light machine oil on the rod makes a noticeable difference in wear and feel.
• If you encounter a slight bow, gentle hand-straightening over a flat surface works; don’t force sharp corrections.

Alternatives worth considering

• Precision-ground shafting (3/16") when you need true running in bearings or tight tolerances.
• 304/316 stainless rod for aggressive outdoor or marine environments where corrosion protection trumps ease of machining and cost.
• Larger diameter zinc-plated rod when stiffness is more important than weight or clearance.

Value and availability

This is everyday-use stock from a trusted hardware brand. The appeal is straightforward: you can cut it with basic tools, shape it without fuss, and rely on the zinc to keep surface rust at bay for most indoor and many outdoor situations. For workshop shelf stock, that checks the right boxes. As always, price per foot is higher than buying raw bar from a metal supplier, but the convenience and finish are often worth it for one-off builds and quick fixes.

Safety note

Any time you heat or grind zinc-plated steel, work with strong ventilation and respiratory protection. I keep heating to a minimum and prefer cold bending or mechanical forming where possible. If welding is non-negotiable, remove the plating in the weld zone and clean thoroughly.

Verdict and recommendation

I recommend this smooth rod for light-duty axles, linkages, and general shop use where 3/16" stock makes sense. It’s straight enough, sized accurately, and the zinc finish holds up well for interior and moderate exterior exposure. It machines cleanly with common tools and doesn’t demand special handling. It’s not a substitute for precision shafting and it’s not meant to be welded in-place, but within its lane it’s a dependable, easy-to-work material. If you need a no-drama 3/16" rod you can cut, drill, and put to work the same afternoon, this is a solid pick.
