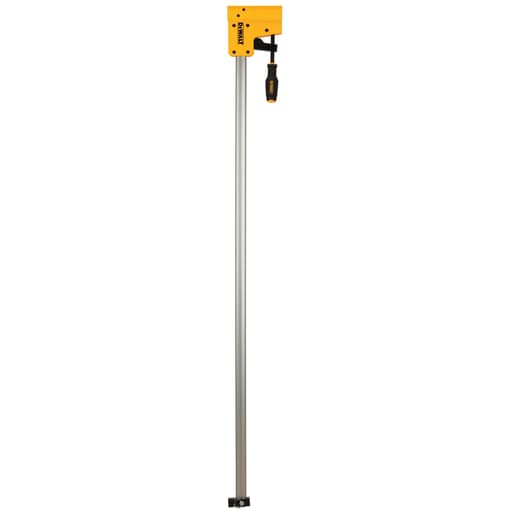

DeWalt 48 in. (1200 mm) Parallel Bar Clamp

I first put the 48-inch parallel clamp to work on a stubborn cabinet glue-up—four long panels that always want to skate around as soon as glue hits wood. This clamp’s parallel jaws and long reach immediately changed the tone of the job from “fight” to “control.” It isn’t a featherweight, and it isn’t pretending to be. It’s a big, purpose-built clamp that trades heft for stability and force, and in that role it’s excellent.

Design and build

This is a steel-bar, parallel-jaw clamp with about 49 inches of usable opening, roughly a 4-inch throat, and a bar measuring 10 mm thick. The jaws are large, smooth-faced, and non-marring, which means I could clamp finished veneer and hardwood without pads in many cases. The body components are a tough polymer around a steel core; the bar itself is straight and rigid. A safety stop at the end of the bar keeps the moving head from sliding off during setup—a small feature that pays for itself the first time you’re juggling parts and a heavy clamp.

At 9.8 pounds, each clamp is substantial. That weight is not incidental: it contributes to the way the clamp stands upright on its own and resists twisting when you start applying force. The extra mass also means fewer surprises when you crank down—light-duty clamps can rack or flex under load, and this one doesn’t give in easily.

Setup and ergonomics

The quad-lobe handle is one of the better designs I’ve used on a parallel clamp. The size and contour let me pour on torque comfortably, even with gloves. The slide head’s quick-release lever makes repositioning straightforward: lift, slide, let go, then tighten. In day-to-day use, I found the release works best if you take tension fully off the mechanism first. If there’s residual load on the head, or if sawdust and glue have built up on the bar, the release can feel hesitant. A quick wipe of the bar and backing off the handle a quarter-turn before activating the lever kept it consistent.

These clamps stand on their own heads very well. That matters more than it sounds: for carcase and drawer glue-ups, being able to set two or three clamps upright and lower the work onto them makes alignment faster and less fussy. The wide, parallel faces also give you generous bearing surface, which reduces the number of cauls you need.

Clamping force and control

The rated clamping force is around 1,500 pounds (675 kgf). Practically, that translates to two things: fast squeeze-down on uneven glue lines, and the ability to bring a slightly out-of-true panel into compliance without resorting to pipe clamps. With panels around the 36- to 42-inch range, I observed minimal bar deflection when using two or more clamps spaced evenly. On a full 48-inch span, you’ll see the same slight, predictable bow that all long clamps exhibit under high load. It’s manageable with good clamping layout: alternate clamps top and bottom or add a caul if you’re chasing dead-flat.

Equally important, the parallel jaws do what they’re supposed to do—apply pressure square to the faces. That helps keep parts from creeping and reduces the tendency for panels to cup or roll as you tighten. In practice, that meant fewer incremental adjustments as glue set and fewer calls for corrective clamping mid-cure.

Parallelism and surface protection

These jaws arrived square and stayed that way through several casework assemblies and panel glue-ups. The faces are smooth and have just enough texture to grip without sticking. I deliberately tested on prefinished plywood edges and a waxed walnut panel; neither showed witness marks. For delicate work, I still drop in a sacrificial block or a bit of kraft paper, but for general furniture assembly the non-marring faces were more than adequate.

One note: because the faces are large, you’re rewarded for even, symmetrical clamp placement. If you clamp hard on one side and light on the other, the parallel faces can “steer” your assembly slightly. That’s true with any parallel clamp, and the solution is simple—mirror your clamp positions and work up to pressure in stages.

Capacity and throat depth

The opening is generous—just shy of 49 inches—which has covered everything from tabletop halves to tall cabinet sides in my shop. The throat is about 4 inches, so you can reach past edge banding and into most frame-and-panel situations. For deep casework or center-panel pressures, I still rely on cauls or specialty clamps, but for edges and mid-depth joints, this clamp gets there without much strategy.

Durability and maintenance

The steel bar shrugs off glue drips and the odd metal-to-metal scuff. I got in the habit of wiping the bar after messy glue-ups and giving it a very light coat of paste wax. That makes the slide action smoother and keeps the quick-release reliable. The polymer jaw bodies have held up well—no cracks, no stripped mechanisms. I’ve dropped one clamp flat from bench height; it collected a cosmetic scuff but stayed aligned and functional.

Because the clamping mechanism can generate real torque, treat the handle threads with the respect you would a vise: avoid over-tightening just to “feel better.” Once the joint is closed and squeeze-out appears evenly, you’re there. This preserves both the tool and your workpieces.

In the shop: use cases

• Edge-gluing panels: The clamp’s even pressure and large faces are tailor-made for this. I used two below, one above, and alternated to keep a 44-inch panel flat without external cauls.
• Case and drawer assembly: Standing clamps upright, I could dry-fit, drop the carcase in, and tighten progressively for square. The jaws are tall enough to reference against, which helps keep assemblies plumb.
• Door glue-ups: Stiles and rails stay aligned well; the parallel pressure helps keep shoulders tight without over-compressing tenons.
• Repair work: For a dresser rebuild, the long opening let me bridge from side to side and draw the carcass into square—no pipe clamp gymnastics required.

Limitations and trade-offs

• Size and weight: At almost 10 pounds, each clamp is not a grab-and-go for light trim work. If you need to carry six across a jobsite, you’ll feel it.
• Release quirk under load: The quick-release lever requires tension-free engagement. If you try to actuate it under residual load or with a dirty bar, it can feel inconsistent. Clean bar plus zero load fixes it.
• Cost versus lighter clamps: You’re paying (and lifting) for parallelism and force. If you only need occasional light clamping, an F-style or small bar clamp may be a better fit.

Tips for best results

• Clean the bar and jaw tracks after glue-ups; a light wax on the bar keeps the slide smooth.
• Alternate clamp positions top and bottom on wide panels to minimize bow.
• Tighten in stages, working from the center outward, to avoid shifting the assembly.
• Use cauls for ultra-flat panel targets or where the workpiece edge is uneven.
• Engage the quick release only when the handle is fully backed off.

Value and who it’s for

As a “48-inch class” parallel clamp, this model hits the key benchmarks: high, controlled pressure; square jaws with non-marring faces; long, stable opening; and an ergonomic handle that makes heavy clamping feel manageable. It’s overkill for small craft projects, but for furniture-scale work—tables, cabinets, doors, long edge-glue panels—it’s exactly the tool I reach for. Compared to pipe clamps, you gain alignment and surface protection. Compared to lighter F-styles, you gain stiffness and parallel pressure that stays true under load.

Recommendation

I recommend the 48-inch parallel clamp for anyone building casework, panels, and furniture at full size. The combination of real clamping force, square parallel jaws, long opening, and a comfortable handle makes it a reliable, confidence-boosting tool for glue-ups that matter. Its weight and size are the trade-offs, along with a quick-release that prefers a clean bar and zero load, but those are manageable in routine use. If your projects regularly stretch past 36 inches and you care about alignment and surface quality, this clamp earns its spot on the rack.
