Features
- Micrograin carbide-tipped cutting edges for wear resistance
- Double-flute geometry for improved finish on harder materials
- Smooth contour profile routes laminate edges flush and rounded in a single pass
- Slight radius to reduce or eliminate need for filing
- Reinforced, fully hardened and tempered steel shank for stability and reduced vibration
- Heat-treated tips for increased hardness and temperature resistance
- Robust webbing and heavy cutter backing to balance cutting and extend tool life
Specifications
Part Number | 85316M |
Diameter (D) | 1/2 in |
Working Length (L) | 3/8 in |
Shank | 1/4 in |
Tip Material | Micrograin carbide |
Body Material | Steel |
Flutes | Double flute |
Pack Quantity | 1 |
Color / Finish | Blue |
Warranty | 1 Yr |
Product Dimensions | 0.43 in x 3.25 in x 5 in |
Weight | 0.06 lb |
Upc | 000346465433 |
Barcode / Gtin | 13390108 |
Typical Applications | Laminate trimming, edge forming, mortising, surface forming, cabinetry/joinery |
Related Tools
Related Articles

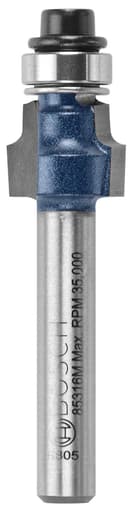

Carbide-tipped router bit with a smooth-contour profile for routing laminate edges flush and rounded in a single pass. Features a double-flute geometry for improved finish on harder materials and a reinforced, hardened-and-tempered steel shank for stability and reduced vibration. Intended for trimming laminate and edge forming; can also be used for mortising and surface forming in wood and some plastics.
Model Number: 85316M
Bosch 1/2 in x 3/8 in Carbide-Tipped Smooth-Edge Laminate Trim Router Bit Review
Why this little trim bit has been living in my trimmer collet
I reach for the Bosch laminate trim bit whenever I need to flush and soften an edge in one pass. It’s a compact, double-flute carbide-tipped bit with a 1/2-inch diameter cutter, 3/8-inch working length, and a 1/4-inch shank—tailor-made for laminate trimmers and compact routers. The draw isn’t hype or a fancy profile. It’s the consistently clean cut, the quiet stability under load, and the practical “slight radius” that leaves a safer, smoother edge right off the router.
Build and design
Bosch’s design choices here are pragmatic. The cutter is micrograin carbide tipped, heat-treated for durability, and backed by a surprisingly robust web and heavy cutter backing for a bit this size. That backing matters: it reduces deflection and keeps the cutting edge tracking true when you hit harder stock or adhesives. The shank is fully hardened and tempered steel, and mine runs true with negligible runout in both a compact trimmer and a mid-sized router.
The double-flute geometry is the right call for laminate and hardwoods: two flutes deliver a better surface finish than a single flute without demanding an aggressive feed. The bearing rides smoothly with no detectable play, and it holds up well to contact with factory laminate edges and plywood veneers. The blue finish isn’t a performance feature, but it’s a quick identifier in a crowded bit rack.
Setup and compatibility
With its 1/4-inch shank, this bit belongs in compact trim routers and laminate trimmers. It’s compatible with full-size routers too, but there’s no advantage to putting a short, 3/8-inch working length bit in a 3-hp motor unless you’re already set up on a larger base. The working length is deliberate: you’re trimming laminate overhangs and breaking the edge, not hogging material. That shorter length also reduces leverage and vibration.
I’ve run it between 20,000 and 28,000 RPM. On laminate and hardwood edging, 24,000–26,000 RPM with a steady feed gives me the cleanest result. For plastics, I slow down a touch and keep the passes moving to avoid heat buildup.
Performance on laminate
This is where the bit earns its keep. On countertop-grade high-pressure laminate, the bearing tracks the substrate reliably and the double-flute cutter leaves the laminate flush with a slight, uniform radius. That small roundover is subtle but effective—it takes the sharpness off the edge and often eliminates the need for a file pass. On straight runs, I can go in one continuous pass without chatter. Around sink cutouts and tight radii, the bit stays planted, and the bearing transitions cleanly across seams and substrate changes.
Trim quality at the end of a run is often where bits betray themselves. With this one, I’ll make a short, controlled climb cut right at the exit to prevent blowout, then finish in the standard direction. The edge remains crisp, with no white stress marks on darker laminates. Adhesive squeeze-out doesn’t gum up the edge as quickly as I expected; a quick wipe of pitch remover every few jobs keeps the flutes sharp.
Performance in hardwoods and panels
Although it’s defined as a laminate bit, the grind and geometry do nicely in hardwoods. I’ve used it to flush-trim maple edging, and it leaves a surprisingly refined surface for a non-spiral bit—credit to the double flutes and solid balance. The bit resists tearout on long grain and holds its own across mild reversing grain, though I won’t pretend it replaces a compression spiral when veneer faces are at risk. For plywood, the bearing helps keep the cut under control, but be mindful of the top veneer—light passes and a climb cut at the ends prevent chip-out.
The slight radius works well on hardwood edging too. It gives a finish-ready, fingertip-friendly corner straight off the router. For a larger roundover, you’ll still want a dedicated roundover bit, but the built-in ease-over is perfect for casework and cabinet doors when you want to skip a separate pass.
Plastics and “some” synthetics
Bosch lists “some plastics,” and that aligns with my experience. Acrylic and polycarbonate cut cleanly if you keep the speed moderate and the feed steady. The double flutes polish more than they evacuate, so heat can accumulate. Short passes and letting the material cool between edges keeps things clear. I wouldn’t choose this bit for thick acrylic pattern routing, but for edge ease-over and light flush work, it performs predictably.
Mortising and surface forming
The spec sheet mentions mortising and surface forming. Yes, you can plunge and nibble shallow mortises or flatten small proud patches with the bit, but the 3/8-inch working length and bearing make it more of an opportunistic use than a daily driver. If you need deep mortises or aggressive flattening, switch to a solid-carbide spiral or a bottom-cleaning bit. Where this Bosch shines is controlled, bearing-guided trimming and edge refining.
Cut quality, stability, and vibration
Balance is excellent. Mounted in a trim router, it runs smoothly and generates little to no tingling in the grip, which tells me the shank and grind are straight and the bearing is true. Chatter only appears if I set the router base too shallow and let the bit hang; seat it properly and the cut is quiet and controlled. On harder woods, the double-flute geometry produces a fine, almost planed look that sands out with a couple of passes at 180–220 grit.
Durability and maintenance
Micrograin carbide and heat-treated tips translate to real-world longevity. After extended sessions on maple edging and multiple laminate installs, my cutting edges are still crisp with only light honed touch-ups. The bearing has remained smooth, and the screw hasn’t walked loose—still, I check it before each day’s work. Resin build-up is manageable; a soak in a dedicated bit cleaner brings the flutes back to bright without scrubbing.
The reinforced shank and heavy cutter backing do appear to reduce micro-chipping along the edge. I’ve seen cheaper bits develop tiny fractures after catching on brittle laminate edges; this one shrugs off those encounters.
Limitations and caveats
- Working length is only 3/8 inch. That’s ideal for laminate but limiting for thicker edge-banding or deep template routing.
- 1/4-inch shank means it’s not for high-load, deep passes. Keep the work within its comfort zone.
- Double flutes favor surface finish over chip evacuation. On resinous or thermoplastic materials, watch heat.
- If you need zero-radius, perfectly square laminate edges, the built-in ease-over isn’t what you want for that specific look.
Value and where it fits in a kit
You can find cheaper trim bits, but most cut rougher, vibrate more, or dull sooner. This Bosch bit sits in the dependable tier: not flashy, not a specialist, just a reliable day-to-day cutter that rewards proper setup with clean edges. The 1-year warranty is standard for a cutter like this; the more meaningful assurance is the steel shank’s stability and the carbide’s wear resistance.
For installers, cabinet shops, and serious DIYers, it fills the “flush-and-finish” niche. If you regularly do laminate countertops, apply hardwood edging to casework, or want a single pass that leaves a touched-up edge, it earns its drawer space.
Tips for best results
- Set the bearing to just kiss the substrate, not lean into it. Let the bearing guide, the cutter trim.
- Run 24,000–26,000 RPM on compact trimmers for laminate; slow down slightly for plastics.
- Take a brief climb cut at the end grain or exit points to prevent chip-out, then complete the pass normally.
- Keep the baseplate flat and supported; a tipping router is the fastest path to chatter.
- Clean the bearing and flutes periodically; a clean bit cuts cooler and straighter.
Recommendation
I recommend this Bosch laminate trim bit for anyone who needs clean, flush-trim results with a built-in, slight radius in a single pass. It’s stable, sharp, and predictable across laminate, hardwood edging, and select plastics. The double-flute grind and reinforced shank minimize vibration and leave a refined surface, while the compact working length keeps cuts controlled. It’s not the right tool for deep mortising or heavy template routing—use a spiral in those cases—but for its intended tasks, it performs exactly as a shop-friendly, field-ready trim bit should.
