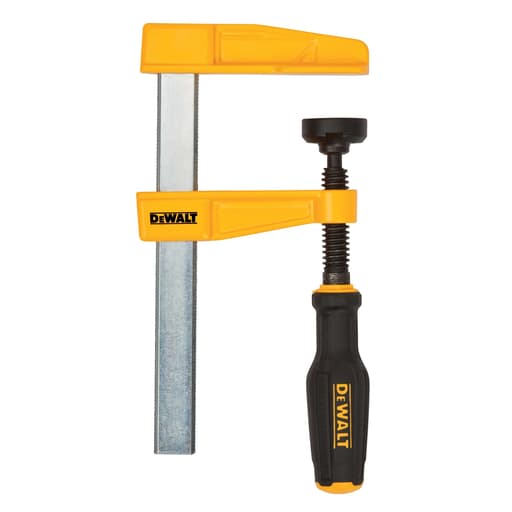

DeWalt 4 in Bar Clamp

A handy 4-inch clamp I actually reach for

I reach for a 4-inch clamp more often than I thought I would. In a shop full of big F-clamps and parallel jaws, this compact DeWalt 4-inch clamp has carved out a daily role holding stop blocks, pinning small glue-ups, and taming workpieces for quick drilling or routing. After weeks of use on furniture repairs, jig building, and general shop tasks, I’ve come to appreciate what it does well—and where its limits become apparent.

Build and ergonomics

This is a small bar clamp with a 4-inch maximum opening and a 2-inch throat depth, which keeps the tool maneuverable in tight spaces. The steel bar tracks smoothly, and the head and moving jaw align well under typical, centered loads. The handle is a quad‑lobe, bi‑material design that feels grippy without being gummy. The lobes give you tactile “index points” so you can crank down comfortably with one hand, and the overmold doesn’t twist or slip once you start applying pressure.

The overall hardware feels sturdier than many bargain mini clamps. The release trigger has a positive action—no mush, no surprise slips—and the ratchet steps are close enough to dial in pressure without jumping from “loose” to “too tight.” It’s easy to adjust with a single hand while your other hand holds the work.

Clamping force and control

DeWalt lists a 330 lb clamping capacity. In real shop use, I never needed to push it that hard, and I’m not convinced mini clamps benefit from absolute maximum force anyway. What matters is controllable pressure that doesn’t creep. Here, the clamp shines. I could slide it into place, snug it with light pressure, check alignment, and then add another quarter‑turn or two without the workpiece skating around.

On edge-banding, miter splines, and small box glue-ups, I got consistent squeeze-out lines and square results. For light fixture assembly and holding guides to a bench, it held position through vibration from a trim router without slipping. Under off-center loading, there’s a small amount of jaw rack—as you’d expect on a short-throw bar clamp—so I learned to keep the pressure centered on the pad or use a caul for better distribution.

Passive lock that behaves

The passive lock mechanism resists back‑driving under load. That’s jargon for “it stays where you put it.” I tested it by clamping a scrap to my bench and rapping the handle; no click‑back, no drift. The benefit is confidence: you can set a clamp, shift your hands, and come back to find the same pressure you left. The release is predictable and gradual, so you can bleed off pressure without sudden pops that disturb delicate setups.

Pads and jaw design

The removable jaw pads protect work and help spread force across a slightly wider footprint than the naked jaw. Contact is flat and square, which helps keep small assemblies aligned. Over time, I noticed the pads can pick up glue and dust; a quick wipe with a damp rag keeps them grippy. I did manage to loosen one pad by over‑torquing on a hard maple offcut, which reminded me to apply clamp pressure in stages and use cauls when bearing on sharp edges. Pressing the pad back on restored a snug fit, and it’s held since. If you’re routinely clamping rough stock or sharp corners, consider adding sacrificial blocks to save the pads and improve grip.

Size and reach: know the mission

A 4-inch opening and 2-inch throat depth define this tool’s mission: it’s for small to medium tasks and tight spots. That sounds obvious, but it’s worth stating. This clamp excels at:

• Securing stop blocks and fences to a miter gauge or sled
• Pinning small glue-ups like picture frames, boxes, and drawer parts
• Holding hardware in place for pilot holes
• Clamping edge banding and trim while the adhesive sets
• Acting as a third hand during layout and alignment

It’s not the right choice for panel glue-ups, heavy construction lumber, thick countertops, or situations where you need deep reach. I pair it with larger F‑style or parallel clamps for those jobs and let this one handle the finesse work.

Comfort in extended use

On a day spent building a jig with a dozen repetitive cuts and setups, I appreciated the handle shape. The quad‑lobe design distributes pressure across the palm and fingers, reducing hot spots. The release trigger is positioned so you don’t have to contort your grip to open the jaws—just squeeze, reposition, and close. This makes one‑handed operation natural, which matters more on a small clamp than you might think.

Durability and maintenance

After routine shop use, the bar remains straight, the ratchet teeth are crisp, and the handle shows no signs of loosening or twisting on the shaft. I did see a bit of pad wear from abrasive dust, which is par for the course. The best maintenance is simple: keep the bar clean, brush the teeth occasionally to prevent packed dust, and avoid cranking down on sharp edges without a caul.

The limited lifetime warranty is reassuring. While I don’t expect to need it for typical light‑duty use, it’s good to know support exists if a mechanism fails unexpectedly. As always, warranties won’t cover misuse, so treat it like a precise tool rather than a pry bar, and it should last.

Performance versus alternatives

Compared to common mini bar clamps from other brands, this one offers:

• Slightly better torque comfort thanks to the quad‑lobe handle
• A more predictable release that doesn’t “snap open”
• A bar and slide that feel less prone to flex under moderate load

Where competitors sometimes edge it out is in optional features like easy pad replacement or quick conversion to a spreader. This clamp is purpose-built; it clamps, and that’s about it. If your workflow relies on spreading or specialized jaw attachments, you may want a different model in the same size. If you primarily want reliable one‑handed clamping in the 4-inch range, this hits the mark.

Practical tips for better results

• Pre‑position the fixed jaw: Slide the moving jaw to just behind the work, then tighten—less travel means better control.
• Use cauls: A small strip of hardwood prevents jaw rack, protects edges, and spreads force.
• Stage your pressure: Bring the piece into alignment at light pressure, then tighten incrementally to avoid skating.
• Keep pads clean: Glue and dust reduce grip; wipe them occasionally.
• Don’t over‑reach: If you’re routinely maxing out the 4-inch opening or 2-inch throat, step up to a larger clamp for safety and accuracy.

What I’d change

Two tweaks would elevate this clamp further. First, slightly thicker or more securely retained pads would improve durability for users who push the upper range of the clamp’s force. Second, etched or printed graduations on the bar would make repeat setups quicker. Neither is a deal‑breaker, but both would add polish to an already capable tool.

The bottom line

The DeWalt 4‑inch clamp is a compact, one‑handed workhorse for small assemblies, jig building, and everyday shop holding. It delivers controlled pressure, reliable locking, and comfortable ergonomics in a size that fits where larger clamps can’t. Respect its limits—opening, throat depth, and the reality that it’s a light‑duty tool—and it rewards you with repeatable results and minimal fuss.

Recommendation: I recommend this clamp for anyone who needs a dependable, one‑handed 4-inch option for light to medium duty tasks. It’s particularly well‑suited to woodworkers, DIYers, and makers who do a lot of precision setups and small glue-ups. If you need deep reach, heavy clamping force, or spreading functionality, look to a larger or more specialized clamp. But as a compact, everyday helper, this one earns a permanent spot on my bench.
