Features
- Integral clutch and anti-rotation E-CLUTCH system for safety
- Minimizes user fatigue by reducing vibration effects
- Maintains speed under heavy loads
- Speed control for different material types
- Combined drilling and demolition capability
- Compatible with DEWALT Tool Connect app for tracking
- Service brush light indicates when maintenance is needed
Specifications
Amps [A] | 15 |
Chuck Size [In] | 1-7/8 |
Chuck Type | SDS Max |
Color | Yellow |
Cord Length [Ft] | 13 |
Has Led Light? | Yes |
Impact Energy (J) Epta Value | 13.3 Joules |
Number Of Pieces | 2 |
Power Source | Corded |
Product Weight [Oz] | 240 |
System | SHOCKS System |
Used For Chipping? | Yes |
Application | Mechanical and Plumbing, Drilling and Demolition, Masonry and Concrete |
Type | Rotary Hammer |
Shank Type | SDS Max |
Chipping | Yes |
Variable Speed Dial | Yes |
Rotation Control | E-Clutch |
Vibration Control | Shocks |
Impact Energy In Joules(epta) | 13.3 Joules EPTA |
No Load Speed (Rpm) | 177–355 RPM |
No Load Speed (Bpm) | 1350–2705 BPM |
Optimum Drilling Range | 3/4" – 1 3/4" |
Maximum Diameter | 5" |
Number Of Speed Dial Positions | 7 |
Length | 21.4" |
Height | 11.5" |
Width | 4.5" |
Weight | 20.9 lbs |
Emission Sound Pressure Level D B(a) | 98 LpA |
Sound Power Level D B(a) | 109 LWA |
Uncertainty Of Given Sound Level D B(a) | 3 K |
Drilling Into Concrete (Vibration Value Ah,Hd) | 9.6 m/s2 |
Uncertainty K Vibration | 1.5 m/s2 |
Chipping/Chiselling (Vibration Value Ah,Cheq) | 9 m/s2 |
Warranty | 3 Years |
Related Tools
Related Articles
This rotary hammer is designed for heavy-duty applications such as drilling into concrete and masonry. It features an anti-rotation system that detects motion and shuts down if necessary. The tool provides consistent performance under load and is suitable for various drilling tasks.

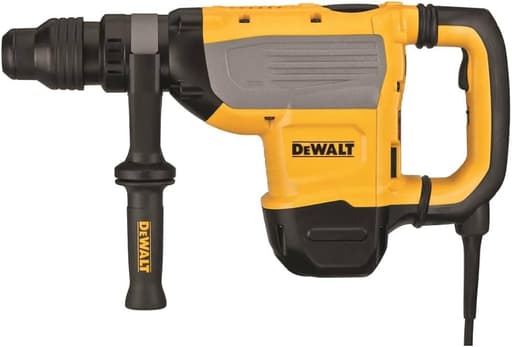

Model Number: D25733K
DeWalt 1-7/8 in. SDS MAX Rotary Hammer Review
The DeWalt D25733K 1-7/8 in. SDS MAX Rotary Hammer is a powerhouse designed for demanding tasks in concrete and masonry. From the moment I unpacked it, I could tell this tool was built with durability and performance in mind. The bright yellow color is iconic of DeWalt tools, and the robust build immediately inspires confidence.
Design and Build Quality
The D25733K boasts an all-steel chuck which is, without a doubt, one of the best in the market. It grips drill bits securely, ensuring there’s no slippage during operation. The tool is on the bulkier side, weighing in at a hefty 20.9 lbs, which might be a concern for some users, especially for extended use. However, this weight adds to the tool’s stability and control when performing heavy-duty tasks.
The 13-foot cord offers ample reach, eliminating the constant need to plug and unplug when moving around a workspace. The tool also features a built-in LED light, a thoughtful addition for those working in dimly lit areas.
Performance
Performance-wise, the D25733K does not disappoint. It’s equipped with a powerful 15-amp motor that generates an impact energy of 13.3 joules, making it ideal for drilling into concrete, masonry, and even chipping through some of the tougher materials. The rotary hammer maintains its speed under heavy loads, thanks to its speed control feature, which allows for different material types. The variable speed dial is a useful feature, offering seven positions that enable precise control over the drilling speed, ranging from 177 to 355 RPM.
One of the standout features is the E-CLUTCH system, an anti-rotation technology that detects any sudden motion and shuts down the tool to prevent any potential injury. This system, combined with the SHOCKS vibration control, significantly reduces user fatigue and enhances safety during prolonged use.
Versatility
The versatility of the D25733K is one of its strongest points. It’s not just a drilling tool; it also tackles demolition tasks with ease. Whether you are chipping away at concrete or drilling into masonry, this tool can handle it all. The integral clutch provides additional safety by reducing the high-torque reaction, which can be particularly beneficial when working with hard materials.
However, it’s worth noting that the tool doesn't come with a chisel feature, which might be a deal-breaker for some. If you’re primarily looking for a tool to remove old tiles or perform similar tasks, this might not be the best fit.
User Experience
Using the D25733K is a generally positive experience, albeit with some minor drawbacks. The tool’s weight can be cumbersome, especially for those not accustomed to handling heavier equipment. On the flip side, the weight adds stability, which is crucial for precision work in heavy-duty applications.
The SHOCKS system does a commendable job in minimizing vibration, making it more comfortable to use over extended periods. This is particularly important for professionals who might be using the tool for several hours a day.
Additional Features
One of the modern features that sets the D25733K apart is its compatibility with the DEWALT Tool Connect app. This app allows users to track the tool, manage inventory, and receive maintenance alerts. Speaking of maintenance, the service brush light is another handy feature that indicates when it’s time for a brush change, ensuring the tool remains in optimal working condition.
Pros and Cons
Pros:
- Powerful 15-amp motor with 13.3 joules of impact energy
- Robust all-steel chuck
- E-CLUTCH anti-rotation system for added safety
- SHOCKS vibration control system
- Variable speed dial with seven positions
- Compatibility with DEWALT Tool Connect app
- Service brush light for maintenance alerts
Cons:
- Heavier and bulkier than some other models
- No chisel feature
- Might be overkill for light-duty tasks
Conclusion
In conclusion, the DeWalt D25733K 1-7/8 in. SDS MAX Rotary Hammer is a solid investment for professionals and serious DIY enthusiasts who need a reliable and powerful tool for heavy-duty applications. Its robust build, powerful motor, and advanced safety features make it a standout choice for demanding tasks in concrete and masonry.
While it might be heavier and bulkier than some other options, the added weight contributes to its stability and control, which can be a significant advantage in precision work. The absence of a chisel feature is a drawback, but for those who primarily need drilling and demolition capabilities, this tool excels.
I would recommend the D25733K to anyone looking for a high-performance rotary hammer that delivers consistent results and prioritizes user safety and comfort. Just be prepared for its weight and ensure it aligns with your specific needs and applications.
