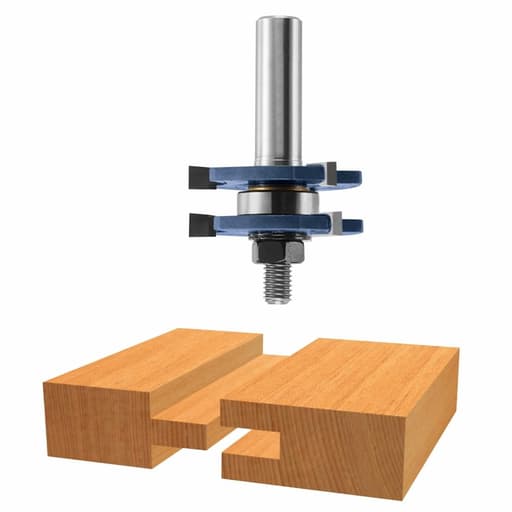

Bosch 1-7/8 In. x 1/4 In. Carbide-Tipped Tongue and Groove Bit

A tongue-and-groove joint is only as good as the bit that cuts it, and Bosch’s 1/4-inch shank T&G bit has earned a spot in my router table. I put this carbide-tipped cutter to work on a mix of maple, white oak, and pine, cutting panels and cabinet backs that needed tight, repeatable joints. It’s a one-piece design that handles both the tongue and the groove by changing bit height, which keeps setups simple and alignment consistent.

Build and specs that matter

The version I used is the 84623M: 1/4-inch shank, 1-7/8-inch diameter, and a 1/4-inch-wide profile. The carbide tips are well-ground and arrive sharp, with crisp edges and even geometry across both cutters. A 1-7/8-inch diameter is on the larger side for a 1/4-inch shank, so it’s a bit that demands a router table and a sensible RPM, but the mass also helps with smooth cuts once dialed in.

Bosch offers a 1/2-inch shank variant in this family. If your router supports it, I’d lean that way for heavy hardwood runs. On the 1/4-inch shank I limited myself to moderate passes and got glassy cuts without chatter.

Setup and dialing in

I set the fence flush to the bearing and started with the groove. On 3/4-inch stock, I centered the groove by taking a light pass, flipping the board, and taking a second pass. If both cuts shave the same amount, you’re centered. Once that was dialed, I locked the fence and didn’t touch it again; only bit height changed between the groove and the tongue.

For the tongue, I raised the bit until the two outer cutters removed the cheeks and left a clean, uniform 1/4-inch tongue. This is where test stock is your friend. I snuck up on a friction-fit by making tiny height adjustments—no more than a pencil line thickness at a time. If you’re chasing a perfect “slide with light resistance,” blue painter’s tape makes a great micro-shim: one strip on the fence will change the cut by a few thousandths, letting you tailor the tongue without risking a big move at the collet.

A few tips that helped me get repeatable results:
- Keep the same reference face down on the table for both groove and tongue passes to guarantee flush faces.
- Use featherboards both on the fence and table to maintain constant pressure; consistency is half the battle with tongue-and-groove.
- Run the router at a reduced speed for a large-diameter bit. I had the best results at roughly 12,000–14,000 RPM.
- Take two light passes rather than one heavy pass on hardwoods. It keeps heat down and edges crisp.
- On end grain (for frame members), back up the cut with a scrap to avoid blowout.

Performance in real stock

In maple and oak, the Bosch bit produced clean walls in the grooves and dead-flat cheeks on the tongues. The carbide edges leave a surface that needed no sanding to assemble. In pine, the cut quality was predictably excellent, though I still took conservative passes to prevent fuzzing. On veneered plywood, I could get acceptable grooves by scoring with a shallow pass first and using a zero-clearance fence, but a dedicated plywood bit will protect fragile veneers better. For solid wood paneling, cabinet backs, and flooring-style joinery in 3/4-inch stock, this bit excels.

Fit was easy to tune. With the fence locked and only height adjustments in play, the tongue landed perfectly centered in the groove as long as I kept a consistent face reference. If you change faces between passes, you’ll introduce minor offset—avoid that, and the results are impressively flush out of the table.

Stability and power needs

With a 1/4-inch shank, you’re asking a lot of the collet when spinning a 1-7/8-inch cutter. I ran it in a 2-1/4 HP router mounted in a sturdy table and had no issues. I wouldn’t run this in a trim router or freehand. The moment you slow the RPM and use featherboards, the cut smooths out and chatter disappears. If you anticipate long runs in dense hardwood or extra-wide pieces where control is harder, the 1/2-inch shank version would be the safer, smoother choice.

Durability and maintenance

The carbide tips held their edge through a sizeable batch of oak without a noticeable drop in cut quality. As with any carbide, performance is as much about cleanliness as sharpness: pitch build-up creates heat, and heat kills edges. A quick soak in pitch remover and a soft brass brush brought the bit back to “like new” between sessions. The brazing looked clean and even, and there’s enough carbide meat for a professional resharpening down the road, which extends the tool’s value.

What I liked

• Cut quality: Clean, square cheeks and smooth groove walls right off the bit, minimizing post-cut work.
• Simple, consistent setup: Because it’s a one-piece bit, height changes alone get you from groove to tongue while preserving alignment.
• Carbide that lasts: Edge retention was solid in hard maple and oak, with no microchipping.
• Versatility across common shop tasks: Paneling, cabinet backs, and general-purpose T&G joinery in 3/4-inch stock are well within its wheelhouse.

Where it asks for care

• Shank size vs. diameter: On a 1/4-inch shank, this is a big bit. Run it only in a table, reduce speed, and take light passes. If you have a 1/2-inch collet, that variant will be more confidence-inspiring for production work.
• Fixed 1/4-inch profile: The tongue/groove width is set. That’s perfect for many builds, but if you need nonstandard fits (like a thinner tongue for specialty grooves), you’ll be shimming or switching bits.
• Fence squareness matters: Any out-of-square fence or table translates into a proud or shy tongue. Take five minutes to confirm squareness before you start; it pays off in flush assemblies.

Best-use scenarios

I’d reach for this Bosch bit for:
- Solid-wood paneling and beadboard-style assemblies in softwoods or hardwoods.
- Cabinet backs and casework dividers where a reliable 1/4-inch T&G ties panels together.
- Shop fixtures that benefit from self-aligning T&G joints (jigs, knockdown panels, and stretchers).

If most of your T&G work is in sheet goods or thin stock, a smaller-diameter bit or a plywood-specific set may suit you better. And for production flooring with unusual profiles, a matched two-bit set might give you more flexibility.

Safety notes

Use a router table with a high fence, featherboards, and push blocks. Keep the RPM down for the diameter. Avoid climb cutting except for a very light scoring pass on troublesome grain, and only if you’re comfortable controlling the workpiece with adequate hold-downs. Always test on scrap before committing to your project pieces.

Value and alternatives

In terms of value, this bit sits in a sweet spot. You’re getting Bosch’s grind quality and carbide life without paying premium-set prices. Dedicated two-bit sets add flexibility, but they also add time and cost. For straightforward 1/4-inch tongue-and-groove across common 3/4-inch stock, this one-piece solution is faster to set up and locks in alignment naturally.

If you own a router with a 1/2-inch collet and expect to push a lot of hardwood, the 1/2-inch shank sibling will feel more planted. Otherwise, the 84623M does the job well—as long as you respect its size and work within its comfort zone.

Recommendation

I recommend the Bosch tongue-and-groove bit for woodworkers who need a dependable, one-piece solution for 1/4-inch T&G joints in 3/4-inch stock. It produces clean cuts, keeps setups straightforward, and holds an edge through demanding hardwoods. The caveat is the 1/4-inch shank paired with a large diameter: use a sturdy router table, reduce speed, and take measured passes. If your router supports a 1/2-inch shank and you do high-volume work, consider that variant. For most small to mid-size shops, though, this bit is a reliable, efficient way to get tight-fitting, flush T&G joints with minimal fuss.
