Features
- Extra-hard construction for increased wear resistance
- Designed for high-torque applications
- Manufactured to meet applicable ISO standards
- 1/4 in external hex shank for secure fitting
Specifications
Shank | 1/4" external hex |
Ean/Upc | 0090991521745 |
Model Number | 34609 |
Order Number | 2610001048 |
Pack Quantity | 1 |
Drive End (In) | 1/4 |
Overall Length (In) | 1.125 |
Related Tools
Related Articles

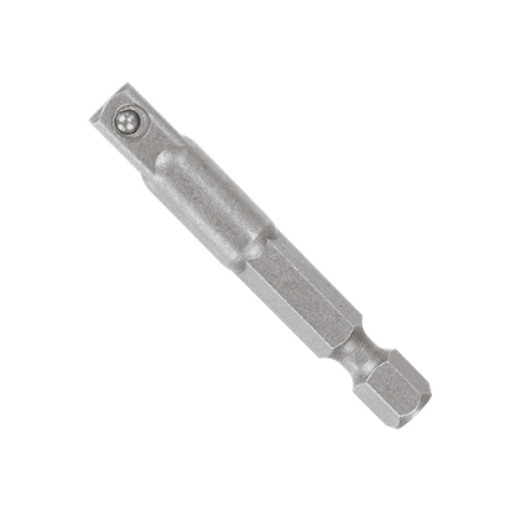

Socket adapter with an extra-hard construction intended for use in higher-torque applications. The adapter is manufactured to comply with ISO standards and has a 1/4 in drive and a 1-1/8 in overall length.
Model Number: 34609
Bosch Extra Hard 1/4 in male square drive for socket adapter x 1-1/8 in Review
Why I reached for this adapter
I keep a handful of socket adapters in my drill drawer for those in‑between tasks where a wrench is overkill and a screwdriver bit just won’t do. The Bosch 1/4‑inch socket adapter (model 34609) caught my eye because of its compact 1-1/8-inch length, “extra‑hard” heat treatment, and ISO compliance. On paper, it promises better wear resistance and the ability to hold up under higher torque than the generic adapters you get in bulk kits. I spent several weeks using it across light automotive, furniture assembly, cabinet installs, and a few shop repairs to see where it shines—and where it doesn’t.
Build and design
The adapter uses a 1/4-inch external hex shank on the tool side and a 1/4-inch male square on the drive side. At 1-1/8 inches long, it’s intentionally stumpy, which is great for tight spaces and keeping overall tool length manageable in a compact driver. The finish is uniform and the ball detent on the square drive has a positive, audible snap with most sockets. Mine measured straight and true, with no visible grind marks or wobble when spun in a quality bit holder.
“Extra‑hard” can mean different things depending on the steel and heat treat, but in practice, this adapter feels harder than the budget bin specials. Edge rounding on the hex shank was minimal after repeated insertions into quick‑release chucks, and the square drive corners didn’t mushroom or chip under normal use.
Fit and compatibility
Fitment is generally good. The hex shank seats properly in both standard three‑jaw chucks and quick‑release bit holders. The square drive mates well with most 1/4-inch sockets I own (mix of brands). Two notes from my time using it:
- The lead‑in chamfer on the square is slightly conservative. That’s fine for strength, but it means some sockets with very shallow broaches won’t fully swallow the square. You may see a tiny gap—around a millimeter—before the socket bottoms out. It didn’t cause wobble for me, but it’s worth noting if you own ultra‑tight, thin‑walled sockets.
- The ball detent spring is on the firmer side. That’s good for retention; you won’t fling a socket across the shop when you blip an impact. It also means snug sockets can require a firm thumb push to release.
Performance with drills vs. impact drivers
I tested the adapter with a 12V drill/driver, an 18V compact drill, and an 18V compact impact driver. With drills, it’s excellent. Driving M6 and M8 machine screws into pre‑tapped holes, running lag screws with pilot holes, snugging hose clamps, and spinning on small fasteners are its bread and butter. The short length keeps things tight to the tool, making it easy to control alignment and prevent cam‑out on the hex shank.
With the impact driver, there’s a threshold where good practice ends and abuse begins. At low to medium impact settings, the adapter handled common tasks like light automotive panel fasteners, hinge bolts, and bracket installs without complaint. On higher settings, hammering on stubborn or seized hardware, you can feel the stress transferring into the adapter. That’s particularly true when you pair a 1/4-inch square with sockets intended for heavier drives. A compact impact will quickly reveal any adapter’s weak points, and this one is no different: it’s not an impact‑rated, torsion‑zone adapter. If you’re expecting it to break free rusted fasteners or lug nuts, you’re mismatching the tool for the task.
Actionable advice: use your impact’s lower settings when you can, let penetrant and heat do their job on stuck fasteners, and step up to a 3/8-inch or 1/2-inch impact‑rated adapter when the job calls for real torque.
Durability and wear
After a few weeks of mixed use, the hex shank shows light polishing but no rounding. The square drive’s corners remain crisp, and the detent ball still snaps positively. I did one intentional abuse test: removing a stubborn M10 bolt that had seen better days. With the impact driver on a high setting, the adapter survived the first few raps, then twisted off at the neck on a hard misaligned hit. That failure is consistent with the geometry and material hardness—extra‑hard helps resist wear, not necessarily the shock loads and flex that torsion‑zone adapters are engineered to handle.
In normal duty, I’d rate the longevity as solid. It resists the slow slop and play that cheaper adapters develop, which translates into better socket alignment and less risk of rounding hardware.
Ergonomics and control
Because it’s short, it keeps the socket close to the tool’s axis. That reduces wobble and helps you start fasteners square, especially one‑handed or in overhead work. The tradeoff is reduced reach; you’ll occasionally wish for a longer adapter to clear a flange or trim piece. I like pairing this one with a 2- to 3-inch wobble extension when I need a little extra room without sacrificing control.
Where it shines
- Quick assembly tasks where speed and control matter more than brute force.
- Narrow clearances, thanks to the compact length.
- Users who prefer firm socket retention. I never had a socket slip off unexpectedly.
- Daily shop use in drills and low‑impact driving where you want an adapter that won’t get sloppy after a week.
Limitations and gotchas
- Not for lug nuts or seized fasteners. A 1/4-inch square is the wrong interface for that level of torque, and this adapter isn’t impact‑rated.
- Fit can be too tight on some shallow‑broach sockets. You may not get full insertion on those specific pieces.
- The short length is a blessing and a curse; fine for control, not ideal for reaching past obstructions.
- No torsion or twist zone to absorb shock. If impact driving is your primary workflow, look for an impact‑rated adapter with a defined torsion section.
Comparisons and alternatives
Compared with the generic adapters that come in mixed bit sets, the Bosch feels better made and holds tolerances longer. Versus impact‑rated adapters with torsion zones, it’s less forgiving under hammering but often a hair more precise under steady torque in a drill. If you’re routinely using an impact driver for heavier work, consider stepping up to a 3/8-inch or 1/2-inch square adapter that’s explicitly impact‑rated; pair it with sockets designed for impact use. For fine assembly and maintenance, this 1/4-inch size remains handier and more maneuverable.
Practical tips for best results
- Use quick‑release bit holders; they reduce side load on the shank and make swaps faster.
- Start fasteners on low speed to avoid cross‑threading; then finish by hand or with controlled torque.
- Keep sockets aligned; side‑loading a short adapter under impact is a recipe for breakage.
- If a socket won’t fully seat, try a different brand with a deeper broach or larger chamfer.
The bottom line
The Bosch 1/4‑inch socket adapter is a compact, well‑made piece that excels in light to medium‑duty work with drills and conservative impact settings. Its extra‑hard construction resists wear and slop, the detent retention is confidence‑inspiring, and the short length boosts control in tight spots. Push it into heavy, shock‑loaded tasks and you’ll find its limit quickly—not because it’s poorly made, but because it’s the wrong tool for that job.
Recommendation: I recommend this adapter for technicians and DIYers who primarily use a drill/driver or a compact impact for light fastener work and want an adapter that stays tight and precise over time. I don’t recommend it if your day‑to‑day involves breaking free rusted bolts, lug nuts, or any application where an impact driver sees high settings regularly. In that scenario, choose an impact‑rated adapter in a larger drive size and save this one for the tasks it’s designed to do well.
