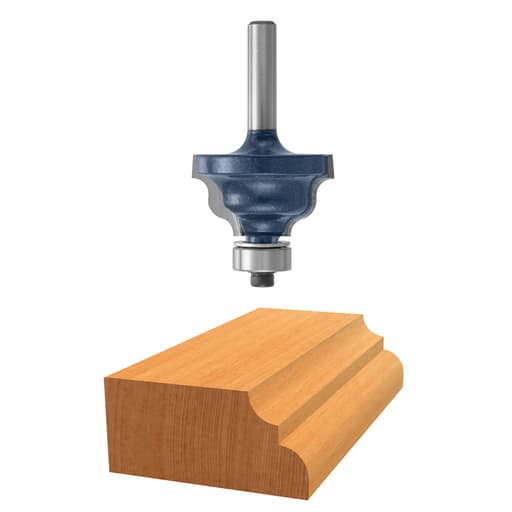

Carbide-Tipped Cove and Bead Bit

Features

  • Carbide-tipped cutting edge
  • Designed to cut cove and bead profiles
  • 1/4 in shank
  • 1 3/8 in cutting diameter

Specifications

Model Number 85604M
Model Number 85604MC
Model Number 85605M
Shank Inch 1/4
Radius (R1) Inch
Diameter (D) Inch 1 3/8
Pack Quantity 1

Router bit for producing cove-and-bead profiles. Carbide-tipped cutting edge for durability. Standard 1/4-inch shank and a 1-3/8-inch cutting diameter. Packaged singly.

Model Number: 85604M

Bosch Carbide-Tipped Cove and Bead Bit Review

5.0 out of 5

Why this cove-and-bead bit earned a spot on my router table

I’m always on the hunt for profile bits that cut cleanly, hold an edge, and don’t make me fight the setup. The Bosch cove-and-bead bit I tested (the 1/4-inch shank, 1-3/8-inch diameter version) checks most of those boxes. It’s a straightforward bit—carbide-tipped, no frills—but it behaves like a well-made cutter should: predictable, balanced, and sharp enough to show off the grain rather than tear it up.

Setup and first impressions

Out of the package, the bit looked tidy: even grind, consistent carbide brazing, and no nicks or rough edges on the cutting surfaces. The 1/4-inch shank is perfectly round and polished; it seated firmly in my collet without any detectable wobble. For test runs, I mounted it in a router table with a stout fence, used featherboards to keep stock tight, and dialed the speed down to roughly the 16,000–18,000 RPM range. With a 1-3/8-inch cutter on a 1/4-inch shank, that lower speed and a lighter touch are the right call.

One thing to note: the published radius for the cove section isn’t provided, so I ran a few test boards to “read” the profile. It’s a medium-scale cove with a small, crisp bead—subtle enough for cabinet doors and drawer fronts, but it still adds a finished, traditional look. On 3/4-inch stock, the proportions feel right, not overbearing.

Cut quality and consistency

The first passes on straight-grained poplar and soft maple were encouraging. The bit left a smooth surface with a gentle, even scallop and a bead that was sharp at the shoulder without fuzzing up the edge. I didn’t see any chatter marks or scalloping that would suggest imbalance. With a sensible feed rate, burn marks were rare; when I intentionally slowed down in maple, a faint glaze started to show on the bead’s crest—but that’s operator error more than a fault of the bit.

On harder woods like white oak and hard maple, the bit still tracked well. Tear-out risk is highest where the cove transitions into reversing grain or on end grain. To manage that, I took three shallow passes instead of one deep push and used a light climb cut as a final kiss to clean the fibers. That routine produced crisp edges without drama.

MDF and paint-grade stock are always good stress tests for carbide. The bit sheared MDF cleanly with only a dusting of fuzz in the cove, which a quick sanding sponge removed in seconds. Plywood can be unforgiving on the outer veneer, but with a zero-clearance fence and light passes, I avoided blowout.

Speed, passes, and safety

Because of the cutter’s diameter-to-shank ratio, it rewards restraint:

  • Speed: 16,000–18,000 RPM on a table-mounted router worked well. Handheld use is possible but less stable with a profile this size on a 1/4-inch shank.
  • Pass depth: Three passes were ideal—two moderate and one light cleanup. Trying to hog the full profile in one go led to extra resistance and a higher chance of chatter.
  • Workholding: Featherboards and a push shoe kept the cut safe and consistent. A sacrificial fence helped when I wanted to “bury” part of the profile to control depth.

Follow those basics and the bit feels composed and predictable, even in tricky hardwood.

Durability and edge life

I put the bit through a small run of cabinet doors in soft maple and a handful of trim pieces in oak. By the end, the edge still felt sharp to the touch, and it continued to leave clean profiles without forcing me to slow my feed rate. There’s no way to quantify carbide quality without lab gear, but in-shop results count for more: the edge held up better than typical budget bits I’ve used, and there were no signs of micro-chipping along the cutting edge.

The silver lining of a simple, common profile like this is resharpening—any competent sharpening service can touch it up when the time comes. Just be aware that repeated sharpening slightly changes the profile depth over time; that’s standard for any profiled bit.

Accuracy and profile control

Without a pilot bearing specified, I treated this as a fence-guided operation. That’s my preference for consistent results anyway, and it let me sneak up on the final reveal of the bead with more control. The bit produced a bead that sits tight and well-defined against the shoulder, with a cove that blends smoothly—no flat spots or awkward transitions.

For consistency across parts, I ran sample sticks and kept them labeled; that made it easy to dial the fence back to the exact profile later. If you’re matching existing millwork, take the time to dial in with scrap. The lack of a published radius means you won’t match by numbers alone.

Where it shines

  • Cabinet doors and drawer fronts where a subtle classical detail is needed
  • Shelf edges and face frames to elevate otherwise square stock
  • Paint- and stain-grade work—profiles are clean enough to show under clear finish but forgiving under paint
  • Short production runs; it’s sharp and consistent enough to keep pace on a batch of parts

Limitations and trade-offs

  • The 1/4-inch shank on a 1-3/8-inch cutter is workable but not ideal. You’ll want a solid router table setup and modest speeds. If you prefer to run bigger profiles handheld or at higher feed rates, a 1/2-inch shank version (if available in a similar profile) would be more confidence-inspiring.
  • The missing radius spec means you’ll do your dialing-in on scrap, not on paper. Not a dealbreaker, just plan a few extra test passes.
  • If your use case demands bearing-guided cuts, verify the specific variant before you buy or be prepared to fence-guide.

Value and alternatives

This bit lands in that dependable mid-tier: more expensive than bargain-bin cutters, but you get better carbide, cleaner grind, and less fuss on the table. If you cut cove-and-bead profiles only occasionally, the durability and cut quality justify the spend versus cheaper imports that chip early or burn easily. Heavy production shops might want a 1/2-inch shank equivalent for the added stiffness, but for most cabinetry and trim work, this one does the job well.

Practical tips from the shop

  • Mark your grain direction and use a light climb pass to finish edges prone to tear-out.
  • Use a zero-clearance fence or add a sacrificial face to your fence to control chip-out at the bead.
  • Keep the work tight to the table with featherboards; this bit rewards consistent pressure.
  • Maintain a steady feed—don’t pause at the apex of the bead, or you’ll risk a burnished line.

The bottom line

The Bosch cove-and-bead bit delivers what I want from a profile cutter: clean, repeatable results, predictable behavior in hardwoods, and an edge that holds up through a project without babying it. The 1/4-inch shank does impose some sensible limits on speed and pass depth, but within that envelope, the bit performs admirably. If you run a router table and don’t mind a measured, multi-pass approach, it’s a reliable way to add a classic profile to your work.

Recommendation: I recommend this bit for woodworkers who want a dependable, clean-cutting cove-and-bead profile for cabinetry and trim on a router table. It’s sharp, balanced, and durable for its class. If you regularly push large profiles hard or prefer handheld routing with aggressive passes, look for a comparable profile on a 1/2-inch shank; otherwise, this one earns its keep.



Project Ideas

Business

Boutique Frame Shop

Offer made-to-order picture frames featuring a signature cove-and-bead profile. Provide standard sizes and custom orders, with hardwood upgrades and finishing options. Sell online and partner with local galleries.


Trim Matching & Repair Service

Provide a small-run moulding duplication service to match existing cove-and-bead trims for historic homes and renovations. Mill to order in common species, priced per linear foot with a minimum run.


Cabinet Edge Upgrade Package

Upsell to local cabinetmakers: profile door edges, shelves, and face frames with a cove-and-bead for a premium look. Offer consistent batches with jigs and stop blocks, delivered finished or sand-ready.


DIY Wainscoting/Moulding Kits

Sell boxed kits including pre-profiled rails/caps with cove-and-bead, cut lists, and install instructions. Market to DIYers and realtors for quick room upgrades; offer color-matched primed or raw wood.


Router Skills Workshops

Host weekend classes on safe router use and profile design focused on cove-and-bead work. Charge tuition, include materials, and retail bits and starter lumber packs as add-ons.

Creative

Heirloom Picture Frames

Build custom hardwood picture frames with a cove-and-bead profile on the inner and outer edges. Rabbet the back for glass and backing, stack multiple passes for deeper relief, and finish with oil or shellac to highlight the profile.


Charcuterie/Serving Trays

Make serving boards with a raised, elegant rim by running a cove-and-bead around the perimeter. Add handholds, a juice groove, and rubber feet. The bead provides a comfortable grip while the cove visually lightens the edge.


Jewelry or Keepsake Boxes

Detail the lid and base with a cove-and-bead to create a refined, classical edge. Use the bead as a visual break line and the cove to soften the transition. Add contrasting splines or inlay for a premium feel.


Cabinet Door and Face-Frame Accents

Add a cove-and-bead to the inner edge of cabinet door rails and stiles or to face frames and shelves. This subtle profile elevates simple Shaker doors and ties cabinetry to existing trim.


Custom Chair Rail/Casing Moulding

Mill short runs of architectural moulding with the cove-and-bead as the primary motif. Combine with straight dados or roundovers to create unique profiles for chair rail, window casing, or mirror surrounds.
