DeWalt Tapered Adapter for Dust Extractors

Why this simple adapter matters

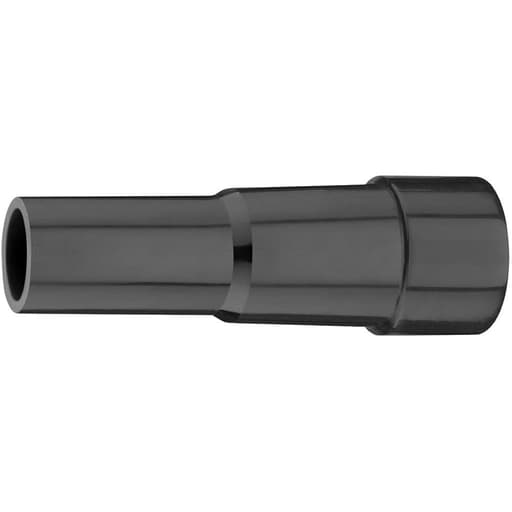

Dust control lives or dies on small parts, and few are as deceptively important as the connector that mates a hose to a tool. The DeWalt adapter is one of those quiet, behind‑the‑scenes pieces that either keeps your workspace breathable and your cuts clean—or has you chasing a hose that won’t stay put. I’ve been using this adapter as part of DeWalt’s dust extraction ecosystem, pairing it with the DWV9000 quick connector and a mix of woodworking, drywall, and concrete tools. It’s a small, tapered sleeve designed to grab onto tool ports with an outer diameter in the 1.14–1.45 in (29–37 mm) range, and it’s lightweight at 0.14 lb. Simple on paper. In practice, it’s a surprisingly effective solution—if your ports live in its size window.

Setup and compatibility

The adapter is intended to be used with DeWalt’s DWV9000 universal connector. In my setup, the hose terminates at the DWV9000, which then snaps onto the adapter. The tapered end of the adapter pushes over the tool’s dust port. Think of it as a two‑piece system: the DWV9000 gives you a secure quick‑connect at the hose, and the adapter provides a friction fit to the tool.

Compatibility is dictated by the tool’s port diameter. Here’s how my roster fared:

• DeWalt grinder with a concrete dust shroud: The sweet spot. The shroud’s port sits right in the mid‑to‑upper part of the adapter’s range, and the fit was firm without extra fuss.
• 1‑1/4 in (about 31.8 mm) ports on routers and sanders: Also a good match. A push‑and‑twist seated the adapter securely.
• 27 mm ports (common on some small orbital sanders): Too small. The adapter’s minimum size is 29 mm, and it won’t grip. No amount of wishful twisting changes that.
• Oversize or oval ports: No go. The taper helps accommodate slight variance, but the fit is designed for round ports within spec.

If you don’t already have the DWV9000, plan on getting it. The adapter is not a standalone hose tip; it’s designed to work as part of that connector system.

In use: concrete, drywall, and woodworking

On a 5‑inch grinder with a shroud, the adapter did the one thing you absolutely need in concrete work: it stayed put. Vibration, sideways load, and fine silica dust are a stress test for any connection. I ran a series of edge grinds and flat passes and never had the adapter walk off the shroud’s port. Suction felt consistent, and the skirt on the shroud kept its seal better than with a looser, generic rubber coupling I used to run.

Drywall is a different kind of punishment—lighter loads, but talc‑fine dust that infiltrates everything. On a cutout tool and a small drywall sander with 1‑1/4 in ports, the adapter seated with a positive, slightly elastic grip. I checked for caking or glazing along the taper after a couple of rooms; a quick wipe was all it needed. No cracking or hardening, which I’ve seen on thinner, lower‑grade plastics that don’t like drywall dust.

In the shop, I used the adapter with a plunge router, a benchtop sander, and a miter saw accessory shroud that conveniently has a 35 mm‑ish round port. The friction fit is the real story here: if you take a second to push and twist to the diameter that matches your port, the connection is strong enough to shake the tool by the hose without popping free—something I try not to do, but it’s a decent stress test. Under sustained sanding, the connection didn’t slowly inch off as heat built up, which is a common failure for softer rubber cones.

Seal quality and suction

A tapered friction fit will never be as perfect as a true, matched quick‑connect on both sides, but for a universal solution, this is about as good as it gets. On ports in the 32–36 mm band, the seal felt tight enough that I didn’t notice any appreciable performance drop compared with a direct, purpose‑built coupler. On the small end of the range (29–31 mm), I could provoke a slight whistle with the vacuum maxed and the hose kinked—basically an extreme case. In normal work, that minor leak didn’t show up in the cut quality or dust capture.

Practical tip: rotate the adapter a quarter‑turn as you seat it. That twisting motion helps the taper bite and evenly distributes the grip, reducing the chance of a local gap.

Ergonomics and handling

With the DWV9000 attached, the overall assembly is compact and doesn’t make the tool feel nose‑heavy. The adapter’s profile is low enough to clear most guards and fences. I appreciate that the exterior is smooth—no ridges to snag on cords or corners. Unlike some rubber couplers, it doesn’t collapse under hose tension, and it resists that “sticky” grab on painted surfaces.

There’s no built‑in swivel at the adapter itself—the DWV9000 handles the connection side—so if your tool relies on the port rotating to prevent hose torque, this won’t add that feature. In my use, the hose management at the vacuum and the DWV9000’s connection were enough to keep things comfortable.

Build quality and longevity

It’s a single, molded piece that strikes a balance between rigidity and give. Too stiff and it would crack; too soft and it would walk off under vibration. After several weeks of varied use, mine shows light burnishing where it mates with ports, but no splitting at the lip or deformation of the taper. Cleaning is as simple as a wipe with a shop towel; for drywall dust, a rinse and dry keeps the surface grippy.

Small note: markings are minimal, so I took a paint pen and labeled it with the compatible size range and “DWV9000” to make sure it stays paired with the right connector in the kit bag.

Limitations and things to watch

• Port size range is real. If your tool has a 27 mm or smaller port, this won’t be your solution without a supplemental sleeve. Likewise, oversized or proprietary shapes won’t be tamed by a simple taper.
• You need the DWV9000. Consider that part of the total system cost and complexity.
• Friction fit depends on the port material. Smooth, glossy plastic ports can be a bit slippery. A clean, dust‑free surface helps, and sometimes seating one step deeper on the taper solves it. If you’re determined to belt‑and‑suspenders it, a thin silicone O‑ring on the tool port can improve the bite without resorting to tape.
• No anti‑static claims. If you’re working in environments where static discharge is a concern, plan your hose and connector choices accordingly.

Practical tips for a better fit

• Seat with a push‑and‑twist. This engages more surface area on the taper.
• Keep mating surfaces clean. Fine dust acts like ball bearings.
• Don’t over‑jam. Find the diameter on the taper that matches your port; forcing it deeper can flare the lip over time.
• Store it off the hose end. Toss it in a small parts bin rather than leaving it hanging where it can get stepped on.

Who benefits most

• Concrete and masonry users running grinder shrouds in the 35–36 mm neighborhood will find it nearly ideal. It stays put under vibration.
• Drywall installers and remodelers with 1‑1/4 in ports on cutout tools and sanders get a quick, repeatable connection without hose clamps.
• Woodworkers with routers, benchtop sanders, and small shrouds in the 29–37 mm band will appreciate the simplicity—especially if you’re swapping between multiple tools during a project.

If your kit leans heavily on tools with 27 mm ports, you’ll want a different adapter sized for that standard or a stepped solution that necks down appropriately.

The bottom line

The DeWalt adapter is exactly what a tapered connector should be: simple, durable, and sized correctly for a common set of ports. Paired with the DWV9000 universal connector, it gives you a quick‑connect system on the hose side and a firm, reliable friction fit on the tool side. In my use across concrete, drywall, and woodworking tasks, it maintained suction, resisted vibration, and didn’t add bulk or hassle.

Recommendation: I recommend the adapter if your tools’ dust ports fall within the 1.14–1.45 in (29–37 mm) range and you’re already using—or plan to use—the DWV9000 connector. It’s a low‑drama, high‑utility piece that keeps dust collection consistent across a variety of tasks. If your ports are smaller than 29 mm or non‑round, look for a different size or a dedicated, tool‑specific coupler; in those cases, this adapter won’t solve your connection headaches.
