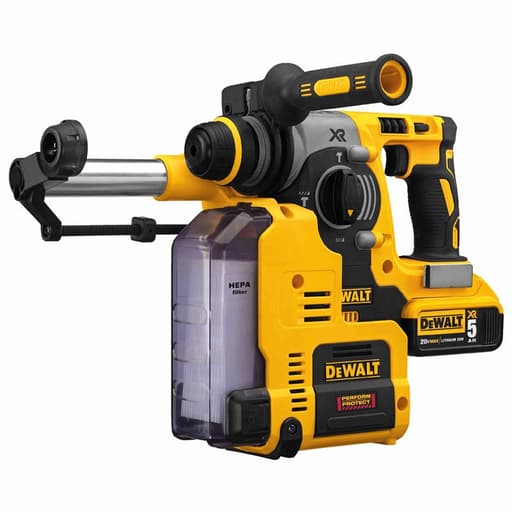

DeWalt Dust Extractor for 1" 20V MAX SDS Hammer

Why I reached for this extractor

Anchoring overhead is where dust control either shines or ruins your day. On recent runs of 3/8- and 1/2-inch mechanical anchors in cured concrete, I attached DeWalt’s compact dust extractor to a 1-inch 20V MAX SDS-plus rotary hammer and kept it on for a full week. The goal was simple: keep dust out of my face, off the slab, and out of the air without dragging a hose and vac around. The extractor’s integrated motor, clear dust box, and on-tool depth control promised a tidy, consistent workflow. Here’s how it fared.

Setup and compatibility

Mounting is straightforward. The extractor replaces the standard side handle assembly on compatible 1-inch 20V MAX SDS hammers (I used it on a DCH273). The quick-release mechanism locks the unit securely without a wrestling match, and alignment stays true even after repeated removals for bit changes and cleanup. Power comes through the host hammer, so there’s no separate battery or cable to manage.

The business end is a replaceable dust nozzle that telescopes along the bit. With carbide bits up to 5/8 inch, the boot seals surprisingly well on both flat and slightly uneven surfaces. For common overhead work—like 1/2-inch drop-in installations—the travel is adequate, and the boot stays planted without needing two hands to hold it in place.

A note on size and weight: at about 1 kg, the unit adds noticeable mass forward of the grip, but the inline design keeps the setup compact. At 340 mm long and 116 mm wide, it remains manageable in lift baskets and in-between-joist spaces where a hose would be a snag magnet.

Controls and depth consistency

The adjustable depth stop is the unsung hero. If you’re drilling anchor holes where depth matters (and it usually does), setting the stop once and repeating holes pays off. I zeroed mine by measuring from the tip of the bit to the desired hole depth and aligning the stop accordingly. Throughout the week, hole depth stayed consistent to within a couple millimeters in concrete, which is plenty precise for sleeve anchors, wedge anchors, and drop-ins. The stop didn’t drift, and the locking action felt positive rather than brittle.

Suction and the power-off delay

Suction performance is where this extractor earns its keep. The integrated motor spins up with the trigger and continues for roughly two seconds after you let off. That short delay sounds minor, but it clears the bit flutes and pulls lingering fines into the box instead of letting them fall back out of the hole. In overhead drilling, that translates to fewer fines raining down your sleeves and less cleanup on finished floors.

On 3/8-inch holes, the boot nearly eliminates visible dust plume. At 1/2 inch, I still got clean holes with very little blowback; only when the dust box was nearing full did I notice a faint haze on some passes. With 5/8-inch bits in hard aggregate, suction remained effective, but I had to empty the box more frequently and keep an eye on the filter to maintain peak performance.

Noise from the extractor is there—it’s a small motor, so you hear the whir—but it’s not harsh or distracting alongside the hammer’s chatter. Vibration transfer to the handle didn’t increase meaningfully compared to running the hammer alone.

Filtration and the clear dust box

The clear dust box is one of those simple features that prevents bad habits. You can see the fill level at a glance and empty it before suction drops. It’s a high-capacity box for its size, and the latch feels secure. I could empty and click it back in with gloved hands without fumbling.

Inside is a replaceable HEPA filter rated at 99.97% at 0.3 microns. In practice, fine silica dust loads any filter quickly. A few tips that kept airflow up for me:
- Empty the box when it’s about two-thirds full, not when it’s packed.
- Tap the filter gently to knock off fines—avoid blasting with compressed air, which can damage the media.
- Keep a spare filter on hand for long days; swapping takes seconds and restores performance.

The replaceable nozzle is smart, too. It’s a wear item, and being able to replace it instead of the whole assembly extends the unit’s life.

Balance and ergonomics

Any on-board extractor adds weight and changes balance. This one keeps things compact and central. Overhead, the added mass actually settled the tool a bit, making it easier to keep the bit straight while the boot sealed to the surface. Working horizontally in tight corners, I sometimes wished for a lower-profile nozzle; the current boot can crowd you against inside corners or around conduit. Visibility to the hole is decent, though the boot naturally obscures the bit tip as it approaches the surface—something you get used to quickly.

The included side handle is comfortable and doesn’t dig into the wrist when you crank down on it. The handle angle adjustment has enough detents to find a neutral wrist position for both overhead and horizontal drilling.

Day-to-day use and maintenance

In real use, the routine becomes: set your depth, drill, let the extractor run out its two-second delay, pull back, and move on. There’s no fussing with hoses or stopping to vacuum out holes before setting anchors; the holes were clean enough for blow-and-brush specs without additional steps in most cases. When I did check with a brush, very little dust remained.

Maintenance is minimal. Empty the box, knock the filter clean, and check that the nozzle boot isn’t packed with fines. The quick-release makes it painless to pop the unit off for a deep clean or to run unsupported drilling where dust capture isn’t required. The overall build—hinges, latches, and the rail that guides the nozzle—feels more robust than typical add-on extractors I’ve used.

DeWalt’s warranty coverage (3-year limited, 1-year free service, 90-day satisfaction guarantee) is reassuring for a component that will live hard, especially on overhead jobs where it’s easy for a tool to take a knock.

Performance boundaries and trade-offs

A few limitations are worth noting:
- Bit size and length: It supports carbide bits up to 5/8 inch. If you routinely drill larger diameters or especially deep holes that exceed the nozzle’s travel, a hose-connected dust shroud and larger vac will be more practical.
- Corners and obstructions: The boot needs a flat landing area to seal. Near a wall edge or around tight pipe clusters, getting a perfect seal is trickier. Expect a little dust escape in those scenarios.
- Filter loading: All HEPA extractors face this, but it’s still a factor. In soft block or very dusty pours, you’ll be emptying and cleaning more often. Keep a spare filter in the kit.
- Not a chiseling solution: It’s for drilling. If your day swings between drilling and chipping, you’ll either remove the extractor frequently or accept that it’s along for the ride.

None of these surprised me, and they’re inherent to compact, on-tool extraction.

Who benefits most

If you live on DeWalt’s 20V MAX SDS-plus platform and do frequent anchor drilling—especially overhead—this extractor tightens up your workflow. It shines for mechanical contractors, electricians, and general trades working in finished or occupied spaces where dust sprawl isn’t acceptable. It’s also a good fit for punch lists and small-batch drilling where setting up a large vac is overkill.

For crews that spend all day drilling large-diameter or extra-deep holes, a high-CFM vac with a hose shroud remains the right tool. But for the most common anchor sizes and depths, the on-tool solution is faster, cleaner, and easier to move with.

Final recommendation

I recommend this dust extractor. It attaches securely, keeps holes clean, and meaningfully reduces airborne dust without the hassle of a hose. The adjustable depth stop improves consistency, the two-second shutdown clears fines before they fall, and the clear box plus HEPA filtration make maintenance simple and effective. Add in the compact form and quick-release, and it’s easy to keep on the hammer rather than treat it as a specialty attachment. For anyone already running a 1-inch 20V MAX DeWalt SDS hammer and drilling anchors up to 5/8 inch, it’s a practical upgrade that pays off in cleaner work, quicker hole prep, and less end-of-day cleanup.
