Features
- 3.5 J impact energy for concrete drilling
- Brushless motor with German‑engineered hammer mechanism
- Anti‑rotation E‑CLUTCH to stop bit rotation in bind‑up situations
- SHOCKS active vibration control to reduce vibration at the handles
- Rotary dial to select operating mode: Drill, Hammer Drill, or Chip
- SDS‑Plus shank (1‑1/8 in. chuck size)
- Dust extraction ready (works with specified on‑board extractor)
- Includes two 20V 6.0Ah batteries and charger
- 360° side handle and depth rod included
- Retractable utility hook for hanging
- OSHA Table 1 compliance when used with specified extractor
Specifications
| Battery Capacity (Ah) | 6 |
| Battery Type | Lithium Ion |
| Battery Voltage (V) | 20 |
| Nominal Voltage (V) | 18 |
| Number Of Batteries Included | 2 (20V DCB206, 6.0 Ah) |
| Charger Included | Yes (Charging base) |
| Chuck Size (In) | 1-1/8 |
| Chuck Type / Shank Type | SDS‑Plus |
| Impact Energy (Joules) | 3.5 J |
| No‑Load Speed (Rpm) | 1000 |
| Motor Type | Brushless |
| Maximum Pieces In Kit | 4 |
| Power (W) | 300 |
| Tool Weight (Lbs) | 9.5 |
| Kit Weight (Lbs) | 19.8 |
| Product Length (In) | 15.3 |
| Product Height (In) | 10.6 |
| Product Width (In) | 4 |
| Color | Yellow, Black |
| Included Accessories | 360° side handle, depth rod, kit box, (2) 20V batteries, charger |
| Warranty | 3 Year Limited Warranty; free service period as provided by manufacturer |
| Recommended Dust Extractor | DWH304DH / D25304DH (for OSHA Table 1 compliance / dust extraction) |
| Modes | Drill, Hammer Drill, Chip (selectable via rotating dial) |
Related Tools
Related Articles

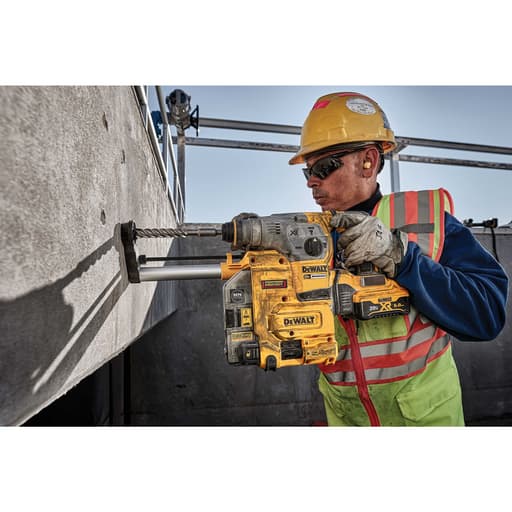

Cordless L‑shape rotary hammer with a brushless motor and a German‑engineered hammer mechanism. Delivers 3.5 joules of impact energy for drilling in concrete and offers selectable modes (drill, hammer drill, chip). The tool includes anti‑rotation E‑CLUTCH protection and an active vibration control system. Packaged as a kit with two 20V batteries, a charger, a 360° side handle, depth rod and kit box. Compatible with DEWALT dust extraction accessories for improved dust control.
Project Ideas
Business
OSHA‑Compliant Anchor Drilling & Doweling
Offer per‑hole or per‑drop services drilling anchor holes for trades (HVAC hangers, handrails, base plates, post‑installed rebar). Pair the rotary hammer with a compliant dust extractor for Table 1 compliance and clean holes for mechanical anchors or epoxy. Market to electricians, plumbers, and small GCs who need fast, dust‑controlled masonry holes without mobilizing their own crew.
Tile, Thinset, and Surface Prep
Provide dust‑controlled removal of tile, thinset, and light topping with Chip mode and wide chisels. Follow with profile prep for new flooring or coatings. The anti‑rotation clutch and vibration control improve safety and speed. Package pricing by square foot and upsell crack chase and repair after demo.
Handrail, Grab‑Bar, and Safety Hardware Retrofits
Specialize in drilling and anchoring for ADA grab bars, stair handrails, and guardrails in concrete and CMU. Use Hammer Drill mode for precise anchor holes, verify depth with the rod, and keep dust contained for occupied facilities. Sell to property managers, clinics, gyms, and senior living with quick turnaround and compliance documentation.
Warehouse Racking & Equipment Anchoring
Mobile anchoring service for pallet racking, machinery bases, safes, and workbenches. Rapid layout, drill, vacuum, and set wedge or screw anchors. Cordless portability speeds work around active warehouses. Offer off‑hours scheduling, pull‑test verification, and certificates for safety audits.
Retail Signage and Fixture Mounting in Masonry
Install dimensional letters, standoff signs, menu boards, and heavy fixtures into brick, block, or concrete. Drill clean, consistent holes with SDS‑Plus bits and dust extraction, chip shallow recesses where flush mounting is needed, and provide template‑driven accuracy. Market to cafés, boutiques, and galleries needing fast, clean installs during business hours.
Creative
Recessed LED Stair Lights in Concrete
Add low-voltage LED step lights to existing concrete stairs. Use Drill mode to pilot, then Chip mode to create shallow pockets and a conduit chase for wiring. The depth rod helps maintain consistent pocket depth, while the dust extractor keeps silica dust controlled. Finish by setting metal back boxes, running cable, and grouting clean edges for a modern, safety-forward look.
Pergola Anchored to Patio Slab
Build a cedar or steel pergola anchored to a concrete patio using wedge or sleeve anchors. Lay out post base plates, then Hammer Drill mode with SDS‑Plus bits to bore precise holes to depth. The anti-rotation E‑CLUTCH adds safety if the bit binds, and cordless power makes positioning easy. Seal and seat anchors, then erect the pergola for shade and style.
Bas‑Relief Concrete Accent Wall
Create a textured feature wall by chipping a controlled pattern into a concrete or block surface. Sketch the design, score with a masonry chisel line, then use Chip mode to remove material in varying depths for a topographic effect. The active vibration control reduces fatigue, and dust extraction keeps the work area tidy. Seal the finished surface to make the texture pop.
Floating Concrete Bench with Pinned Supports
Cast a concrete seat slab and mount it to masonry piers or a retaining wall using epoxy‑set rebar pins. Hammer Drill holes to a set depth with the depth rod, clean with dust extraction, then epoxy the pins. The 3.5 J impact energy speeds drilling in hard aggregate. Slide the bench onto the pins and grout for a clean, cantilevered look.
Modern Trellis and Planter Wall
Install a steel trellis and modular planters onto a block or poured wall. Use Hammer Drill mode to set concrete screws or anchors for standoff brackets. For flush-fitting channels, use Chip mode to recess hardware plates. The 360° side handle aids control for straight, repeatable holes, and the retractable hook lets you hang the tool while staging hardware.
