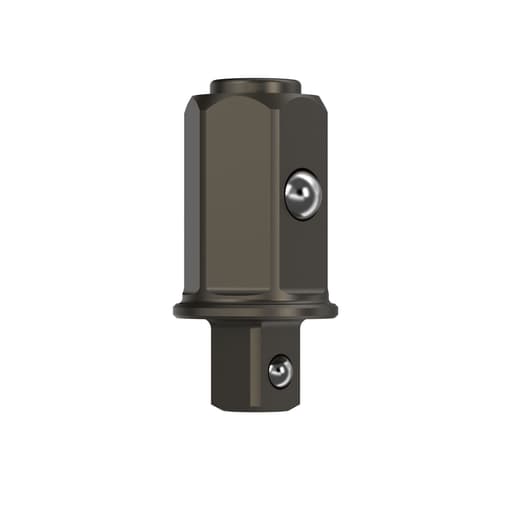

DeWalt 1/4" & 3/8" Anvil Set for Sealed Head Ratchet

Why I added this anvil set to my kit

I spend a lot of time bouncing between light mechanical work, service calls, and small assembly tasks where the ideal drive interface changes constantly. One minute I want a 3/8-inch square drive for standard socket work, the next I’m reaching for 1/4-inch sockets in tight spots, and then I need a hex quick-change for bit-driven fasteners. Swapping entire ratchets is workable, but it adds bulk to the bag and slows me down. That’s the problem this anvil set is meant to solve for DeWalt’s sealed-head 12V ratchet: one compact ratchet body, three drive options.

The idea is simple: keep the DCF500 sealed-head ratchet as your base, and swap between the included 1/4-inch square drive, 3/8-inch square drive, and 1/4-inch quick-change hex anvils as needed. After using the set across a few weeks of mixed work, I’ve reached some clear conclusions about fit, function, and where it shines.

What’s in the box

• 1/4-inch square-drive anvil
• 3/8-inch square-drive anvil
• 1/4-inch quick-change hex anvil

That’s it—no extra hardware, no seals, no instructions included in my package. The anvils arrive finished in black, with clean machining and crisp edges on the drives. The set weighs a touch under a quarter-pound altogether, so tossing it in a pouch is painless.

Compatibility matters—read this before you buy

This set is designed specifically for DeWalt’s DCF500 sealed-head ratchet. It does not fit DeWalt’s 20V sealed-head ratchet (DCF510) or other ratchets. The nose geometry and anvil dimensions on those tools differ. If your ratchet isn’t the DCF500, this set isn’t going to seat or secure correctly.

That may sound obvious, but in practice it’s easy to assume DeWalt anvils are interchangeable across models. They aren’t here. Check your model number before you click buy.

Installation and swapping

Swapping anvils is straightforward if you’re comfortable following a service manual and working carefully:

• Secure the ratchet head and clean the area around the anvil.
• Remove the retaining hardware as outlined in the DCF500’s service instructions.
• Extract the existing anvil, taking note of orientation and any shims or washers.
• Lightly oil the new anvil, seat it fully, and reinstall the retaining hardware to spec. Use threadlocker if the manual specifies it.
• Test for smooth rotation and proper detent action before loading the tool.

On my DCF500, the changeover took a few minutes per swap using basic hand tools. It’s not “tool-less,” but it’s quick enough that I don’t hesitate to do it if a job will benefit from the right drive interface. I experienced no sealing issues or binding post-swap, and the head remained tight with no appreciable wobble.

On-tool feel and performance

• 3/8-inch square drive: This is the workhorse for automotive panels, appliance anchors, and general assembly. The detent held sockets firmly with the expected snap. Under typical ratcheting loads, I didn’t encounter perceptible backlash or deformation. The overall feel matched the stock anvil performance on my DCF500.

• 1/4-inch square drive: The main advantage is clearance and control on smaller fasteners, especially where a 3/8-inch socket body would crowd adjacent components. The reduced mass at the nose gives slightly better balance for finesse work. Again, retention felt positive and concentricity was on target—no perceptible runout in use.

• 1/4-inch quick-change hex: This one expands the ratchet’s utility more than the others. I used it with nut-setters, security bit sets, and a few stubby drill bits where the ratcheting motion was helpful in cramped locations. The collar engaged bits cleanly and released reliably. If you frequently bounce between sockets and bits, this anvil is the star of the kit.

Across all three, engagement was crisp and swap consistency was high—no hunt for seating, no odd tolerance stacking. The head remained sealed and smooth after repeated changes.

Build quality and durability

The anvils present with even finishing and tight tolerances. After several cycles of install/remove and regular use, I saw no burring on the square drives and no flattening at the corners. The hex chuck maintained positive retention without developing slop. Surface wear was typical and purely cosmetic. I can’t speak to years-long durability yet, but early signs are good and in line with what I expect from a factory part.

One important note: this set lists no warranty. For a wear part, that’s not unusual, but it’s worth knowing up front—especially if you’re hard on anvils or expect frequent high-torque abuse.

Real-world advantages

• Less to carry: With the anvil set in a small pouch, I’m effectively carrying three “ratchets” in the footprint of one.
• Faster task changes: It’s inevitably quicker to swap an anvil than it is to dig for a different tool, especially if you keep your kit tight.
• Better tool fit to the job: The hex anvil in particular eliminates the awkwardness of using a socket-to-bit adapter when a direct latch is cleaner and shorter.

These small efficiencies add up when moving through a mixed task list.

Limitations and watch-outs

• Single-model compatibility: It only fits the DCF500. If you’re invested in DeWalt’s 20V sealed-head ratchet or another brand, this won’t help you.
• No instructions in the package: Plan to consult the DCF500 service guide for torque specs and order of operations.
• No included replacement hardware: You’ll reuse what’s on your tool unless you’re sourcing service parts separately.
• No warranty: Manage expectations accordingly.

None of these are dealbreakers for me, but they’re essential context.

Who benefits most

• Mobile techs and installers who prioritize compact kits and regularly alternate between socket sizes and driver bits.
• DIYers with a DCF500 who want to maximize the ratchet’s versatility without buying additional bodies.
• Pros working in tight, clean environments (appliance, HVAC interiors, panel work) where the sealed head and quick-change hex shine.

If your work is heavy on 1/2-inch drive or high-torque fasteners, this set won’t change that equation—it’s designed for lighter-duty precision tasks that suit the DCF500.

Value

Value here comes from flexibility, not bells and whistles. You’re getting three factory-fit drive options that broaden what one compact ratchet can do. Because the kit doesn’t include extras (hardware, seals, warranty), it’s best seen as a functional upgrade rather than a “bundle.” If you’ll use all three anvils regularly—especially the hex quick-change—it pays for itself in reduced tool carry and faster task flow. If you only ever use one drive size, you’re better off replacing the anvil with the single style you need.

Pros and cons

Pros
- Three useful drive options: 3/8 in, 1/4 in, and 1/4 in hex quick-change
- Snug fit, positive detent/retention, consistent tolerances
- Quick, repeatable swaps with basic tools
- Keeps the DCF500 platform versatile and compact

Cons
- Only compatible with the DCF500 sealed-head ratchet
- No warranty listed
- No printed instructions or extra hardware in the package

Recommendation

I recommend this anvil set to anyone using the DCF500 sealed-head ratchet who wants more versatility without adding another ratchet to the bag. The three included interfaces cover most light-to-medium tasks I encounter, swapping is quick once you’ve done it a couple of times, and the fit and finish are what I expect from a factory component. The hex anvil is the standout—turning the ratchet into a credible bit driver that’s shorter and more controlled than running adapters.

Just make sure you have the right ratchet (the DCF500), accept that there’s no warranty, and plan to follow the service guide for installation. If that aligns with your setup, this set is a smart, compact way to stretch one tool across multiple jobs.
