Features
- Cordless operation (battery powered), no compressor or hoses required
- Active flywheel technology to reduce ramp-up time between sequential shots
- Brushless motor for tool drive
- Capable of driving nails up to 3-1/2 in
- Magazine accepts 21° plastic-collated nails
- Redesigned nose for toe-nailing and driving at aggressive angles
- High-strength magnesium magazine for durability
- Field-serviceable springs and driver blade for on-site maintenance
- Compatible with optional extended magazine (DZN920) to hold two strips of nails
- Tool can be tracked with TOOL CONNECT system (Chip sold separately)
- Includes belt hook and non-marring tip
Specifications
Battery Capacity (Ah) | 5 |
Included Battery | DCB205 5.0 Ah |
Included Charger | DCB1104 |
Magazine Angle | 21° (plastic collated) |
Nail Diameter (In) | 0.113 - 0.148 |
Nail Length (In) | 2 - 3.5 |
Maximum Nail Capacity | Up to 3-1/2 in |
Power Source | Battery |
Tool Weight (Tool Only) | 8.65 lb (approx. 3.92 kg / 3920 g) |
Product Height | 13.9 in (352 mm) |
Product Length | 13.9 in (351 mm) |
Product Width | 5.9 in (150 mm) |
On Board Accessories | Belt hook and screw, no-mar tip, hex wrench |
Kit Contents | Nailer, DCB205 5.0 Ah battery, DCB1104 charger, belt hook & screw, no-mar tip, manual, hex wrench, soft bag |
Warranty | 3 Year Limited Warranty; 1 Year Free Service; 90 Days Satisfaction Guaranteed |
Performance Notes | Manufacturer example runtime: up to 530 sq ft of 3/4" OSB subfloor (32 nails per 3/4" OSB 4'x8' panel) and up to 100 ft of wall framing per charge using the DCB205 5Ah battery (actual results vary by application and conditions). |
Related Tools
Related Articles
Cordless framing nailer designed for a range of framing tasks. The tool uses a brushless motor and an active flywheel that remains active for several seconds after trigger release to reduce ramp-up time between sequential shots. It operates on a 20V battery system and eliminates the need for hoses and a compressor. Estimated productivity figures are provided for reference and depend on battery capacity and job conditions.

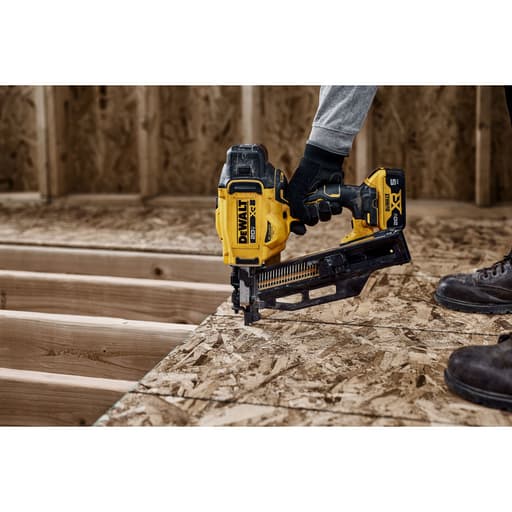

DeWalt 20V MAX Brushless Cordless 21° Plastic Collated Framing Nailer Kit Review
Why I reached for this cordless framer
I’ve been steadily replacing air tools on small framing and punch-list jobs, and a cordless framer is one of the last holdouts. After several weeks with DeWalt’s DCN920, I’m confident saying this is a real jobsite tool, not a convenience gadget. It doesn’t replace a high-output pneumatic on production framing, but it closes the gap more than I expected—and it’s easy to live with.
Setup, kit, and first impressions
The kit includes the nailer, a DCB205 5.0Ah battery, DCB1104 charger, belt hook and hardware, a no-mar tip, a hex wrench, and a soft bag. Out of the bag, the tool feels dense but compact. At roughly 8.6 lb tool-only, it’s on par for a cordless framer in this class. The 5Ah pack brings it into the heavier side of two-handed use, but the balance is good with the battery installed, with just enough nose weight to help you register the tip where you want it.
The magazine takes standard 21° plastic-collated nails from 2 to 3-1/2 inches, 0.113–0.148 inches in diameter. I ran common framing nails in 2-3/8, 3-1/4, and 3-1/2 inch lengths without issue.
Performance and drive quality
- Drive consistency: In SPF studs and plates, the DCN920 set 3-1/4 inch x 0.131 nails flush on the factory setting. For denser stock and LVL, I dialed up depth by a notch or two and still got reliable countersinks without double-tapping. Depth adjustment is positive and predictable.
- Aggressive angles and toe-nailing: The redesigned nose earns its keep. The traction on the tip bites cleanly and doesn’t skate, even when I’m digging in at steep angles on bottom plates or rafter tails. It’s one of the better cordless noses I’ve used for toe-nailing.
- Misfires and jams: Over several thousand nails, I had a couple of minor hang-ups, both with slightly deformed plastic collation. Clear-out is straightforward; the access at the nose and included hex wrench make it quick.
The standout is the active flywheel. It spins up after the first shot and stays alive for a few seconds, which means follow-up shots come fast without that lag many cordless framers suffer. The tradeoff is a gentle whine that lingers briefly after you let go of the trigger. If you’re used to pneumatic instant-on, the rhythm with this tool is as close as I’ve felt from a battery framer. It’s not a bump-fire speed demon, but it’s convincingly quick for sequential work.
Runtime and workflow
With the included 5Ah pack, I was able to frame a modest section of wall and stitch off a couple of sheets of subfloor before swapping packs. Real-world runtime depends on nail length, wood species, and how often you’re letting the flywheel spin between shots. In steady, deliberate work (not rapid bumping), I averaged several hundred 3–3-1/4 inch nails per charge. For continuous production framing, having a second 5Ah battery on the charger keeps you moving without waiting.
The no-hose workflow matters more than the numbers. On ladders, around stairwells, and walking trusses, not dragging a hose changes how you move. I found myself checking off more tasks before resetting staging because I wasn’t tethered to a compressor.
Noise is different, not necessarily lower: there’s the motor/flywheel sound, but you don’t have compressor cycling or hose hiss. On occupied remodels, the overall experience is much less intrusive.
Ergonomics, controls, and visibility
- Balance: Battery in, the tool sits low in the hand and aligns comfortably for both straight-on and toe-nails. It’s not featherweight, and you will feel it over a long overhead session, but the grip and balance mitigate fatigue better than some front-heavy competitors.
- Tip visibility: The line of sight at the nose is clean, and the contact tip’s shape makes it easy to place the nail right on layout marks. The included no-mar tip is handy for sheathing and visible framing.
- Trigger behavior: The initial spin-up is there on the first shot from idle, but the active flywheel feature keeps subsequent shots feeling responsive. If you pause more than a few seconds, you’ll hear the flywheel spool down, and the next shot will have that brief wind-up again.
Magazine, capacity, and reloads
Out of the box, the magazine takes a single strip. If you’re used to two-strip pneumatics, you will reload a bit more often. DeWalt offers an optional extended magazine (DZN920) that doubles capacity, and if you’re using the tool for sustained wall runs or decking, I’d consider it essential. The magazine body is magnesium and feels stout. The feed mechanism kept up with the flywheel without starving the driver in my testing.
Build quality and serviceability
The tool’s build inspires confidence. The magnesium magazine and overall fit/finish feel jobsite-ready. One practical advantage: field-serviceable springs and driver blade. Being able to pop a driver or spring on-site with the included hex wrench means you’re not dead in the water if something wears or bends. That kind of service-forward design is still too rare in cordless nailers.
The tool is also Tool Connect–ready via an optional chip, so if you already track tools, you can add it to your system. It’s a passive convenience, not a reason to buy, but good to have.
Belt hook and small parts
The belt hook is generous and can mount on either side. On mine, the hook released once during a clumsy snag on staging. Retightening the hardware fixed it, but the latch mechanism could use a bit more positive engagement. If you rely on belt hanging while climbing or crawling, I’d keep an eye on the fastener and make sure it’s fully seated and snug. It’s not a deal-breaker, but it’s the only part of the tool that felt a step behind the otherwise robust build.
Materials testing
- SPF framing: Excellent consistency. Flush or slight countersink on 3-1/4 inch nails was routine.
- Engineered lumber (LVL): Needed a depth tweak, but the tool still set 3-1/2 inch nails cleanly. No bouncing off dense glue lines when striking square.
- Sheathing and subfloor: With the no-mar tip and a lighter depth setting, stitching off OSB panels was predictable. The tip traction helped on edges without marring.
- Mixed nails: I ran a mix of 21° plastic-collated nails from different brands across the 0.113–0.148 diameter range. The tool fed them reliably so long as the strips were not warped or overheated in the sun.
Maintenance and upkeep
Daily maintenance is minimal—blow out debris around the nose, check the depth wheel, and confirm the magazine spring tension. The included hex wrench rides on the tool, so clearing a stubborn jam or making a nose adjustment isn’t a hunt through your bags. Keep the contact tip clean; buildup there can affect depth consistency on dense stock.
What I’d change
- Belt hook engagement could be more secure, and the hardware would benefit from a threadlocker treatment from the factory.
- Include the extended magazine option in a “production kit” alongside a second battery. Single-strip capacity is fine for punch-list and small framing, but two strips better suit the tool’s performance.
- A quieter flywheel spin-down would be nice. It’s not loud, but on quiet remodels, the whine lingers longer than I’d like.
Who this nailer is for
- Remodelers and punch-list carpenters who value hose-free mobility.
- Small to mid-size framing tasks—partition walls, headers, stair framing, blocking, and subfloor work—where setup time matters.
- Crews already on the 20V platform who want a capable framer without adding a compressor to the truck for lighter days.
If your day is running plates and shooting studs nonstop with a crew, a high-CFM compressor feeding a pair of pneumatics is still faster and lighter over eight hours. But the DCN920 is easily capable of carrying a solo framer or a remodeler through a full day’s mixed tasks.
Warranty and value
You get DeWalt’s 3-year limited warranty, 1-year free service, and 90-day satisfaction guarantee. That’s a solid safety net for a tool that’s going to see some knocks. Given the performance and the included 5Ah battery and charger, the kit makes sense if you’re building out the platform; if you already own plenty of 20V batteries, a bare-tool option would be welcome, but as a kit it’s ready to work.
Recommendation
I recommend the DCN920 for anyone who wants a serious cordless framing nailer for real jobsite use without hoses or a compressor. It drives full-size 3-1/2 inch nails with consistent depth, handles toe-nailing and awkward angles with confidence, and the active flywheel shortens the time between shots in a way you notice immediately. Runtime on a 5Ah pack is practical for small framing and subfloor runs, and the overall build feels durable with thoughtful, field-serviceable parts. The belt hook could be more secure, and the single-strip magazine nudges you toward the extended option if you’re running longer stretches. Even with those caveats, the DCN920 strikes a smart balance of speed, power, and convenience that earns a place in my framing kit.
