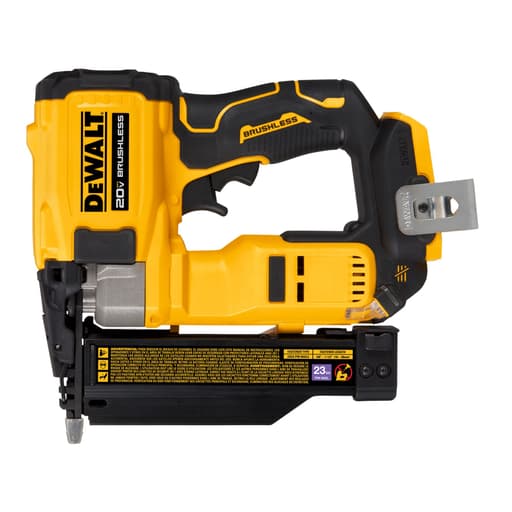

DeWalt ATOMIC COMPACT SERIES 20V MAX Brushless Cordless 23ga Pin Nailer

Why I reach for a 23-gauge pinner

I reach for a 23-gauge pin nailer when I need fast, clean work that won’t telegraph fasteners—things like cabinet trim, delicate moldings, bead and scribe, small returns, edge banding, and light furniture repair. In those jobs, the pins are there to hold parts while the glue cures, without leaving craters to fill. The DeWalt 23-gauge pin nailer fits this role well, trading the hose and compressor for the convenience of 20V cordless power and offering the control I expect from a fine-finish tool.

Setup and ergonomics

Out of the box, setup is straightforward: load a strip of 23-gauge headless pins (5/8 to 1-1/2 inch), pop in a 20V battery, and you’re ready. The tool is compact—about 9.2 inches long and 8.3 inches tall—and the line of sight to the nose is better than most cordless pinners I’ve used. That matters when you’re trying to place a pin right at the edge of a miter or tuck one into a tight inside corner.

At 4.1 lb bare, it’s heavier than a pneumatic pinner. Add a 2.0 Ah battery and you’re in the neighborhood of 5 lb. The balance is good with compact packs; it gets a little butt-heavy with a 5.0 Ah battery. If you do prolonged overhead work or trim runs where you’re constantly reaching high, stick with a 2.0–3.0 Ah pack for better balance.

The grip is comfortable and the trigger pull is light, as a pinner should be. There’s a low-nail lockout with an LED indicator, which prevents dry firing and surface divots. I appreciate the protection, though it does mean the gun will stop a bit before the magazine is completely empty.

Driving performance

Brushless motor or not is often a spec sheet bullet point, but here the brushless drive translates into consistent power and a quick recovery between shots. I ran 1-inch pins through poplar casing and prefinished maple trim, and the nails set just sub-flush with a neutral depth setting. In walnut scribe and small oak crown details, the 1-inch pins seated fully without bruising the surface.

Stepping up to 1-1/2-inch pins, I had predictable results in softwoods and MDF. In dense hardwoods, the tool can still set the long pins, but technique matters: keep the nose firmly planted, square to the surface, and use fresh, quality pins. If you run into a proud pin in hard oak with the longest fasteners, a click or two deeper on the depth adjustment typically solves it. The nose geometry is slim enough to get into tight spots, which is where a pinner shines.

A pinner is never a substitute for real mechanical fastening; it’s a clamp in gun form. Used that way, the DeWalt does exactly what I want—holds parts invisibly until the glue cures and leaves nearly nothing to fill.

Controls, adjustments, and jam clearing

Depth adjustment is tool-free and precise, controlled by a small dial. It works well, though the dial is a bit firm and tucked in, so making micro-adjustments with gloves isn’t as quick as a large thumbwheel would be. Once set, it stays put, which is more important to me than instant adjustability.

I did induce one jam on purpose using off-brand 1-1/2-inch pins in kiln-dried white oak. The jam release is tool-free: flip the latch, clear the pin, and you’re back in business in under a minute. That’s exactly the experience I want—no rummaging for a hex key while the glue skin starts to set.

The low-nail lockout works; it prevents dry-fire marks on delicate stock. The flip side is you’ll leave a few nails in the magazine when the gun stops. It’s a minor gripe, but if you’re shooting sporadically, plan on topping off the magazine rather than trying to empty it to the last pin.

Runtime and batteries

Runtime is excellent. With a 2.0 Ah pack, DeWalt claims roughly 2,000 shots per charge shooting 1-inch pins into SPF. My results were in the same ballpark over several days of cabinet trim and site-built shelving details. On a 5.0 Ah pack, I never managed to drain it in a single day doing the kind of work a pinner is built for. The motor is efficient and the tool doesn’t “wake up” slowly, so you’re not waiting between shots.

Because the tool is sold bare, consider pairing it with a compact battery for ergonomics and a high-capacity pack as a backup if you’re on a long punch list. Either way, runtime isn’t the limiting factor here.

Surface protection and precision

A 23-gauge pinner’s value is in leaving almost no trace, and this tool behaves well. The nose mitigates tipping, the driver leaves a tiny hole, and the shoe doesn’t bruise paint or lacquer when you keep the nose flat. On prefinished face frames and painted crown returns, I could skip filling on most pins; a quick touch of finish often hid the tiny divot entirely.

As with any pinner, be mindful of grain direction. Headless pins can follow the grain and “walk” if you shoot too close to an edge or at a shallow angle. The DeWalt’s nose gives you good control, but it won’t defy wood physics—keep it square and let the tool do the work.

Build quality and maintenance

Fit and finish are solid. The magazine tracks cleanly, the latches are positive, and the fasteners seat consistently. I didn’t notice any rattles or looseness after several weeks of use. Routine maintenance is minimal: keep the nose clean, blow out dust from the magazine, and don’t oil it like a pneumatic—there’s nothing to oil.

The warranty is robust for a cordless finish tool: three-year limited warranty, one year of free service, and a 90-day satisfaction guarantee. For a tool you’ll likely use on nearly every trim job, that coverage is reassuring.

Trade-offs versus pneumatic

Compared to a good pneumatic pinner, the DeWalt is heavier and bulkier, full stop. If you’re in a dedicated shop with a compressor already humming, a lightweight air pinner still feels more nimble. But the cordless convenience is huge on site or for quick tasks in a finished home—no hoses snaking around furniture, no compressor noise, no setup delay. For me, the trade is worth it on anything outside the shop.

The only functional nitpicks are small: the depth dial could be larger and easier to thumb, and you can’t override the dry-fire lockout to consume the last handful of pins. Neither issue has cost me time, but they’re worth noting.

Where it shines

• Cabinet installs and trim punch lists where cords and hoses are a hassle
• Prefinished work where surface protection is critical
• Small returns, scribe, and applied moldings that benefit from a narrow nose
• Furniture and box work where glue is the primary bond and pins act as clamps

What it’s not for

• Structural fastening or anything relying on nails for long-term strength
• Driving long pins into the hardest exotics without careful setup and technique
• Users who prioritize the lightest possible tool over cordless convenience

Final thoughts and recommendation

The DeWalt 23-gauge pin nailer nails the fundamentals: consistent depth, clean surfaces, solid runtime, and genuinely cordless convenience. It’s compact enough to be precise, powerful enough for typical hardwood trim with 1-inch pins, and easy to live with thanks to tool-free jam clearing and a protective lockout. It is heavier than a pneumatic and the depth dial could be friendlier, but those are small trade-offs given the freedom from hoses and compressors.

I recommend this tool to trim carpenters, cabinet installers, and serious DIYers who want a reliable, cordless 23-gauge solution on the DeWalt 20V platform. If your work lives in a shop tethered to air and weight is your top priority, a quality pneumatic pinner still makes sense. For everyone else, this DeWalt delivers the invisible fasteners and fuss-free workflow that a pinner is supposed to provide, with the added advantage of leaving the compressor in the truck.
