TOOLIOM MIG/TIG/CUT/Stick Welder 5 in 1 Multiprocess Welding Machine 110/220V Dual Voltage Aluminum Welding Machine Spool Gun Compatible

A compact shop-in-a-box that rewards a careful setup

I brought the Tooliom 5-in-1 into my small garage shop to see if a single machine could reasonably cover MIG, flux-core, lift TIG, stick, and plasma cutting without feeling like a compromise in every mode. After a few weeks of real work—fabricating brackets, patching thin automotive sheet, welding 3/16–1/4 inch mild steel, and slicing plate and tubing—the short answer is yes, with caveats that mostly come down to expectations and setup.

Setup, build, and first impressions

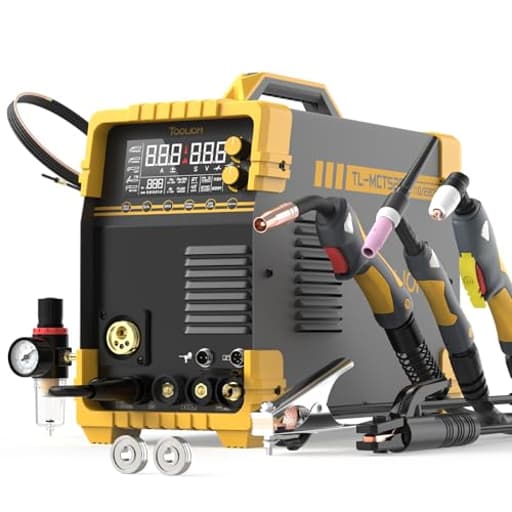

Out of the box, the unit is lighter than most multi-process machines I’ve used, and the footprint leaves room on a crowded bench. The front panel is dominated by a large LCD that actually helps rather than gets in the way: mode selection is obvious, key parameters are legible, and the buttons/knobs have enough detents to dial things in without jumping past a setting. Switching processes (say, MIG to plasma cutting) is quick and intuitive.

The accessories are better than typical for the price range. The MIG gun and work lead lengths are practical for a one-car garage or driveway job. The wire feed mechanism is sturdier than I expected, and the drive roller changeover is straightforward. The unit includes multiple drive rollers, a graphite liner for soft wire, and the basic consumables to get moving. I’d still plan on upgrading contact tips and nozzles if you weld regularly; the included pieces get you going but aren’t what I’d want to live with long-term.

Dual voltage is a real advantage here. On a dedicated 120V/20A circuit I could do a lot of light fabrication and all the sheet metal work I needed. Plugging into 240V opened up the machine for thicker steel and made the plasma cutter feel like a different tool.

Controls and the MIG experience

The two MIG modes—synergic and manual—define this machine for me. Synergic mode sets voltage based on wire feed speed and material selection, which is perfect for quickly getting into the ballpark. Most of the time, I nudged the settings slightly to suit joint fit-up and position. Manual mode is there when you want to set voltage and wire feed independently. The transition between these modes is seamless; both are useful.

With 0.030 inch flux-core wire on 120V, arc starts were consistent and spatter was manageable with a good wire and clean ground. The arc stability is notably better than older transformer boxes and many budget inverters I’ve used. On thin automotive panels, being able to trim wire feed by a couple of points and run short stitch welds kept heat under control and avoided blow-through.

On 240V, gas-shielded MIG with solid wire was more forgiving and cleaner as expected. The synergic presets for mild steel were close enough that I mostly adjusted wire feed to match joint geometry. The wire drive tension and spool brake matter on this machine—too tight and you’ll fight intermittent feeding, too loose and you risk a birdnest. Once dialed, the feed is reliable.

Aluminum is realistic if you use a spool gun or the included graphite liner with short, straight runs of wire. I borrowed a spool gun and ran 4043 on 1/8 inch plate with pure argon; it took some tuning, but the machine pushed bead quality into the “clean and strong” category rather than just “it stuck.” Don’t expect it to mimic a high-end pulse setup on tricky joints; expect competent aluminum work if you do your part.

Lift TIG and stick: useful, not showpieces

Lift TIG performance is in line with most multi-process inverters without high-frequency start: it’s perfectly adequate for mild and stainless fabrication where you can live with lift start and a torch gas valve. Arc stability is good, and heat control via the panel is predictable. If you do a lot of TIG on thin stainless or aluminum, you’ll want a dedicated machine with foot control and AC capability—this isn’t that. For occasional TIG, it fits nicely.

Stick welding is stronger than I expected from a compact inverter. 6011 and 7018 lit and ran well on 1/8 and 3/16 inch stock. Arc force feels appropriately tuned, and restarts are easy if you keep your work lead clamps clean and tight. I wouldn’t hesitate to take this out for fence repairs or farm chores.

Plasma cutting: credible capacity with clean air

With 240V, the plasma cutter section shines. Clean cuts in 1/4 inch mild steel were easy, and I got usable edges at around 3/8 inch with a measured, steady travel speed. The advertised 1/2 inch severance is achievable, but the edge quality becomes rough and you’ll plan on cleanup. On 120V, you’ll want to stay in thinner material to keep cut quality up.

Air supply matters more than anything here. Dry, consistent air pressure and adequate flow stabilize the arc and dramatically extend consumable life. I plumbed a desiccant dryer and regulator at the machine and saw fewer hiccups and much more predictable pierces. If you’re seeing inconsistent cuts, start with air quality and torch standoff before you blame the machine.

Power, portability, and duty cycle realities

The portability is a highlight. At under the size and weight of many single-process units, I can carry it and a small bottle or compressor to a job. On 120V, I didn’t trip a 20A breaker during flux-core and light stick work at sensible settings. On 240V, the machine opens up; welds get wetter, and the plasma arc has noticeably more authority.

I didn’t hit thermal shutdown in normal use, but be realistic: long, high-amperage runs and extended plasma cutting will eventually demand a cooldown. Plan your workflow—tack, fit, stitch, rotate—and the machine keeps up just fine for home shops and light fabrication.

Things I liked

• Clear, helpful LCD interface and simple process switching
• Synergic MIG that’s actually useful, with easy fine-tuning
• Respectable arc quality in flux-core, solid wire MIG, and stick
• Dual voltage that materially changes what you can do
• Plasma cutter that earns its spot for fabrication and repairs
• Thoughtful accessory pack, including rollers and a graphite liner

Things that could be better

• Consumables (tips, nozzles) are serviceable; plan to upgrade if you weld often
• Wire feed tension and spool brake need careful setup to avoid jams
• Lift TIG is basic; no high-frequency start or AC for aluminum TIG
• Aluminum MIG benefits from a spool gun; factor that extra cost into your plans
• Expect cooldowns on heavy, prolonged work—this isn’t a production machine

Practical tips from use

• Use quality wire and keep the liner clean; it’s the cheapest way to improve arc stability
• On synergy, set thickness/wire diameter correctly, then “trim” wire feed a few clicks to taste
• For plasma, invest in dry air; a small desiccant or refrigerated dryer pays for itself
• On 120V, dedicate a 20A circuit and keep extension cords short and heavy-gauge
• If you switch processes often, keep your settings noted; it’s quick to return to a known-good setup

Who it’s for

The Tooliom 5-in-1 makes a lot of sense for DIY fabricators, automotive hobbyists, farm and ranch users, and anyone who values portability and flexibility over single-process perfection. If your work is a steady mix—tack this bracket, cut that plate, run a handful of beads on 3/16 inch steel—it fits right in. If you’re running long production welds, specialized TIG on thin nonferrous metals, or daily aluminum MIG without compromise, you’ll outgrow it.

Recommendation

I recommend the Tooliom 5-in-1 to budget-conscious users who want credible capability across MIG/flux-core, stick, lift TIG, and plasma cutting in a compact package. It rewards careful setup and good consumables with stable arcs and clean cuts, and the dual-voltage design means it’s useful both on a garage 120V circuit and on 240V in a proper shop. It’s not a replacement for high-end, single-purpose machines, especially for advanced TIG or heavy aluminum work, and you should plan on upgrading some consumables and, if needed, adding a spool gun. But as a versatile, portable workhorse for a small shop or jobsite, it delivers solid performance and strong value.
