AWT MIG Welding Machine,160A 5 in 1 Plasma Cutter Welder Combo HF TIG/Gas MIG/Flux MIG/Stick Welding,110/220V Dual Voltage, Multi-Process Welder MIG88-160M

Why I reached for a 5-in-1 instead of five separate machines

Space is tight in my small shop and even tighter in my truck, so the idea of one box handling MIG, flux-core, TIG, stick, and plasma cutting is more than just convenient—it’s how I keep projects moving. After several weeks with the AWT MC-160PRO, I’ve formed a clear picture of where this multi-process unit shines, where it compromises, and who will get the most value from it.

Setup, build, and first impressions

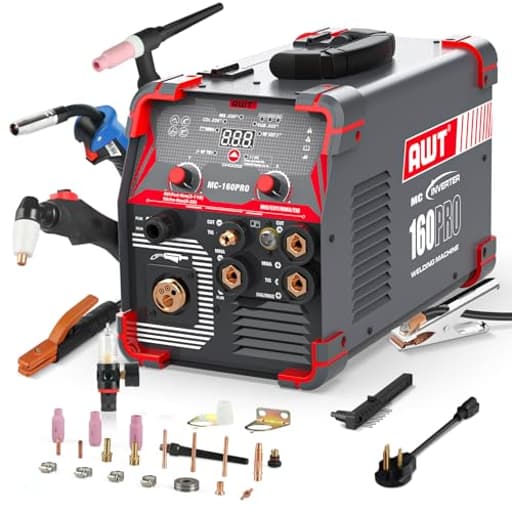

Out of the box, the MC-160PRO is compact and light enough to carry one-handed. The enclosure is steel with decent fit-up, and the layout is straightforward: a clear mode selector, digital display, and a single primary control knob that changes behavior depending on mode. The package is generous—MIG torch, plasma torch with consumables, TIG torch with consumables, ground clamp, electrode holder, air filter/regulator, gas hoses, and a 110/220 V adapter. It’s everything needed to strike arcs and start cutting, provided you already have a gas bottle and an air compressor for the plasma function.

The wire feed assembly is better than I expected at this price. Tension adjustment is precise and consistent, and the drive rolls engaged smoothly with both 0.8 mm and 0.9 mm wire. The spool door works, though it’s the one area that feels a bit flimsy; handle it a little too casually and you’ll see what I mean.

Before first use, I checked the internal gas path and external fittings for leaks and mounted the included air filter/regulator. If you plan to plasma cut regularly, keep that filter high and dry and drain it often—dry air is the difference between clean cuts and ragged edges.

Controls and usability

In MIG mode, the built-in synergic control is the star. Select wire diameter and gas type, and the machine proposes current and wire feed settings. In practice, it put me very close to a usable arc right away, cutting down setup time. There’s trim available to nudge voltage and wire speed up or down, which I used frequently to dial in fillets versus lap joints.

Mode switching is quick, and the display is legible even in brighter shop lighting. If you’re used to larger industrial interfaces, this will feel minimalist, but everything essential is present and logically placed.

MIG and flux-core performance

Flux-core and gas-shielded MIG are where the MC-160PRO earns its keep. With 0.030 in wire and C25 gas, the arc is smooth and stable on mild steel. Short-circuit transfer is predictable, puddle wet-out is controlled, and spatter is modest when parameters are trimmed properly. For 1/8 to 3/16 in material, it produced clean, strong beads with good tie-in.

Flux-core on 120 V surprised me. Running 0.035 in wire, the arc remained steady on structural tubing and plate up to about 3/16 in with sensible travel speeds. On 220 V, the machine has more headroom and feels noticeably crisper; if you have a 240 V circuit, you’ll get the best from this unit.

Two notes:
- This is a DC MIG without a spool gun provision advertised, so if your goal is aluminum, plan on additional gear (liner, U-groove rollers, and ideally a spool gun) and keep expectations in check. Out of the box, this is a steel-focused MIG.
- The included wire is fine for testing, but stepping up to a premium wire noticeably improves arc quality and reduces cleanup.

TIG: precise starts, basic controls

The TIG function is DC with high-frequency start, so you get non-contact arc ignition—a big upgrade in cleanliness over lift start. It’s well-suited to stainless and low-carbon steel. I used it for brackets, thin-wall tubing, and a couple of cosmetic fillets; arc starts were consistent, and the torch worked cleanly with standard consumables. There’s no foot pedal or advanced pulse/slope control here, so think “accurate DC TIG for small work,” not a full-featured TIG station. As with any DC-only machine, TIG welding aluminum is off the table.

Stick: a competent backup

Stick welding is straightforward and competent. With 3/32 in electrodes on 120 V, the machine maintained a steady arc and restarted reliably. On 220 V, it has a bit more punch and handles mild steel rods on thicker stock without drama. It’s not a stick powerhouse, but it’s more than adequate for repairs, farm work, and jobs where wind or fit-up rule MIG out.

Plasma cutting: clean, controlled, and very handy

The plasma cutter is a 40 A unit, and paired with dry air it produces clean, burr-light cuts on mild steel plate in the 1/8 to 1/4 in range at good travel speeds. On 220 V, I was able to edge into 5/16 in cleanly with a slower hand; pushing beyond that is possible but leaves a rougher kerf and requires more grinding. On 120 V, expect best results on lighter materials—sheet, thin plate, and bracketry. Torch ergonomics are fine, and the included consumables got me through my first batch of cuts without issue. A straightedge and standoff make a big difference in cut quality; plan on using both.

Power realities: 110 vs 220 V

Dual voltage is a genuine advantage. The machine runs on 120 V when that’s all you’ve got, and for light-gauge MIG/flux-core, stick with smaller rods, and lighter plasma work, it’s entirely serviceable. Plugging into 220 V opens up performance across the board—cleaner MIG arc on thicker stock, better stick stability, and plasma capacity closer to the upper end of what the torch can do. If you’re buying this to be your only shop machine, give it a dedicated 240 V circuit.

Thermally, I didn’t trip the machine under normal, intermittent use: short runs, reposition, tack, weld, cool. Keep the fan vents clear and don’t bury it in grinding dust; treat the duty cycle with respect, and it’ll treat you well.

Portability, noise, and shop manners

This is a genuinely portable multi-process unit. It’s easy to carry and doesn’t sprawl on the bench. The fan is present but not obnoxious, and arc noise is as expected for each process. Cable management is the usual multi-process spaghetti; hooks or a cart will make your life easier. I’d budget for a better ground clamp when you can—mine worked, but upgrading to a heavier spring clamp improved arc starts and reduced micro-arcing on painted steel.

Consumables and maintenance

The included starter consumables are enough to get going in all modes. Stock up early on MIG tips and nozzles, TIG cups and collets, and plasma tips/electrodes; keeping fresh consumables on hand is the cheapest way to maintain cut and weld quality. Drain the air filter regularly and check gas connections with soapy water during setup. A quick internal inspection after transport isn’t a bad idea either—shipping can jostle small fittings.

Limitations and quirks

• Aluminum: Without AC TIG and without a dedicated spool gun setup, this is not the right machine for frequent aluminum work.
• Advanced TIG controls: No pedal, no pulse—consider this a basic DC TIG capability for precise steel/stainless joints.
• Spool door: Functional but light; treat it gently.
• Entry-level accessories: They work, but upgrading the ground clamp and using quality wire and rods noticeably improves results.

Who it’s for

The MC-160PRO makes the most sense for DIYers, fabricators, and mobile fix-it folks who need one box to do most things well: MIG and flux-core as the daily drivers, a capable cutter for plate and brackets, basic DC TIG for stainless and thin work, and stick for outdoor or dirty joints. If you need production TIG or plan serious aluminum MIG/TIG, look elsewhere. If you value versatility and portability over single-process specialization, this machine fits.

Recommendation

I recommend the AWT MC-160PRO for users who want a practical, portable multi-process unit with a strong emphasis on MIG/flux-core and a legitimately useful plasma cutter. The synergic MIG is genuinely helpful, arc stability is better than expected, HF TIG adds clean starts for small precision work, and stick fills the gaps. On 220 V, it punches above its size; on 120 V, it’s still productive within reasonable limits. It’s not the right choice for dedicated aluminum or advanced TIG work, and a couple of hardware touches (spool door, ground clamp) invite upgrades, but as a compact, do-most-of-it machine, it earns a place in a small shop or service truck.
