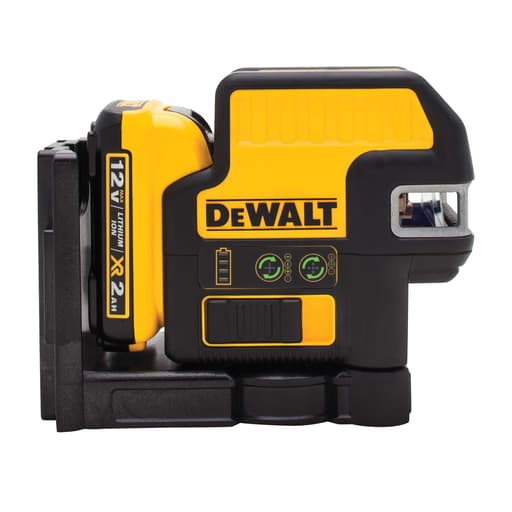

DeWalt 12V MAX 5 Spot + Cross Line Green Laser

Why this combo laser earned a spot in my kit

I first put DeWalt’s 12V green 5‑spot cross‑line laser to work on a bathroom gut remodel—laying out a new partition wall, centering can lights, and setting cabinet and tile reference lines. It covered every task without swapping tools, which is exactly what a combo laser should do. The cross line gave me fast level and plumb references, and the five spots let me transfer floor points to the ceiling and square off stud locations. That versatility is the headline: one compact unit that handles layout, alignment, and plumb transfer with minimal fuss.

Setup and mounting

DeWalt includes a stout integrated magnetic bracket and a ceiling/fixture bracket in the case. The magnets are strong enough to hold on steel studs or a door frame without creeping. When there’s no steel around, the included magnet enhancement plate is useful: screw it to wood or drywall and you’ve got a secure mounting surface in seconds. The body also has both 1/4‑20 and 5/8‑11 threaded mounts, so it drops onto a camera tripod, a laser pole, or a survey tripod without adapters.

The bracket pivots smoothly and has enough resistance to hold position while you fine‑tune alignment. There’s no micro‑adjust knob, so for precise nudging I recommend a tripod with a geared head or a grade rod mount. The pendulum lock is easy to reach; lock it before you move the tool and it arrives at the next spot still in calibration.

The TSTAK case is bulky but protective, and it keeps the accessories from rattling around the van. If you’re already on the TSTAK train, it stacks neatly with other boxes.

Visibility and range

The green lines are bright and crisp indoors. Across typical interiors—say, a 30‑ to 40‑foot room—the line is plainly visible without squinting. Outdoors or in sun‑flooded spaces, the lines will wash out at distance, as expected. That’s where the full‑time pulse mode comes in; with a compatible detector (not included), I picked up the lines reliably across long runs. DeWalt rates line range with a detector up to 165 feet and the spot range to about 150 feet. In practical terms, the detector makes this a workable option for garage slabs, long hallway layouts, or exterior reference when you don’t want a rotary.

Line thickness is well controlled. At 30 feet the line is tight; beyond 50 feet, it fattens a touch—nothing unusual for a Class 2 construction laser. The spot points are punchy and clean, which helps when you’re dropping a point from the ceiling to the floor onto a pencil crosshair.

Accuracy and self‑leveling

DeWalt lists ±1/8 inch at 30 feet, and my checks matched that claim. I ran a simple “four‑wall” test to check the horizontal line and used the plumb points to transfer a benchmark from floor to ceiling and back. Error at 30 feet was within a sixteenth on my tape. The self‑leveling pendulum settles quickly—usually in a few seconds—and it’s insensitive to small bumps once it’s found center. If you need to mark a slope (stair rails, drainage pitches), locking the pendulum lets you dial in an angle and keep it without the system trying to re‑level.

One small functional note: like most combination lasers, the emitters aren’t co‑located at the exact center of the unit, so you’ll see slight parallax if you’re trying to line up a mark right against the tool face. Step back a foot or two and it becomes a non‑issue.

Battery and runtime

This laser runs on DeWalt’s 12V MAX battery, and the kit includes a 2.0Ah pack and a 12V/20V charger. I appreciate that it’s a real pack, not a captive internal cell, so spares are easy to rotate. In my use:

• Spot mode alone: basically a full workday.
• One line: plenty for a long shift.
• Both horizontal and vertical lines active: I typically saw 6–8 hours before swapping.

That maps well to DeWalt’s guidance that runtime varies by mode. If you lean on both lines all day, a second battery makes life easier. A built‑in battery gauge would be nice, but the swap is quick and predictable once you’ve used it a few times.

Durability and jobsite readiness

This model is built for rough duty: IP65 against dust and water and a 2‑meter drop rating. It survived a tile saw misting and a dusty demo day without issue. The overmolded housing feels solid, and after an accidental knock off a low ladder rung, the calibration didn’t budge. The pendulum lock inspires confidence; it’s positive and doesn’t feel flimsy.

At the same time, this isn’t the lightest compact laser I own. The package has some heft, largely due to the bracket and the robust housing. I don’t mind the weight because it helps stability when it’s magnet‑mounted, but if you prioritize ultralight tools for ladder work, note that there are slimmer options—none with this exact feature set at this build quality, in my experience.

Day‑to‑day usability

The control layout is straightforward. I can enable horizontal and vertical lines independently, switch to points, and activate pulse mode without cycling through a dozen combinations. The icons are clear, and status indicators are visible from a working stance. The cross intersection is easy to center on a layout mark, and line fan angles give generous coverage so you can catch both adjacent walls in a typical room without moving the tool.

I’ve used it for:

• Cabinet installs: setting a top reference line and finding stud centers with the side spot.
• Tile starts: snapping a clean plumb and level crosshair for layout.
• Framing: transferring layout from floor to ceiling with the up/down plumb points.
• Electrical: aligning receptacle heights and centering boxes along a run.
• Ceiling work: locating can lights off a centerline and aligning grid.

In each case, the combination of cross lines and five spots meant fewer moves and less back‑and‑forth with a plumb bob or chalk line.

Where it falls short

• No micro‑adjust: Fine nudging requires a good tripod or rod head. Not a dealbreaker, but something I miss on long sight lines.
• One battery in the box: Given the power draw of bright green lines, a second 2.0Ah pack would complete the kit. Plan on a spare if you run both lines all day.
• Not a 360‑degree plane: If you need a constant wraparound line to establish level around an entire room without repositioning, a 360 laser is better suited. This unit’s coverage is generous, but it’s still a forward‑facing cross.
• Size/weight: More robust than some compact red‑line units. You feel it hanging on your belt or in a pouch.

Who will benefit most

• Remodelers and finish carpenters who bounce between alignment tasks and layout all day.
• Electricians and plumbers who need fast point transfer and consistent height references across rooms.
• Commercial TI crews who value IP65 protection and the ability to use a detector for longer runs.

If your daily work is exterior grading or long‑range outdoor layout, a rotary with a receiver remains the right tool. If you only ever hang the occasional picture frame, this is overkill.

Warranty and support

DeWalt backs it with a 3‑year limited warranty, 1‑year free service, and a 90‑day satisfaction guarantee. That’s par for the category and aligns with the jobsite‑ready positioning.

Recommendation

I recommend the DeWalt 12V green 5‑spot cross‑line laser for pros and serious DIYers who want one tool to handle level, plumb, alignment, and point transfer with jobsite durability. It’s accurate, bright, and genuinely versatile, with mounting options that fit real‑world setups. The IP65 rating and drop protection add confidence, and the ability to run with a detector expands its usefulness beyond interiors. I’d budget for a second battery and pair it with a decent tripod to get the most out of it. If you need 360‑degree planes, look elsewhere; otherwise, this combo laser is a dependable, efficient problem‑solver on site.
