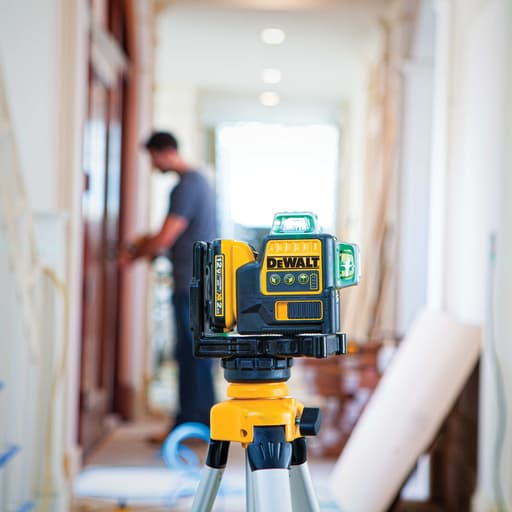

DeWalt 12V MAX 3 x 360 Green Line Laser

Why three green circles changed my layout workflow

The first time I powered up the DeWalt 12V green 3x360 laser on a gut renovation, the room snapped into order. Seeing a full horizontal plane wrap the space while two vertical planes cross and plumb the corners isn’t just neat—it speeds up nearly everything from framing to cabinet installs to tile layout. After months of use across interior build‑outs and a few exterior alignment tasks, this laser level has become a reliable reference line I can set and forget.

Build, setup, and what’s in the box

My kit arrived with a durable hard case, an extended ceiling bracket, a 12V battery (2.0 Ah), charger, a target card, and the integrated magnetic base with both 1/4" and 5/8" threads. The housing is plastic with a thick rubber overmold and carries an IP65 rating, which in practice has shrugged off drywall dust, occasional rain spritzes, and plenty of jobsite knocks. The locking pendulum is worth calling out: flip it before transport and you’ll protect the self‑leveling guts from hard hits in the back of the truck.

Controls are straightforward—individual buttons for the planes and a mode for pulse when you want to run a detector. Self‑leveling kicks in quickly and quietly; on reasonably flat surfaces I’m typically up and running in a few seconds.

The unit isn’t featherweight. That heft helps stability on a tripod or floor, but it does mean the magnet base is happier on thicker, clean steel than on thin painted angles or awkward corner bead. I rely on the included bracket or a tripod more than the magnets when I care about absolute stability.

Accuracy and consistency

DeWalt rates this laser at ±1/8 inch at 30 feet, which lines up with the results I measured against a calibrated straightedge and a reference rotary. Tracking a beam across 30 feet of open floor, I saw about 1/16 inch deviation—comfortably within spec. The two vertical planes intersect at a true 90 degrees, which makes squaring rooms and setting partition walls intuitive. For high‑precision finish work running long distances (think feature walls with tight grout lines over 25 feet), I still spot check with a tape and reference marks, but for general layout this is accurate and repeatable.

Visibility and range

The green beams are crisp and easy to pick up indoors, especially on lighter surfaces. DeWalt quotes a visible range of 100 feet, and that’s in the ballpark in typical interior lighting. On darker materials (charcoal tile, stained concrete) or under bright shop lights, a target card helps the line pop. When lines run close to the floor, the grazing angle can make them harder to see on rough, dark surfaces—raising the laser to countertop height or using the bracket often solves that.

Outdoors or in sunlit spaces, pulse mode with a detector is the move. With a receiver, the working range extends to 165 feet and makes exterior alignment feasible. Without a detector, expect sunlight to wash out the line quickly.

Laser safety is Class 2, so the usual common sense applies: don’t stare into the beam and be mindful of other trades in the line of sight.

Power and runtime

This laser rides on DeWalt’s 12V platform. With the included 2.0 Ah pack, I see roughly three hours of continuous runtime with two or three planes active and brightness typical for interiors. For all‑day use, carry a spare 12V battery or step up to a higher capacity pack if you’ve got one in your kit. The battery indicator helps, but I’ve built the habit of swapping at lunch to avoid surprises.

Charging is quick enough to cycle a depleted 2.0 Ah pack back into service during a coffee break if needed, but don’t plan your day around a single battery.

Mounting options and workflow

This laser is at its best when you take advantage of all three planes:

• Horizontal 360° for level lines around a room: backsplash height, wainscoting, ceiling grid, or trim reveals.
• Two vertical 360° planes set at 90°: laying out walls from a reference line, aligning rows of recessed lights, or standing up cabinets dead plumb.

The integrated magnetic bracket gets the unit onto steel studs or door frames quickly, but for critical work a tripod gives you finer control, especially with the standard 1/4" and 5/8" threads. The extended ceiling bracket is handy for ceiling grid and high line work without improvising shims.

A few practical tips from the field:
- Elevate the unit to the working plane rather than bending to the line; it’s faster and increases visibility.
- Use the target card to spot lines on dark surfaces or at longer runs.
- Lock the pendulum before a move, even across the room—it will pay you back in longevity.
- In bright conditions, plan on a detector; the pulse mode exists for a reason.

Durability and jobsite toughness

The IP65 rating isn’t just a badge. I’ve used this laser on dust‑heavy demo days and in light drizzle while aligning exterior fixtures. Wipe it down, keep the optics clean, and it just works. The rubber overmold has taken a few shoulder‑height bumps on the bracket with no ill effect. Locking the pendulum before travel keeps the self‑leveling mechanism happy; skip that and you’re tempting fate with any laser.

What could be better

No tool is perfect, and a few realities are worth noting:

• Weight vs. magnets: The unit’s mass means the magnet base can slide on thin or painted metal. Use a stable bracket or tripod when precision matters.
• Runtime on the included pack: About three hours with a 2.0 Ah battery is fine for punch list work, but light for full‑day layout. Budget for a second 12V pack.
• Near‑floor visibility: On darker floors, the line can get lost at low heights. Raise the laser or lean on the target card/detector as needed.
• Case size: The included hard case protects well but takes up real estate in the truck. Not a deal‑breaker, just plan for it.

Specs at a glance

• Self‑leveling 3 x 360° green beams
• Accuracy: ±1/8 in at 30 ft
• Visible range: up to 100 ft (165 ft with detector in pulse mode)
• Laser class: 2
• IP65 rated housing with rubber overmold
• 12V rechargeable Li‑ion platform; 2.0 Ah pack included
• Approximate continuous runtime: 3 hours on the included battery
• Integrated magnetic bracket; 1/4" and 5/8" mounting threads
• Includes hard case, extended ceiling bracket, charger, and target card

Buying and calibration notes

As with any popular laser, buy from an authorized source to ensure you’re getting a properly calibrated unit with support behind it. On arrival, I always do a quick box‑check—verify self‑leveling, square between the vertical planes, and level at a known reference distance—so you start your first job with confidence.

Who it’s for

• Remodelers and finish carpenters who benefit from full‑room reference lines for trim, cabinets, and tile.
• Commercial T‑bar and drywall crews who need fast, reliable level and plumb lines with IP65 toughness.
• Electricians and plumbers laying out runs, device heights, and penetrations with repeatable accuracy.
• Serious DIYers who want to speed up layouts and reduce error in kitchens, baths, and basements.

If your work is primarily outdoors without a detector, or you rely on the magnet base on thin painted steel, you’ll need to adapt your setup (tripod, bracket, detector) to get the most from it.

Recommendation

I recommend the DeWalt 12V green 3x360 laser for pros and serious DIYers who want fast, accurate, all‑around layout capability in a rugged package. The three full 360° planes simplify complex setups, the green beams are easy to see indoors, and the IP65 build holds up to jobsite realities. Plan on a second 12V battery for longer days and favor a tripod or bracket over light‑duty magnetic mounts when precision matters. With those small considerations, this laser becomes a dependable reference line you can trust from rough‑in to finish.
