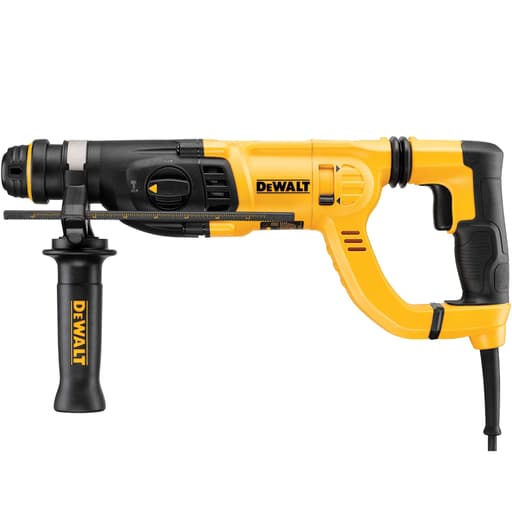

DeWalt 1 in. SDS Rotary Hammer Kit

Why I reached for this rotary hammer

I first put the DeWalt rotary hammer to work on a retrofit where I had to set a couple dozen 3/8-in and 1/2-in wedge anchors into 4,000‑psi concrete, chase a small conduit path, and chip off some stubborn thinset. I wanted something in the 1‑inch SDS‑Plus class that would balance power with control for overhead and horizontal drilling. This one fit the bill on paper: 2.8 joules of impact energy, an 8‑amp motor, active vibration control, a D‑handle for alignment, and an integral clutch for safety. In practice, it checked most of the boxes I care about for a daily driver in the SDS‑Plus category.

Power and speed in the 1‑inch class

In the SDS‑Plus arena, 2.8 J of impact energy and 0–5,540 bpm put this tool in the “strong midrange” for concrete drilling. It’s happiest running 3/16‑in to 5/8‑in holes all day, and it will take you up through 1‑in holes when you need them, provided you use a sharp bit and appropriate technique. The motor’s 0–1,500 rpm no‑load speed keeps smaller rotary‑hammer bits productive without glazing, and the hammering rate keeps the bit biting into cured concrete rather than polishing it.

What stood out to me was how consistent the power felt across forward and reverse. The rotating brush ring DeWalt uses helps maintain torque when you need to back out a binding bit. That saved me a couple of times drilling near reinforcement where the flutes packed up and I had to reverse the bit to clear aggregate. It’s a small detail, but in real work it makes a difference.

Vibration and ergonomics

Vibration control is a big part of whether I’ll recommend a rotary hammer for repetitive anchor work. DeWalt’s SHOCKS system—its active vibration control—does a credible job. In hammer‑drill mode on 3/8‑in and 1/2‑in anchors, the handles stayed notably calmer than older, non‑AVC units. Over an afternoon of ceiling work, the difference shows up in your wrists and elbows. It’s not zero vibration, but it’s well managed for the class.

At 6.6 lbs, the weight is friendly for overhead drilling. The tool is long—about 17.25 in—which helps with line of sight and bit alignment on vertical surfaces but can feel a little nose‑heavy if you’re reaching into tight openings. The D‑handle gives a natural push‑pull posture, and the included 360° side handle locks down securely without creeping. I appreciate that the depth rod is the simple, readable type; it stayed put and didn’t slip over multiple hole depths.

Drilling performance

For anchors, the tool’s sweet spot is 3/8 in and 1/2 in. With a decent SDS‑Plus bit, I could keep a steady rhythm in hard, aggregate‑rich concrete without leaning on the tool. It also handled 5/8‑in holes for sleeve anchors with only a modest slowdown. When I stepped up to 1‑in, the motor and mechanism still had enough punch to get it done, but as expected in the SDS‑Plus class, that’s more of an occasional size rather than an all‑day diameter.

One thing I watch for is bit walking when starting holes on slick, troweled surfaces. Starting in hammer‑drill mode at lower speed and letting the percussion find a seat kept the bit planted. The clutch did its job when I grazed rebar—there’s a quick disengagement that spares your wrist without an overbearing shutdown. It re‑engages cleanly once the load clears.

Chipping and light demolition

I don’t buy an SDS‑Plus D‑handle for breaking out footings, and neither should you. But for trimming material—the odd chase, removing tile, knocking off high spots in mortar—this rotary hammer held up fine in chipping mode. Paired with a 1‑in chisel, it had enough authority to shave thinset and pop small sections of brick without bucking. If chipping is your primary use case, a dedicated SDS‑Max tool is the better match. As a “do a little of everything” rotary hammer, this one earns its keep.

Controls, clutch, and day‑to‑day handling

The mode selector is positive and clear, and the trigger is easy to feather for hole starts. The integral clutch is tuned on the conservative side—which I prefer in a 1‑inch class tool. It trips early enough to protect your hands if the bit binds, without turning the process into stop‑start frustration.

Corded power has its benefits here: you get consistent output all day without managing batteries, and the 8 A motor never felt out of steam in the sizes this class is meant for. If you primarily work on lifts or in areas where cord management is a hassle, that’s a workflow decision rather than a tool deficiency. For shop and ground‑level site work, corded is still simple and reliable.

Dust management and compatibility

Concrete dust control is non‑negotiable for me. This rotary hammer is compatible with DeWalt’s D25301D drilling dust extraction system, which clamps on and tracks with the bit. I ran it with that attachment and a quality vac, and the combo kept boreholes clean and the air clear enough that sweeping at the end was minimal. If you don’t have the dedicated extractor, a standard SDS‑Plus dust shroud and vac still capture the majority of fines, but the dedicated unit is cleaner and more consistent, especially overhead.

Kit contents and build

The kit includes the basics: a 360° side handle, depth rod, and a hard case. The case isn’t fancy, but it’s sturdy enough for site transport and has room for a small assortment of SDS‑Plus bits and a tube of grease. The tool’s build presents well—tight housings, clean seams, and a confident selector detent. While the mechanism is described as German‑engineered, the tool itself is an import. I judge it more on fit, finish, and field behavior than origin, and on those fronts it feels put together correctly.

Maintenance, durability, and warranty

With SDS‑Plus tools, keeping the shank greased and dust away from the chuck is half the reliability battle. After several days of anchor drilling and intermittent chipping, there was no abnormal play in the chuck or side‑to‑side wobble. The cord strain relief feels adequate, and the trigger still actuated crisply. DeWalt backs it with a 3‑year limited warranty, a year of free service, and a 90‑day satisfaction guarantee. That coverage is solid for a corded rotary hammer in this tier.

Where it shines and where it doesn’t

Strengths:
- Comfortable vibration levels for its class, especially in repetitive anchor drilling
- Honest, usable power for 3/16–5/8 in holes, with the ability to stretch to 1 in as needed
- Safety‑minded clutch behavior and consistent torque in reverse for clearing binds
- Manageable weight for overhead and ladder work
- Straightforward kit with the essentials and a dependable case

Limitations:
- Length can be awkward in cramped framing or between closely spaced studs
- Not the right choice if your day revolves around heavy chipping or 1‑in‑plus holes—consider SDS‑Max
- Corded format is great for steady power, but not ideal on lifts or in tangle‑prone spaces
- No frills beyond the essentials—if you want integrated dust extraction or advanced electronics, look elsewhere

Who it’s for

If you’re a remodeler, electrician, mechanical installer, or facilities tech who spends a lot of time setting anchors, drilling pass‑throughs up to 1 in, and doing occasional light chipping, this rotary hammer fits neatly into the “do it well, all day” role. It’s a comfortable step up from a hammer drill and a sensible alternative to carrying an SDS‑Max unless you truly need that extra mass and power.

Recommendation

I recommend this DeWalt rotary hammer as a dependable, comfortable SDS‑Plus workhorse for anchor drilling and light chipping. The combination of 2.8 J impact energy, a well‑tuned clutch, active vibration control, and manageable weight makes it easy to live with on real jobs. Pair it with the compatible dust extractor and a good vac, and it becomes a clean, efficient drilling setup that won’t beat you up over the course of the day. If your work pushes regularly into heavy demolition or large‑diameter boring, step up to SDS‑Max; otherwise, this is a smart, reliable choice in the 1‑inch class.
