DeWalt Dust Extraction Tube Kit with Hose

Why I picked up this dust tube kit

Concrete anchors and clean air rarely get along, so I’m always looking for solutions that keep silica under control without slowing me down. I’ve used shrouds that block the view of the hole, and on-tool extractors that only fit a narrow set of hammers. This dust tube kit promised a middle path: a lightweight, clear tube that captures dust right at the hole, works across a broad range of SDS‑Plus drilling, and pairs with an extractor when I need full OSHA Table 1 compliance. After several weeks installing anchors in cured concrete, hollow CMU, and brick, I have a good sense of where it shines and where it asks for a little patience.

Setup and compatibility

Installation is straightforward. The kit includes a side handle assembly, depth rod, and three clear tubes—one for stop bits, one standard length (for up to 6 in. bits), and one long (for up to 10 in. bits). Adapter rings let you match the interface to different tools. On DEWALT rotary hammers—corded and cordless—the fit is tidy, and the AIRLOCK adapter snaps to a DEWALT extractor with no fuss. Officially, it’s compatible with DEWALT hammers except the D25413 and D25416, and it also fits DEWALT premium drill/driver/hammer drills.

If you keep a mixed-brand fleet, fitment will depend on the shank-to-handle geometry and the adapter rings. I had success with a couple of non-DEWALT SDS‑Plus bodies, but alignment and rigidity are best on DEWALT’s own models. The assembly adds about 2.75 lb up front, which is noticeable on compact hammers but never felt unwieldy.

On-tool capture and visibility

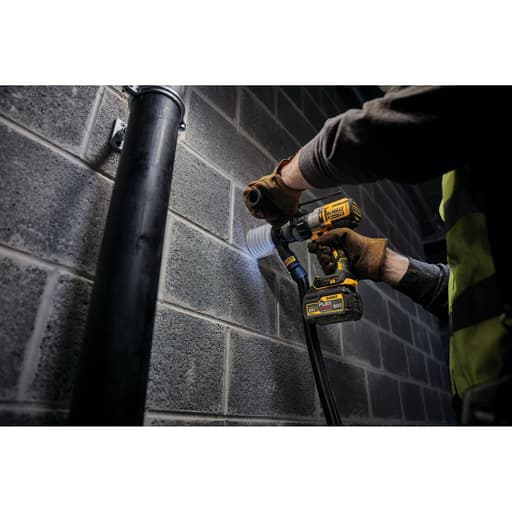

The clear tubes are the difference-maker. Being able to see the bit engage, track layout marks, and watch dust movement helps accuracy and confidence. The tube forms a collar around the hole, and as the bit advances, dust is pulled off the flutes into the tube. With the standard tube on a 3/8 in. bit for Tapcons in CMU, I could align easily and keep the tube square without obscuring the work.

I also appreciate that the kit includes a stop bit tube. If you’re drilling consistent embedments for adhesive anchors, pairing a stop bit with the depth rod makes for a very repeatable workflow.

Suction, hose, and vac pairing

Out of the box, you get a 4 ft anti-static hose with an AIRLOCK connection. The interior diameter of the hose is about 1/2 in., and the vacuum connector side is roughly 1-1/4 in. That small internal diameter is a pragmatic trade-off—it keeps the package light and maneuverable—but it does put more emphasis on maintaining airflow.

With a proper dust extractor attached (I used a HEPA unit with automatic filter cleaning), capture is excellent on holes within the kit’s optimum drilling range of 5/32 in. to 1-1/8 in. Fine dust disappears into the tube as you drill. On deeper holes (approaching 10 in.) in hard aggregate, you’ll occasionally generate larger spalls. If you force the bit, those chunks can momentarily lodge in the small hose. A couple of practical tips minimized clogs for me:
- Back the bit out periodically to clear the flutes, especially as you approach full depth.
- Let the hammer do the work—overfeeding increases chip size.
- Keep the extractor on auto-clean and check your hose path for gentle bends.

Without a vacuum, the kit still reduces plume and captures a surprising amount of dust at the hole. It’s promoted as an objective‑data compliant solution in that mode, but for the cleanest working environment (and to meet OSHA Table 1), I strongly prefer running a dust extractor.

Accuracy and depth control

Depth control matters as much as cleanliness when you’re installing anchors. The included depth rod is simple, rigid, and stays put. I measured hole depth repeatability at within 1/16 in. across a batch of wedge anchor holes in 4,000 PSI concrete—about as accurate as I can push with a rotary hammer. The long tube keeps its shape even when extended, so you aren’t fighting flex at full reach.

Field performance

• Overhead drilling: This is where the kit earns its keep. Working above shoulder height, dust capture was consistent and kept my lens and respirator clean. The tube seals well enough that you don’t get blowback around the collar.
• Tight spaces: The long tube is inevitably a bit bulky. In cramped stud bays or ceiling grid corners, I switched to the standard tube or reoriented the handle for clearance. The 4 ft hose is a happy medium—long enough to reach a cart-mounted extractor without adding drag.
• Brick and block: In softer materials, capture is nearly total, and the clear tube helps you see through surface spall to keep the hole centered.

OSHA compliance in practice

Two pathways are advertised:
- Without a vacuum: an objective‑data compliant solution.
- With a dust extractor: meets OSHA Table 1.

In the real world, I treat the first as a dust-reduction mode and the second as the jobsite standard. With a compliant extractor, you’re in the right lane for Table 1, assuming the rest of your silica control plan (filters, housekeeping, PPE) is in place. As always, verify with your safety team—tooling is just one piece of the program.

Build quality and maintenance

The tubes are clear and fairly tough; after a few drops and normal jobsite abuse, I only picked up scuffs, no cracks. The anti-static hose does its job keeping cling to a minimum, and the AIRLOCK connection is secure yet easy to detach when you need to blow out the tube.

Maintenance is simple:
- Tap out the tube between batches or run the extractor for a few extra seconds after you retract the bit.
- Wipe the inner walls with a damp cloth to restore visibility.
- Inspect the adapter rings and seals periodically—fine dust will find any gap.

The 3‑year warranty is a nice safety net, though this is a wear-and-tear accessory; care and cleaning will dictate lifespan more than anything else.

Limitations and quirks

• Hose diameter: At 1/2 in. internal diameter, the hose can bottleneck if you’re generating larger chips. If you routinely drill at the top end of the 1‑1/8 in. range in hard aggregate, take lighter pecks and clear flutes more often.
• Compatibility scope: It’s designed around DEWALT’s ecosystem. While adapter rings broaden fit, the best experience is on DEWALT hammers; check those two excluded models before you buy.
• Not for coring: This is for SDS‑Plus rotary hammer drilling, not wet coring or large-diameter dry coring. Keep it in its lane and it performs well.
• Bulk in tight corners: The long tube improves capacity and depth, but it’s less nimble in cramped spaces. Swapping to the standard tube helps.

Who it’s for

• Trades installing mechanical or adhesive anchors who want reliable dust capture without giving up visibility.
• Remodelers and facilities teams who need a portable, adaptable solution for varied hole sizes and depths.
• Crews working under OSHA silica rules who want a Table 1 pathway with a compliant extractor.

If you already own DEWALT rotary hammers and a DEWALT extractor, the integration is seamless. If your fleet is mixed, verify fit with your most-used hammer and vacuum connection before standardizing.

The bottom line

The dust tube kit strikes a smart balance: it keeps the work visible, captures dust effectively in the common SDS‑Plus range, and adds useful precision with the depth rod and stop-bit support. The small hose makes the system compact and easy to handle, though it asks you to use good drilling technique to avoid occasional clogs on deep or aggressive cuts. Paired with a proper extractor, it’s a clean, compliant setup that doesn’t feel like an add-on—you just drill and move on.

Recommendation: I recommend this kit for anyone doing regular masonry drilling who values clear sightlines and dependable dust control. It’s especially compelling for those already in the DEWALT ecosystem. If your work skews to very large diameters, heavy aggregate, or non-DEWALT tools, test fit and be aware of the hose’s small ID; you may prefer a larger, dedicated shroud system. For the typical anchor range up to 1‑1/8 in. and depths to 10 in., this kit is a practical, well-thought-out solution that keeps dust down and productivity up.
