Features
- Includes a PWR CORE 20 5.0Ah lithium battery and automatic PWR JUMP charger
- PWR CORE 20 battery cells wrapped with cooling material to improve run time and extend battery life (manufacturer claim: ~25% longer run time, 2× battery life)
- PWR JUMP fast-charge capability (manufacturer states a partial charge in 5 minutes and full charge in 60 minutes)
- 4-mode selector: drill, hammer drill, chisel, and chisel alignment
- Digital brushless motor for higher efficiency and performance
- SDS Plus chuck for quick, tool-free bit changes
- Variable speed control for application-specific speed
- Includes depth rod and side handle for control and accuracy
Specifications
Chuck Type | SDS Plus |
Impact Force | 2.0 J |
Max Impact Rate | 4500 ipm |
No Load Speed | 0–1400 rpm |
Variable Speed Switch | Yes |
Voltage | 20 V |
Included Battery Capacity | 5.0 Ah |
Charger | Automatic PWR JUMP (fast-charge capability) |
Modes | Drill, hammer drill, chisel, chisel alignment |
Included Accessories | Depth rod, side handle, PWRAssist USB adapter, manual, warranty card |
Related Tools
Related Articles

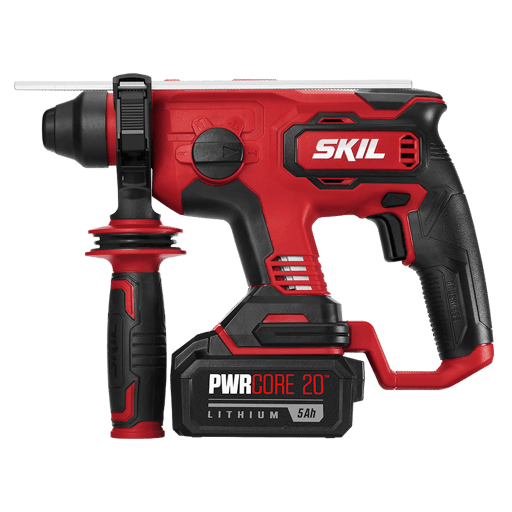

Four-mode rotary hammer for drilling and chiseling masonry and similar materials. It uses a brushless motor and an SDS Plus chuck. The kit includes a 5.0Ah PWR CORE 20 lithium battery, an automatic PWR JUMP charger, depth rod, side handle, a PWRAssist USB adapter, and documentation.
Model Number: RH1704-1A
Skil PWR CORE 20 Brushless 20V 7/8 in. Rotary Hammer Kit with 5.0Ah Battery and PWR JUMP Charger Review
A compact SDS-Plus hammer that punches above its weight
I put the Skil 20V rotary hammer to work the way most of us actually use an SDS-Plus tool: drilling anchors in cured concrete, punching holes through block for conduit, and doing light chiseling for tile and small channels. Over a couple of weeks of tasks, it showed a useful mix of speed, control, and convenience, with a few quirks to keep in mind.
What you get and setup
The kit includes the tool, a 5.0Ah PWR CORE 20 battery, the PWR JUMP automatic charger, a side handle, a depth rod, a PWRAssist USB adapter, and the usual paperwork. Bit changes use the SDS-Plus chuck—push in, click, and you’re ready to work—so setup is quick, especially if you’re hopping between hole sizes.
The side handle is simple but effective, clamping securely without creeping during heavier drilling. The depth rod is easy to set and doesn’t wander, which matters when you’re installing a run of wedge anchors and want consistent embedment.
Power and drilling performance
With 2.0 joules of impact energy and up to 4,500 blows per minute, this is a mid-size SDS-Plus hammer intended for the everyday concrete jobs most remodelers, maintenance techs, and DIYers face. In hammer-drill mode, it’s right at home with 1/4 to 3/8-inch masonry bits in cured slab and CMU. It bites quickly, clears dust well, and doesn’t bog unless you lean too hard. With 1/2-inch holes, it’s still capable; you just need to let the tool do the work and keep a steady, moderate feed pressure.
Skil’s brushless motor helps here. Start-up is crisp, the power curve feels linear, and there’s enough headroom to avoid the on/off surging you sometimes get with smaller brushed models. I didn’t feel corded-class power—and wouldn’t expect to—but for portable anchor work and occasional larger holes, it’s up to the task.
Chiseling and the four modes
The four-mode selector gives you drill (no hammer), hammer drill, chisel, and chisel alignment. The last one is more useful than it sounds: it lets you rotate and set the chisel’s orientation before locking into hammer-only. That saves time when you’re chasing a line for conduit or lifting tile and need the blade just so.
As a chipping hammer, it’s best for light duty: scraping thinset, popping tile, trimming small edges, and cleaning out notches. It will fatigue you if you treat it like a bigger SDS-Plus or SDS-Max breaker, but used as intended, it’s nimble, easy to place, and avoids over-damaging surrounding material.
Trigger control and speed
The variable-speed trigger is well judged. Feathering a hole on glazed tile or keeping a small tapcon bit from skating is straightforward in drill mode. In hammer-drill, the ramp-up is smooth, minimizing bit walk, and it settles into an efficient groove quickly. That consistency matters when you’re drilling a dozen holes in a row and want every one to feel the same from start to finish.
SDS-Plus chuck and bit changes
The SDS-Plus chuck on my unit locked bits positively with minimal play. Ejecting hot bits after long runs was no problem—the collar has enough knurling to grab with gloves. I didn’t notice excessive wobble at the tip with longer bits, which helps reduce wallow and leads to cleaner anchor holes.
Ergonomics and vibration
Ergonomically, it’s balanced around the handle with the 5.0Ah pack installed. It’s not featherweight, but the stance encourages proper two-handed control, and the included handle can be positioned where you need leverage without interfering with your sightline. Vibration is about what I expect for this class: present, but not fatiguing over a session of light-to-moderate drilling. I’d still wear proper gloves and hearing protection; like any rotary hammer, it’s loud in operation.
Battery life, cooling, and runtime
Skil wraps its PWR CORE 20 cells in a phase-change cooling material, and while I can’t quantify the effect, the pack stayed warm rather than hot after a run of consecutive holes in hammer-drill. That correlates with consistent performance throughout the charge. The 5.0Ah capacity pairs well with the tool—enough juice for a typical morning of intermittent anchor drilling or an afternoon of light chiseling without babysitting the charger.
Real-world runtime will depend on bit size and material. With 1/4 and 5/16-inch anchors in solid concrete, I had no trouble getting through a punch list. Move up to repeated 1/2-inch or 5/8-inch holes and you’ll chew through the pack more quickly, as expected for a 2.0J hammer.
Charging experience and the PWR JUMP system
The PWR JUMP charger is genuinely handy in a pinch. The five-minute “boost” was enough to finish a short run when I misjudged remaining charge, and full charges landed right around the hour mark in my tests, which aligns with Skil’s claim. However, the charger’s cooling fan is louder than most of the others on my bench. It’s not a deal breaker, but it’s noticeable in a quiet shop. If noise sensitivity is a concern, park the charger in a garage or job box and you won’t think about it again.
The included PWRAssist USB adapter is a thoughtful bonus. I used it to top up a phone once, and it’s the kind of little add-on that matters if you’re consolidating chargers and packs across tools.
Controls and usability details
- Mode selector: Positive detents with clear icons. I didn’t accidentally bump it out of mode.
- Depth rod: Stays put and is easy to readjust mid-task.
- Grip and trigger: The main handle has a comfortable contour and rubber overmold in the right places. The trigger pull is predictable and not overly stiff.
- Visibility: There’s no built-in dust shroud, so plan for extraction if you need clean holes; the tool’s profile does leave room for a vacuum nozzle close to the hole.
Reliability and build impressions
The tool housing feels solid, and the gearbox area has a reassuring lack of flex when the bit binds. I didn’t experience thermal shutoffs or electronic oddities while drilling and chiseling. That said, this is a compact 20V hammer—keep it in its lane. If your week involves core drilling, constant 5/8 to 7/8-inch holes in hard aggregate, or daily heavy chipping, you’ll want to step up to a more powerful rotary hammer. Used for periodic anchors, light trenching in masonry, and remodel tasks, it feels well matched.
As with any battery system, make sure the pack seats fully; an imperfect connection can mimic tool issues. I made a habit of clearing dust from the battery shoe at the end of the day.
Who it’s for
- Trades and facility maintenance who need a portable SDS-Plus for recurring anchor and through-wall work, but not all-day heavy hammering.
- Remodelers tackling bath/kitchen tile, occasional slab anchors, and light chipping where agility matters more than raw impact energy.
- DIYers who want a capable hammer drill that’s a clear step up from percussion drill/drivers, with a fast-charging system to minimize downtime.
If you’re already on Skil’s PWR CORE 20 platform, this hammer meaningfully expands what you can do in masonry without jumping to a different battery ecosystem.
The bottom line
The Skil 20V rotary hammer delivers the essentials: quick SDS-Plus bit changes, a useful four-mode selector with chisel alignment, a smooth brushless motor, and a battery/charger pairing that keeps you moving. It handles the common jobs with confidence and avoids trying to be something it’s not. The main caveat is the charger’s fan noise; it’s louder than average. If you can live with that—and many will—the overall package is compelling for light-to-moderate concrete work.
Recommendation: I recommend this tool for users who need a capable, compact SDS-Plus hammer for everyday anchor drilling and light chiseling, especially if fast turnaround charging appeals to you. If your workload leans toward heavy, continuous chiseling or large-diameter drilling, consider a higher-impact model; otherwise, this kit hits a practical sweet spot in performance, convenience, and value.
Project Ideas
Business
Masonry Mounting & Anchoring Service
Offer a mobile service to securely mount items on brick, block, and concrete: TVs (on masonry walls), handrails, hose reels, pergola/post bases, mailbox plates, and shelves. The hammer drill mode with SDS Plus bits speeds anchor holes, while fast charging keeps you on schedule for multi-stop days.
Tile & Thinset Removal + Surface Prep
Provide small-to-mid scale demo: pop tile, scrape thinset, and roughen concrete for retiling or LVP installs. Chisel mode with wide and pointed bits handles removal and spot-chipping high areas, delivering quick turnaround for homeowners and flippers.
House Numbers and Entry Upgrades
Package install of modern house numbers, mail slots, doorbell/camera plates, and decorative plaques on brick or stucco. Upsell with custom engraved stone/plaque add-ons made in-house. Clean holes and flush-mounted hardware give a premium look.
Security Camera & Exterior Lighting Mounts
Specialize in drilling and anchoring for wired or wireless cameras, motion lights, and conduit clips on masonry exteriors. Offer neat cable management and sealant finishing. Rapid on-site charging reduces downtime between ladder moves and locations.
Flooring RH/Test Hole Drilling
Partner with flooring contractors to drill precise, clean holes in concrete slabs for relative humidity probes and moisture testing. Use the depth rod for consistent depths, vacuum while drilling for dust control, and provide hole patching after readings if requested.
Creative
Modern Cinder-Block Lantern
Turn a standard cinder block into a garden lantern by drilling a star or geometric pattern of holes and then using chisel mode to connect select holes into slots. Drop in an LED puck or candle inside. The chisel alignment mode helps keep lines straight, and the depth rod ensures uniform perforations for a clean, modern look.
Engraved Stone Address Plaque
Use chisel mode to lightly carve numbers and borders into a slate or concrete paver, then drill clean mounting holes with masonry bits. Finish by paint-filling the numbers and sealing the surface. The variable speed and depth rod make it easier to control line depth and avoid blowout near edges.
Textured Concrete Art Panel
Cast a thin concrete panel (or repurpose a stepping stone) and use chisel mode to create relief textures, channels, and patterns. Drill pilot holes on the back side to mount hidden standoffs for a floating wall effect. The chisel alignment mode helps maintain consistent groove orientation.
Garden Trellis Anchor System
Drill holes into a brick or block wall to set stainless sleeve anchors for a custom trellis grid using wire rope or rebar. Chisel shallow recesses so hardware sits flush and looks intentional. The SDS Plus chuck speeds bit swaps between pilot and final holes for a tidy install.
Rustic Stone Birdbath
On a soft limestone or cast-concrete slab, use chisel mode to carve a shallow basin and a small overflow notch, then drill a tiny drain hole if desired. Smooth with masonry rubbing stone and seal. Work slowly with variable speed to reduce cracking and chip-out.
