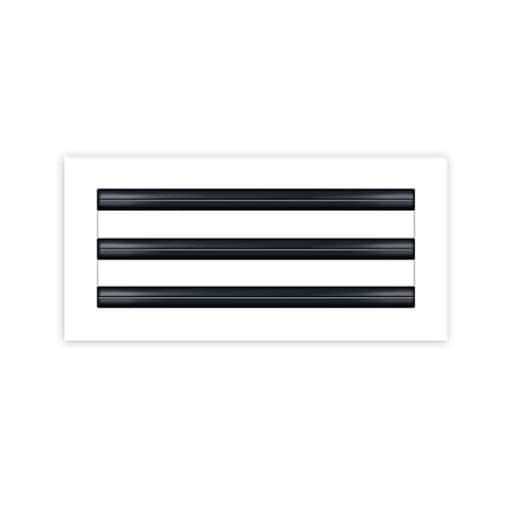

BUILDMART - 14x6 White Modern AC Vent Cover - Decorative Air Vent - Standard Linear Slot Diffuser - Register Grille for Ceiling, Walls & Floors - Texas Buildmart

Why I swapped my grilles for a linear slot diffuser

A dated vent grille can make a freshly painted wall look unfinished, so I replaced a standard 14x6 register in a hallway with the Buildmart 14x6 linear slot diffuser. I wanted a clean, modern look without compromising airflow. After living with it for several weeks—and installing a few more throughout the main floor—here’s what stood out.

Design and build

The diffuser feels legitimately premium. It’s all aluminum, with a sturdy frame and a crisp white finish that reads “architectural” rather than “builder-grade.” The face is a minimalist slot rather than a louvered grid, which does more than change the look—it changes how air distributes into the room. The finish is even and smooth out of the box and can be repainted if you need to color-match.

A few practical notes on construction:
- It’s designed as a decorative cover, not a structural grate. You can put it in a floor, but you shouldn’t step on it.
- The adjustable interior fins are metal and substantial. They slide to fine-tune throw and direction, and they’re held by metal clips.
- Hidden fasteners are a nice touch—no exposed screws on the face.

The piece I installed had tight, clean corners. On one unit, a corner arrived slightly out of square and needed a gentle tweak; given the weight and precision of the frame, I’d prefer more protective packaging at this price.

Sizing and airflow

This model is sized for a 14x6 duct opening. The neck (the part that inserts) measures 13 3/4 by 5 15/16 inches, and the face is 15 9/16 by 7 5/8 inches. The fit is precise, which is good for looks and sealing but unforgiving for sloppy duct boots. If your boot is bent, full of mastic blobs, or out of square even by a millimeter, expect to do a bit of cleanup for a proper fit.

The diffuser is rated around 256 CFM with an effective velocity of 9.8 ft/s in an ideal setup. In my case, at typical residential static pressures, it delivered plenty of air to a medium hallway. Leave the fins more open for quieter operation and less restriction; tilt and close them when you want a stronger, more directional throw.

It’s a non-filtered design and can be used as either a supply or a return, assuming filtration is handled elsewhere in the system.

Installation: clean look, fussy access

The payoff for having no visible screws is that you install it through the opening—accessing pre-drilled holes by sliding the internal fins aside. It’s absolutely doable, but you’ll want the right approach:

• Remove the old grille and measure the duct opening, not the old grille’s face.
• Test fit and, if needed, carefully reshape the boot and scrape away excess mastic so the neck slides in squarely.
• Use a drill or driver with a 4–6 inch #2 bit extension to reach the hidden screw holes. I strongly recommend drilling pilot holes; self-tappers alone can skid and mar the finish.
• Put painter’s tape along the face while you work to prevent scratches.
• If your drywall edges are ragged, be ready with touch-up mud/paint.

One caution: the adjustable fins can pop out of their clips if you push them too aggressively while reaching for the screw holes. If that happens, it’s recoverable—each fin rides on its own rails and slides back into shared clips—but it’s fiddly. A soft, stiff spatula or a plastic trim tool helps move fins without scratching.

If your ducts are square and your framing is cooperative, a single diffuser is a 10–15 minute job. If your boots are wavy or you’re working overhead, plan on longer.

Day-to-day use

Once installed, the diffuser looks great—sharp edges, a quiet slot, and no visible fasteners. Adjustability is better than I expected. With the fins slightly angled, I got a broader, more even wash of air than the old stamped grille, which used to blast one spot and leave corners stagnant. In a living area with two diffusers opposite each other, this helped equalize temperature without constantly redirecting vanes.

Cleaning is easy: a microfiber cloth and a mild cleaner take care of dust; the slot is wide enough to reach the fins without disassembling anything.

Noise and performance

Noise depends on how your system is balanced. With the fins open, the diffuser produced a soft, broadband whoosh at typical residential air speeds—no rattles. Closing the fins to push air farther increased the sound notably, which is expected with any higher-restriction setting. As a return grille, leaving the fins fully open kept the system quieter and happier. If you need a silent bedroom and your system runs high static pressure, keep that in mind and avoid over-restricting the slot.

Compared to the stamped steel grille I replaced, I heard less chuffing and zero rattle. At higher fan speeds, you’ll still hear airflow; a linear slot doesn’t make physics vanish, but it distributes air more evenly while keeping tonal noise less harsh.

Where it shines

• Modern, cohesive look across walls, ceilings, and low-traffic floors
• Solid aluminum build that won’t warp or rattle
• Hidden fasteners for a clean face
• Meaningful adjustability from the internal fins
• Easy to clean and paintable if you’re matching trim

In a mid-century living room and a renovated hallway, the diffuser improved the visual continuity and helped soften drafts. Friends noticed the change without quite knowing why, which is the goal with detail upgrades.

What could be better

• Installation through the fins can be delicate. A captured-fins mechanism or a spring-clip option for smaller sizes would make life easier.
• Tight tolerances demand well-prepared duct boots. A 1–2 mm relief on the neck or a thin factory-installed foam gasket would reduce field fiddling.
• The finish can scratch during install if you’re careless. Painter’s tape is cheap insurance, but more protective packaging wouldn’t hurt.
• Price lands this in the “design upgrade” category. Replacing a whole house adds up quickly.

None of these are deal-breakers, but they’re good to know before you start.

Tips before you buy and install

• Measure the duct opening, not your old grille.
• If you’re using it as a return, plan to keep the fins fully open to minimize pressure and noise.
• Have a 4–6 inch bit extension, a small pilot drill, and a few shorter screws on hand.
• Protect the face with tape while installing and use a plastic tool to move fins.
• For floor installs, think of it as a low-traffic area only—never step on it.

The bottom line

The Buildmart 14x6 linear slot diffuser hits the mark for homeowners and renovators who care about both airflow and aesthetics. It’s robust, clean-lined, and functionally flexible, with a hidden-fastener design that looks genuinely high-end once in place. The tradeoff is a more demanding installation and a price above commodity grilles.

Recommendation: I recommend it for design-focused upgrades where you’re willing to spend a little more time on install to get a seamless, modern look. If you want a quick, no-fuss replacement, or your system is very sensitive to restriction, you may prefer a simpler, front-screw grille or a return-specific model. For everyone else, this diffuser is a thoughtful, well-built way to elevate a space without touching the ductwork behind it.
