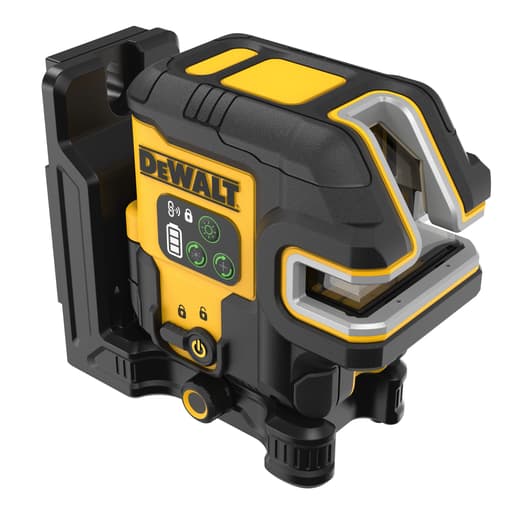

DeWalt USB Rechargeable Green 5 Spot and Cross Line Laser Kit

Why I reached for this laser

I spend a lot of time bouncing between layout, cabinetry, and light framing, and I’ve learned that a cross-line plus 5-spot laser is one of the most versatile formats for interior work. DeWalt’s green 5-spot cross-line laser stood out because it blends that layout versatility with modern conveniences: USB-C charging, a compact body with a fine-adjust knob, and a remote for hands-off control. After several weeks of using it on punch lists, a bathroom remodel, and a basement layout, I have a good feel for where it excels—and where it doesn’t.

Setup, mounting, and build

The laser ships in a sturdy case with a mounting plate, remote, USB-C cable, and a power adapter. The mounting plate is the unsung hero here: it’s magnetic, has a keyhole slot for hanging, and features a fine-adjustment knob that lets you “walk” the beam onto a mark without nudging the whole setup. For me, that fine adjust is the difference between an easy solo layout and a frustrating one.

Mounting options are flexible. The base has 5/8"-11 tripod threads, and you can use an adapter if your tripod is 1/4". The rare-earth magnets are strong enough to plant on steel studs or door frames, and I had no issues with slippage once the surface was clean. If you’re used to heavier, battery-pack lasers, this one’s compact footprint feels nimble. It’s also IP54 rated; dust and splash resistance were reassuring on a tile saw day when slurry tends to go everywhere.

One note: there’s no tripod in the kit. If you don’t already own one, plan on adding that to your setup. The included plate gets you pretty far on metal and wood surfaces, but a tripod still makes ceiling work and long interior lines more efficient.

Controls and self-leveling

Controls are straightforward. The unit self-levels quickly and blinks when it’s outside its leveling range—a clear, simple warning. The front panel toggles between line and point modes. The remote is intentionally simple: power and brightness. I didn’t miss beam-mode control on the remote; in practice, I set the mode on the body, then used the remote for brightness tweaks and quick on/off while moving around a room.

The self-leveling action is snappy and settles without the jitter I sometimes see on older pendulum systems. If the device is tilted beyond its compensation range, the beam shuts down rather than leaving you with a misleading line, which is exactly how it should behave.

Visibility and accuracy

This is a green laser, and the lines present crisp edges with minimal flare on matte surfaces. Indoors, the visual range is excellent. I could chase a horizontal line around a 40-foot basement and still see it clearly for ledger layout and cabinet reference lines. The five points are bright, clean, and perfectly concentric with the line work. The front/left/right points make quick work of squaring and transferring layout, and the plumb up/down spots are fast for transferring marks from floor to ceiling.

DeWalt rates the accuracy at ±1/8 inch at 33 feet. On my bench test (two-wall check at 33 feet with flip test), I measured error within spec. More importantly, spot-to-line alignment held true when switching between modes; I didn’t see any weird offsets that sometimes creep in with combination units.

Outdoors is the predictable caveat. In bright daylight, the line fades fast past a few feet—even green diodes can’t win a fight with direct sun. With shade or overcast, it’s usable for short runs. The laser does support a detector, and with one, you can push the effective range to long exterior runs. If exterior work is your primary mission without a detector, an optical level or rotary laser will serve you better.

Runtime and charging

I’ve grown to appreciate the integrated USB-C charging more than I expected. Runtime is quoted up to 16 hours depending on brightness and mode, and my real-world use lines up with that—especially when I keep brightness one notch down from max indoors. The ability to run while charging is a genuine safety net; I ran it off a USB-PD power bank during a long layout day and never had to pause.

Charging is fast. Using the included power adapter, I could top it up over lunch enough to comfortably finish the afternoon. For small shops and remodelers who already carry USB-C chargers for phones and tablets, this is a convenient ecosystem play. No proprietary charger to misplace, no bulky tool-battery footprint on the body.

Day-to-day performance

• Basement ceiling ledger and drywall lines: The horizontal line wrapped the room cleanly, and the fine-adjust made it easy to keep the beam on a pencil mark while nudging the bracket.
• Shower and tile work: The vertical line helped square tile courses, and the plumb spots simplified transferring plumbing locations through blocking to finish surfaces.
• Door/trim checks: The vertical line is a fast truth-teller for casing tweaks; the dots make quick plumb references without the clutter of a full line when I don’t need it.
• Framing/rough layout: The three horizontal points are handy for shooting square across a space, and the plumb down point pinpoints locations for anchors and layout on concrete.

The remote proved surprisingly useful. On/off from across a room lets you prevent accidental blinding when coworkers walk through the beam, and brightness tweaks from a ladder are safer than climbing up and down just to dim a line.

Durability and ergonomics

Build quality meets the expectation for a jobsite tool. The housing feels solid with grippy overmold, the pendulum locks are positive, and the lens windows are recessed enough to avoid most scuffs. The USB-C port has a snug cover that stayed put through dust and light spray. I’d still be mindful around heavy slurry or direct hose-downs, but for typical remodel dust and the odd splash, the IP54 rating is up to the task.

Ergonomically, the compact size is a win on crowded interiors. The single-knob fine adjust is smooth with just enough resistance to prevent overshooting. The only gripe I have is that the power/button icons could be more distinct for gloved hands—fine bare-handed, a touch fiddly with thicker gloves.

What it’s not

This isn’t a 3×360-degree laser. You get a cross line (one vertical, one horizontal) and five points, not wraparound 360 planes. If you regularly do full-room drop ceilings or need continuous lines around obstacles, a 360 laser is the better call—though typically larger and more expensive. It’s also not a great naked-eye exterior tool; plan on a laser detector for daylight or choose an optical/rotary solution.

Who will get the most out of it

• Remodelers, finish carpenters, and cabinet installers who value crisp indoor visibility, quick setup, and flexible mounting.
• Solo operators who benefit from the remote and fine adjustment for mark-to-line accuracy without a helper.
• Pros and serious DIYers who prefer the convenience of USB-C charging over platform batteries for a compact footprint.

If you already own a fleet of tool-battery lasers and like the shared pack ecosystem, the integrated battery here may feel like a departure. For me, the compactness and fast USB-C top-ups outweigh that concern.

Recommendation

I recommend this DeWalt green 5-spot cross-line laser. It’s accurate, compact, and thoughtfully equipped for interior layout. The combination of crisp green lines, reliable self-leveling, strong magnets, and a genuinely useful fine-adjust bracket made my layout work faster and more precise. USB-C charging and the ability to run while plugged in remove a lot of battery anxiety, and the simple remote is a nice productivity boost for solo tasks.

It isn’t the right pick if most of your work is exterior without a detector, or if you require full 360-degree planes. But for interior builds, remodels, and general layout where versatility and speed matter, this unit strikes an excellent balance of features, runtime, and build quality.
