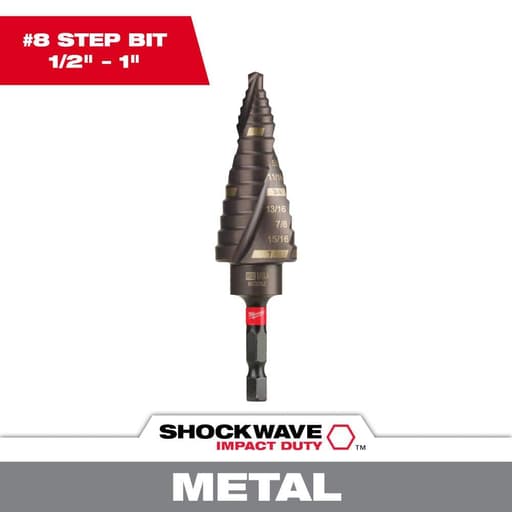

Milwaukee Impact Duty Step Bit

Milwaukee has long been a trusted name in the tool industry, consistently delivering products that blend durability, innovation, and performance. The Impact Duty Step Bit, model number 48-89-9248, is no exception. Designed specifically for use with impact drivers and drill/drivers, this step bit promises to elevate your drilling tasks with its robust construction and thoughtful design features.

One of the first things I noticed about this step bit is its Titanium Aluminum Nitride (TiAlN) coating. This coating not only enhances the bit's durability but also significantly reduces heat build-up, which can be a major issue during prolonged drilling sessions. The TiAlN coating is a step up from the standard titanium coating, promising up to five times longer lifespan. This is particularly beneficial when you're drilling through tougher materials like steel, where heat can quickly dull a lesser quality bit.

The bit features a Rapid Strike Tip, which is designed to improve starting accuracy. I found this to be particularly useful when drilling into metal, where precision is key. The bit starts cleanly and reduces the chances of wandering, a common issue with some other step bits. This feature alone can save you a lot of time and frustration, especially when working on projects that require multiple precise holes.

Another standout feature is the dual spiral flute design. This design allows for faster drilling by efficiently clearing away debris from the hole. In my experience, this makes a noticeable difference, especially when working on thicker materials. The bit doesn't get bogged down by metal shavings, allowing for a smoother and quicker drilling process. This is complemented by the Shock Zone body design, which minimizes early shank breaks. Milwaukee has clearly put thought into making this bit as resilient as possible, and it shows in its performance.

One aspect that I particularly appreciated is the laser-engraved steps. Each step size is clearly marked, making it easy to stop at the exact size you need without guesswork. This is a small but significant detail that adds to the overall user experience. It’s especially useful when you’re working under less-than-ideal lighting conditions or when you need to switch between different hole sizes quickly.

However, while the Impact Duty Step Bit excels in many areas, it does have its limitations. The most notable is its maximum material thickness. This bit is optimized for materials up to 1/8" thick. If you’re working with thicker materials, you might find that the bit struggles or dulls more quickly. This is something to keep in mind if your projects frequently involve heavy-duty materials. I encountered this limitation when attempting to drill through 3/16" steel plates. The bit managed the first plate but struggled with subsequent ones, eventually dulling to the point of being unusable.

Despite this, the bit performs admirably within its intended use case. Tasks like enlarging existing holes, working on sheet metal, or drilling into thinner steel are handled with ease. The bit’s compatibility with both impact drivers and drill/drivers adds to its versatility, allowing you to use it with various tools you might already own. This is a significant advantage for those who prefer not to switch tools frequently.

Another aspect worth mentioning is the bit's weight and dimensions. At just 0.26 lbs and with a compact size, it’s easy to handle and doesn’t add unnecessary bulk to your tool kit. Its 1" length and 3.91" height make it a convenient option for tight spaces where larger bits might struggle to fit.

In terms of price, the Impact Duty Step Bit is on the higher end, but considering its performance and durability, it offers good value for money. The investment is justified by the time and effort saved on jobs that require precision and reliability. However, if you're looking for a bit to tackle extremely thick materials regularly, you might need to consider other options or be prepared to replace the bit more frequently.

One minor gripe I had was the difficulty in ensuring I didn’t drill past a specific step size. While the laser-engraved steps are helpful, I found that relying on painter’s tape as a makeshift drill stop was not very effective. A more robust solution for this would be a welcome addition.

In conclusion, the Milwaukee Impact Duty Step Bit is a high-quality, reliable tool that excels in many areas. Its durability, precision, and thoughtful design features make it an excellent choice for anyone working with materials up to 1/8" thick. The TiAlN coating, Rapid Strike Tip, and dual spiral flute design all contribute to a superior drilling experience. While it does have its limitations with thicker materials, it’s a versatile and valuable addition to any tool kit for those working within its optimal range.

I would recommend this step bit for professionals and DIY enthusiasts who frequently work with sheet metal, thin steel, or need to enlarge existing holes. Its performance and durability justify its price, and it stands out as a reliable tool for a variety of drilling tasks. If your projects often involve thicker materials, you might need to look elsewhere or use this bit in conjunction with other tools. Nonetheless, for its intended use, the Milwaukee Impact Duty Step Bit is a top-notch choice.
