DeWalt 3/4 in. Stud Finder

I grabbed this stud finder for a weekend run of wall shelves, curious whether a center-detect sensor in a slim, budget-friendly body could replace the small magnet I usually keep in my pouch. After several projects on different wall types, I have a clear sense of what the DW0100 does well—and where it trips up.

Setup and ergonomics

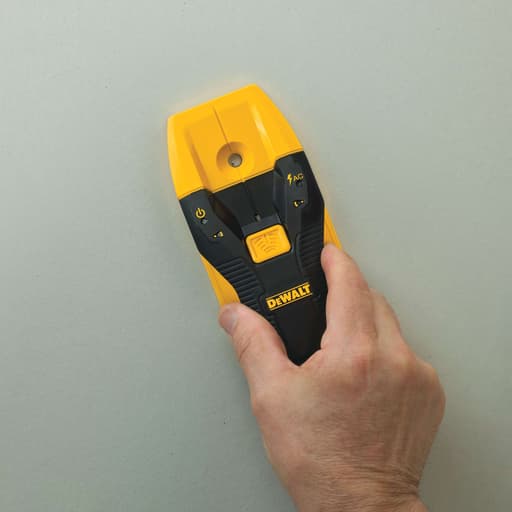

The DW0100 is featherlight and compact, with a single large button under your index finger and a smooth, low-friction pad on the back that glides over paint without scuffing. The center-marking groove at the top sounds like a small touch, but it makes it easier to transfer marks without juggling a pencil and tool at odd angles.

A few nitpicks surfaced early. The battery door latch is tight, and the polarity marks inside are tiny. That’s not a frequent task, but it’s fussy the first time. The main button requires steady pressure to keep the sensor active; longer scanning passes caused finger fatigue more than I expected. Finally, there’s no backlit display—just LEDs—so in dim rooms you’re relying on color and sound.

On the plus side, it includes two AAA batteries, auto-calibrates constantly while pressed, and the audible alarm is loud enough to cut through jobsite noise. It’s an unpleasant chirp, but you won’t miss it.

How it works

This is a center-find electronic scanner rated to 3/4 inch for both wood and metal studs. The interface is simple:

• Green LED: power on
• Yellow arrows: move left or right
• Red center LED: stud center detected
• Separate red indicator: AC/live-wire detected

It calibrates on the fly each time you press the button. That’s convenient, but it means technique matters. If you start the scan with the tool over a stud, a seam, or a corner bead, calibration can be skewed and the guidance will chase ghosts. The right move is to start on a known “empty” section of wall, hold steady pressure, and slide smoothly past the suspected stud location. I had the best results making two or three slow passes from opposite directions and only marking when the center LED repeated in the same spot.

Accuracy and consistency

On standard interior walls—1/2-inch drywall over dimensional studs 16 inches on center—the DW0100 can be accurate. In a living room shelf install, it consistently found centers within 1/8 to 1/4 inch of where a small rare-earth magnet later pinpointed screws in the stud face. The directional arrow guidance is responsive and intuitive, and the center mark channel is precisely where you want it relative to the sensor.

Things got less reliable as conditions became less ideal:

• Fresh paint with heavy texture or thick skim coat: The sensor wandered and produced inconsistent center marks on repeated passes.
• Double-layer drywall (5/8 + 1/2): This exceeds the practical sensing limit. The tool gave arrows and occasional centers that didn’t repeat—my cue to stop trusting the readout.
• Plaster and lath: This isn’t the tool for that application. The variable density of lath and plaster confuses the auto-cal routine. Expect false positives and drifting centers.
• Near corners or over wide seams: The calibration routine struggles and can indicate “centers” that shift several inches on subsequent passes.

In metal stud partitions (1/2-inch drywall over 25-gauge steel), it did pick up metal studs and offered a center indication, but repeatability was mixed. I’d recommend confirming with a magnet on metal framing regardless of the electronic readout.

Bottom line on accuracy: when the wall assembly matches the tool’s intended depth and you use careful technique, it can put you on target. As the assembly gets thicker or more complex, results become inconsistent.

AC/live-wire detection

Live-wire detection is both a helpful safety net and the most frustrating part of this stud finder. The indicator often lights where you’d expect—near outlets, switches, and appliance chases—and it did help me avoid drilling near a cable bundle while setting hollow-wall anchors.

The flip side is a wide detection envelope and frequent “maybe” alerts that didn’t correlate with actual conductor paths. In kitchens and media walls with multiple circuits, the AC LED was on so often that it lost diagnostic value. It also tossed up occasional wire warnings on blank sections of wall that didn’t repeat on a second pass. Treat it as a caution flag, not a map. If you truly need to trace power, a dedicated non-contact voltage tester is the right tool.

Tips that improved reliability:
- Keep the tool away from cords and power strips during scanning.
- Make two slow passes from opposite directions; ignore single, non-repeating wire alerts.
- Expect broader warning zones near multi-gang boxes and conduit.

Speed and workflow

Auto-calibration is fast—press, slide, mark—which makes this a quick tool for basic hangs when conditions are simple. The lack of a backlit display means you’re watching LEDs and listening for the chirp rather than interpreting numbers; that’s a pro for speed and a con for nuance. On tricky walls, the time you save on setup can get eaten by re-scanning and cross-checking, which is where the tool’s value starts to slip.

Build quality and durability

The housing is basic injection-molded plastic. Mine survived drops to painted drywall and shop floors without issue, but it doesn’t have the overmolded feel of pricier units. The sliding pad stayed smooth and didn’t mar eggshell paint. At 1.6 ounces, it’s pocketable and won’t weigh down a pouch. Warranty coverage—three-year limited, one-year free service, and a 90-day satisfaction guarantee—is generous for a tool in this category.

Best practices for better results

• Start on a blank section of wall; avoid edges, seams, and fasteners during initial calibration.
• Move slowly with even pressure and keep the tool flat; don’t lift while the button is pressed.
• Make at least two passes from opposite directions; only mark centers that repeat.
• Confirm with a small magnet or a pilot hole where failure carries a penalty.
• If you get constant AC warnings, scan with a non-contact voltage tester before drilling.

Who it’s for

• DIYers hanging shelves, TVs, or cabinets on modern drywall who want a simple, audible/visual guide.
• Pros who need a quick locator on standard interior partitions and are disciplined about secondary verification.
• Not ideal for old homes with plaster and lath, walls with paneling or tile over drywall, or anyone who needs consistent wire mapping.

Competition within its own family

If you regularly deal with thicker walls or inconsistent results, stepping up to a deeper scanner in the same family can make a difference. The 3/4-inch depth ceiling is the DW0100’s hard limit; no amount of technique overcomes that on dense assemblies.

The bottom line

This stud finder can be a handy, fast, and accurate helper on straightforward drywall. The center-mark channel, simple LED arrows, and loud alert make it easy to use, and the constant auto-calibration keeps setup friction low. But reliability is the whole ballgame for stud finding, and here the DW0100 is temperamental. On textured or multi-layer walls, or near electrical clutter, the center readings don’t always repeat and the AC detection casts a net so wide that it becomes noise.

Recommendation: I would not recommend this as a primary, trust-it-every-time stud finder. It’s acceptable for simple drywall in newer construction if you pair it with good technique and always confirm critical holes. If you often work on thicker or older walls, or you need dependable live-wire discrimination, look for a deeper, more consistent scanner and keep a magnet in your pocket for verification.
