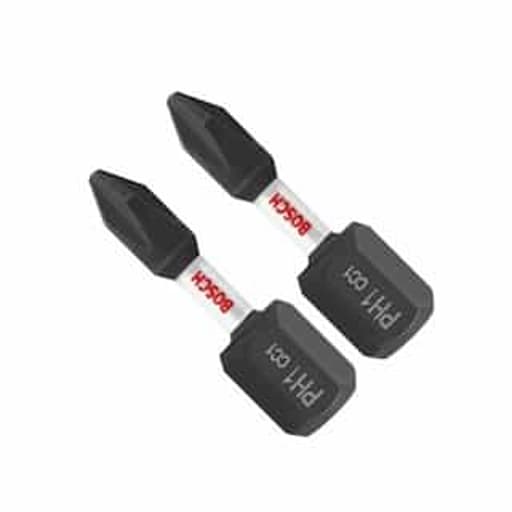

Bosch 1-inch driven impact insert bit, Phillips #1 (2-pack)

Why a dedicated PH1 impact bit still matters

Small Phillips screws are easy to underestimate. They’re often holding on faceplates, attaching light hardware, or anchoring delicate brackets where a slip can scratch a finish or strip a head. That’s the context where Bosch’s PH1 impact insert bits have been living in my kit for a few months. They’re short, purpose-built, and promise a longer life under impact torque than standard bits. I put them to work on cabinet hardware, electrical cover plates, and a couple of trim and bracket installs to see if the design pays off.

Design and build

This is a 1-inch insert bit with a 1/4-inch hex shank, sized for Phillips #1 screws. It’s a compact format that sits close to the tool’s nose, which reduces wobble and helps keep the bit straight on tiny fasteners. Bosch gives it a few upgrades over a generic insert:

• A torsion zone in the body to absorb impact pulses and reduce breakage.
• A precision-milled tip that’s intentionally sharp and crisp at the wings.
• Heat-treated, hardened steel.
• A magnetic tip and laser-etched “PH1” markings.

The torsion zone is the standout here. On most 1-inch inserts, the body is a single hardness and they simply snap or round over when abused. Bosch machines a necked-down section that visibly flexes if you watch closely while driving. The laser marking is small but legible, which saved me a few times from grabbing a PH2 out of habit.

The 1-inch length is both a pro and a con. It’s great for control and strength, but you’ll need a slim bit holder to reach into deeply recessed holes; the bit alone won’t clear tall countersinks.

Fit and driving performance

Fit quality is the first test I run. On a range of #4 and #6 Phillips screws from Hillman, Spax, and a couple of no-name faceplate screws, the bit seated fully with minimal wobble. The tip’s milling is clean; it bites the screw head without that “mushy” feel you get with cheaper bits. Cam-out resistance is noticeably better than the bulk contractor bits I keep around for rough work. Combining a crisp tip with a PH1 head makes a difference—on small screws, it doesn’t take much to strip, so a snug interface matters.

I used the bit with both a compact impact driver and a drill/driver. Despite being impact-rated, I still prefer to use low speed and light pressure for small PH1 screws. With the impact driver set to its lowest mode, the torsion zone smoothed out the pulses, which felt more controllable than using a standard insert. On the drill/driver, it behaved like any good insert—no surprises, just consistent engagement.

A few practical notes:
- The magnet is strong enough to hold a #6-32 machine screw horizontally. It’s not so strong that it becomes a chip magnet, but it will pick up fine steel debris if you’re working near sawdust laced with shavings. A quick wipe restores it.
- The short bit reduces overextension. That, along with the good fit, helped me avoid skipping out of a head on glossy lacquered cabinet doors.
- If you’re working with stainless screws (which are soft), feather the trigger. The bit won’t save you from over-torque, and PH1 heads are easy to chew in stainless.

Durability and wear

Bosch claims increased lifespan over standard bits. I can’t certify a specific multiple, but I can say this: over roughly 180 fasteners—mix of wood screws into poplar and MDF, and machine screws into steel boxes—my primary bit’s wings are still crisp and the tip hasn’t bell-mouthed. That’s better than the generic inserts I burn through in a weekend of trim work. The heat treatment feels appropriately balanced; it’s hard enough to resist rounding but not so brittle that it chips when a screw binds.

The torsion zone matters most when a fastener seizes: I had two instances where a machine screw caught slightly crooked in a painted electrical box. Instead of a sudden snap or a chewed tip, the bit and the screw both survived. That flex is insurance against ham-fisted moments.

Laser etching is still readable after a month of use, though it’s not as fast to identify at a glance as a color ring. It’s a minor nitpick, but in a crowded bit holder, a bright PH1 band would be easier to spot.

Ergonomics and handling

This is a simple insert, so “ergonomics” comes down to control and visibility. The short length makes the most difference: it keeps the head of the tool close to the work and makes it easier to sight down the bit, which matters when you’re starting a screw one-handed. In tight corners, this is also the format that lets you sneak into awkward angles, provided the recess isn’t too deep.

Compatibility is straightforward. It snaps into a standard 1/4-inch hex impact collet or a magnetic bit holder. If your drill has a three-jaw chuck and no hex holder, you’ll want a holder; clamping directly onto a 1-inch insert is possible but awkward and can mar the shank.

Where it shines

• Electrical and low-voltage work: #6-32 and #4-40 screws in cover plates and device rings. The bit’s magnet and precise tip help prevent cosmetic slips.
• Cabinet hardware and light brackets: small Phillips screws into hardwoods and plywoods benefit from the snug fit.
• Assembly work on racks, fixtures, and light-duty metal brackets where a PH1 drive is common.

If you mostly drive deck screws or structural hardware, this isn’t your everyday bit—the PH1 is a small-screw specialist.

Limitations and caveats

• Reach: At 1 inch, you’ll need a slim bit holder for deeply recessed holes. If your work often involves sink-deep fasteners, consider a 2-inch PH1 as a companion.
• Torque sensitivity: Even though it’s impact-rated, PH1 screws don’t like high impact pulses. Use low speed or a clutch setting when possible.
• Magnetic strength: Adequate for small screws, but don’t expect it to suspend heavier fasteners or overcome tight recess friction.
• Screw head match: A surprising number of #6 wood screws ship with PH2 heads. Double-check before you start; a PH1 in a PH2 head is a recipe for cam-out.

Longevity versus commodity bits

The most compelling reason to pick this bit over a bulk bin insert is consistency over time. With generic bits, I often retire them after 40–60 small screws as the wings round off and starts get sloppy. The Bosch PH1 stayed true through a longer run without noticeable degradation. The torsion zone also saved me from at least one potential snap. Over the course of a job, that difference shows up as fewer stripped heads and rework.

Value of the 2-pack

A two-pack makes sense for this size. PH1 inserts tend to disappear—vacuumed up, pocketed, or left in a holder on another tool. Having a spare in the pouch means less chasing around. Weight and bulk are negligible, and there’s no learning curve: both bits behaved identically out of the package.

Tips for best results

• Pre-drill for hardwoods and brass screws, even small ones. A precise bit can’t compensate for an over-tight path.
• Start at low speed, keep the bit fully seated, and let the magnet help you get the first threads to bite before ramping up.
• Keep a slim, good-quality bit holder in the kit. It expands what a 1-inch insert can reach.
• Wipe the tip periodically; metallic fines reduce engagement over time.

Recommendation

I recommend the Bosch PH1 impact insert bits for anyone who regularly works with small Phillips screws—electricians, cabinet installers, and DIYers tackling hardware and trim. The combination of a crisp, precision-milled tip, a meaningful torsion zone, and durable heat treatment yields better control and longer life than commodity inserts. The magnet is practical without being messy, and the short format enhances accuracy on delicate tasks. Just pair it with a slim bit holder for recessed fasteners and keep your tool at low speed for PH1 work. If your projects rarely see small Phillips screws, you won’t benefit; but if you do, this little bit earns its place in the driver case.
