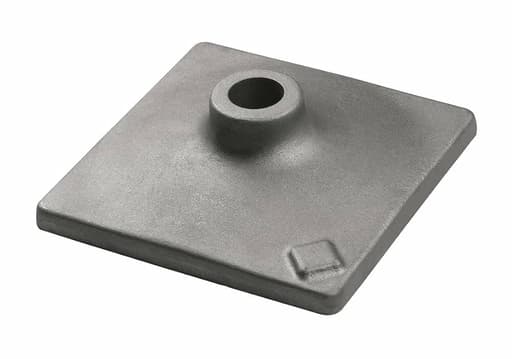

1-1/8 in Hex Hammer Steel Tamper Plate

Features

  • One-piece design
  • Alloy steel construction
  • 1-1/8 in hex collar shank
  • Compatible with HS2126 tamper-plate chisels
  • Available in multiple face sizes

Specifications

Shank 1-1/8 in hex collar
Material Alloy steel
Dimensions 6 x 6 in
Model Number HS2124
Pack Quantity 1
Shank 1-1/8 in hex collar
Material Alloy steel
Dimensions 8 x 8 in
Model Number HS2125
Pack Quantity 1

Steel tamper plate with a 1-1/8 inch hex collar shank for use with hammer/demolition tools. Available in multiple face sizes and constructed as a single-piece component to provide a flat tamper surface. Compatible with tamper-plate chisels.

Model Number: HS2124

Bosch 1-1/8 in Hex Hammer Steel Tamper Plate Review

5.0 out of 5

Why I reach for this tamper plate

For small compaction tasks where firing up a vibratory plate compactor feels like overkill, I’ve had consistently good results using Bosch’s tamper plate on a 1-1/8 in hex demolition hammer. It turns a breaker I already own into a tidy, controllable compactor for backfill, base prep, and touch-up work around steps and tight trenches. It’s not trying to replace a full-size plate compactor for large slabs, but for targeted compaction—especially on hillsides, stairs, or confined spaces—it’s a practical, durable attachment.

Setup and compatibility

This plate is designed for 1-1/8 in hex hammers, the common collar-shank style you’ll find on many 30–40 lb breakers (I’ve used it primarily on a Bosch 11335K). You do need the matching tamper-plate shank to join the hammer to the plate—Bosch’s HS2126 is the intended mate. Once you’ve got the correct shank, the interface is straightforward, solid, and free of the play you sometimes feel with improvised adapters.

A quick tip from the field: a dab of anti-seize on the mating surfaces makes disassembly much easier after a long day. Compacting generates heat and fines that can lock things together; a little prevention goes a long way.

Build quality and design

The plate is a one-piece alloy steel component with a flat working face. That single-piece construction matters. I’ve had welded plates from lesser brands develop hairline cracks where the post meets the plate, especially with off-center loading in trenches. Here, there are no welds to fatigue, and the strike loads travel through beefy steel without complaint.

  • Sizes: 6 x 6 in (HS2124) and 8 x 8 in (HS2125)
  • Shank system: 1-1/8 in hex collar
  • Material: alloy steel, through-hardened enough to resist peening without being brittle

The face arrives flat, with crisp edges. Over time, the contact surface has burnished but stayed level, which shows in the even compaction pattern it leaves. The corners haven’t mushroomed or rolled on me, even after working crushed stone and recycled asphalt.

In use: performance and technique

With the 6 x 6 in plate, the hammer’s energy is concentrated into a smaller footprint, which helps when I want higher pounds-per-square-inch in stubborn clay or when I’m compacting narrow lifts alongside forms. It’s also the better choice for stairs and terraced landscaping where accuracy matters. The 8 x 8 in face moves faster over open ground and is my pick for base layers under small sheds or stepping-stone paths.

A few practices have given me the best results:

  • Work in lifts: 3–4 in for granular base, 2–3 in for cohesive soils. Multiple passes beat one deep pass every time.
  • Mind moisture: slightly damp base compacts faster and more uniformly. Bone-dry or soupy material fights you.
  • Overlap: I aim for a 50% overlap, just like using a plate compactor, to avoid soft spots.
  • Protect finished surfaces: if you’re setting pavers or delicate stone, place a protective mat (rubber or a sacrificial plywood sheet) to avoid scuffs.

On a 35 lb breaker, the 6 x 6 plate compacts a 1–2 ft wide trench efficiently without over-excavating edges. The 8 x 8 plate covers area faster but asks a bit more of the hammer; in dense clay, I notice slightly slower impact recovery, which is normal with the increased contact area.

Noise and vibration are what you’d expect from a demolition hammer doing honest work. The plate doesn’t add odd resonance or chatter, and the flat contact helps the tool “stick” to the surface rather than bounce. Letting the hammer do the work—steady downforce without leaning in—yields better density and reduces operator fatigue.

Where it shines

  • Trench backfill around utilities and footings, where a plate compactor won’t fit
  • Stairs and rail tie steps, compacting lifts behind each course
  • Spot repairs in asphalt cold patch and pothole fills
  • Paver base in tight courtyards or along walls
  • Touch-up compaction around forms just before a pour

The combination of control and portability is the selling point. I can carry the hammer and plate up a hillside or into a basement without ramps or fuel, finish the job, and be packed up in minutes.

How it compares to a full plate compactor

  • Speed: For large, open pads, a vibratory plate compactor wins on coverage and uniformity. This plate can’t match the travel speed or vibration amplitude over dozens of square feet.
  • Depth: Dedicated compactors typically achieve deeper compaction per pass on granular materials. With the hammer and plate, lift thickness and moisture management become more critical.
  • Access and finish: The tamper plate excels in confined or irregular areas and on slopes. It’s easier to feather edges near forms without climbing onto them.

My rule of thumb: if I can’t turn a plate compactor around easily, I reach for the tamper plate. If I’m doing an entire driveway or patio pad, I rent or roll out the big machine.

Durability and maintenance

After extended use in crushed limestone, damp clay, and recycled asphalt, the plate face is still flat and free of localized cupping. The wearing surface polishes, as you’d expect, but I haven’t seen deformation that telegraphs into uneven compaction. The steel alloy and one-piece construction pay off here; there are simply fewer failure points.

Maintenance is minimal:

  • Keep the mating surfaces clean; grit at the interface accelerates wear and makes removal painful.
  • Inspect the collar and shank for burrs; dress lightly if insertion gets sticky.
  • Store dry to prevent surface rust. A light oil wipe keeps the face from flashing.

Choosing between 6 x 6 and 8 x 8

  • 6 x 6 (HS2124): Best for trenches, steps, and any situation requiring accuracy or higher pressure on a small footprint. Pairs well with mid-size breakers and feels nimble.
  • 8 x 8 (HS2125): Better coverage on open ground and base prep for small pads. It’s heavier and asks more of the hammer; I prefer it when I’ve got longer, unobstructed runs.

If you only buy one, I’d pick the 6 x 6 for versatility. If you regularly compact small flat areas, the 8 x 8 justifies itself quickly.

Limitations and gotchas

  • You must have a 1-1/8 in hex hammer and the correct tamper shank; this won’t fit SDS-max or spline tools.
  • It’s not a replacement for a vibratory plate on large projects; expect slower production over big areas.
  • Bare steel against finished pavers can mar surfaces—use a pad when needed.

None of these are faults of the plate; they’re realities of the system. As long as you match expectations to the task, the results are consistently good.

Value and who it’s for

If you already own a 1-1/8 in hex breaker, this plate turns it into a capable spot compactor for a modest outlay. Landscapers, plumbers, electricians, and remodelers who routinely compact small sections will get their money’s worth quickly. DIYers tackling steps, pathways, or fence lines will appreciate not having to rent and wrangle a gas plate compactor for every small job.

Recommendation

I recommend this tamper plate for anyone with a compatible 1-1/8 in hex demolition hammer who needs reliable, controlled compaction in tight or irregular spaces. The one-piece alloy steel construction has proven durable, the flat face leaves uniform results, and the system’s portability makes it a smarter choice than a full-size plate compactor for many small jobs. Choose the 6 x 6 for maximum versatility; add the 8 x 8 if you frequently cover open ground. It won’t replace a dedicated plate compactor on big pads, but it excels where access and precision matter—exactly the niche it’s designed to fill.
