Milwaukee Glass and Tile Drill Bit

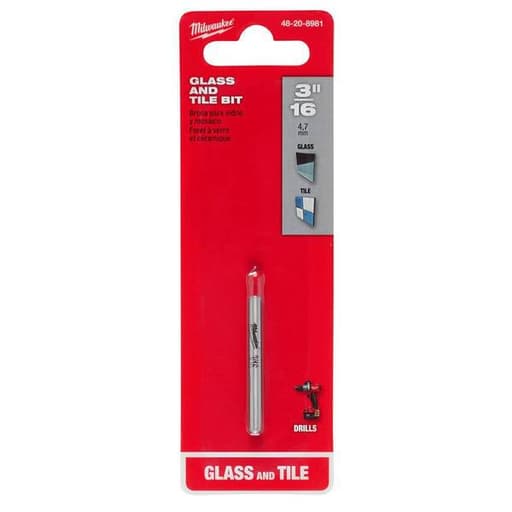

Creating precise holes in glass and ceramic tiles can be a challenging task, and having the right tool for the job is crucial. Recently, I had the opportunity to work with Milwaukee’s Glass and Tile Drill Bit, model number 48-20-8981, and I’m here to share my experiences using this bit for various projects.

Initial Impressions

Upon unboxing, the drill bit immediately feels well-made. It sports a reinforced carbide head, which Milwaukee claims is designed for increased durability. The bit is lightweight at just 0.18 lb and has a compact length of 2 inches, making it easy to handle and maneuver. The round shank is a standard 1/8 inch, ensuring compatibility with most drill/drivers, which is a plus for versatility.

One feature that caught my attention was the exact start tip, which is designed to minimize bit walking. This is particularly important when drilling into glass or ceramic tiles, where precision is key. Additionally, the sharpened and precision-ground carbide promises faster drilling and cleaner holes. However, it’s important to note that the bit is not recommended for porcelain tiles, a limitation that should be kept in mind depending on the scope of your project.

Performance and Durability

I first tested the bit on an old dual-pane window to create some vent holes. The exact start tip performed admirably, and the bit did not wander, allowing for precise hole placement. The drilling speed was impressive, and the holes were clean with minimal chipping around the edges. For this application, the bit performed exceptionally well, living up to its promise of creating clean holes in glass.

Next, I moved on to a ceramic tile project in a tiled shower wall. Here, the performance was a bit more varied. The bit drilled through the tiles relatively quickly, and I was able to make the six holes I needed without any major issues. However, I did notice that the bit’s edge retention was not as robust as I had hoped. After a few holes, the cutting edge began to show signs of wear, which affected the drilling speed and the cleanliness of the holes.

For a more rigorous test, I attempted to use the bit on a quarter-inch thick tile, which proved to be a tougher challenge. The bit struggled more here, and the wear on the cutting edge became more pronounced. While it did eventually get through, the process was slower, and the bit's longevity came into question.

Practical Considerations

One of the key practical considerations when using this bit is its longevity. While it performs well initially, its durability over extended use leaves something to be desired. For small projects or occasional use, it’s a solid choice, but for larger or more demanding tasks, you might find yourself needing a replacement sooner than expected.

Another consideration is the material compatibility. While it excels at drilling through glass and ceramic tiles, it’s not suitable for porcelain tiles. If your project involves a variety of tile types, you may need to invest in multiple bits to ensure you have the right tool for each material.

User Experience

From a user experience perspective, the bit is easy to use and fits well with standard drill/drivers. The round shank ensures a secure fit, and the lightweight design makes it easy to handle, even for extended periods. The exact start tip is a standout feature, providing excellent control and reducing the risk of bit walking, which can be a common issue with other bits.

However, the bit’s tendency to wear out relatively quickly means that you’ll need to keep an eye on its condition and be prepared to replace it if you notice a decline in performance. This can be a bit of a hassle, especially if you’re in the middle of a project and need to pause to get a new bit.

Final Thoughts

In conclusion, Milwaukee’s Glass and Tile Drill Bit, model 48-20-8981, is a good option for creating clean holes in glass and ceramic tiles, particularly for small to medium-sized projects. Its exact start tip and precision-ground carbide make it easy to use and capable of producing high-quality results. However, its durability over extended use and its incompatibility with porcelain tiles are notable limitations.

Would I recommend this tool? For DIY enthusiasts and those working on smaller projects, yes. It provides good performance at an affordable price point and is easy to handle. However, for professionals or those tackling larger, more demanding projects, I would suggest looking for a more durable option that can handle a wider range of materials. The Milwaukee Glass and Tile Drill Bit is a solid tool, but it’s best suited for specific applications where its strengths can be fully utilized.
