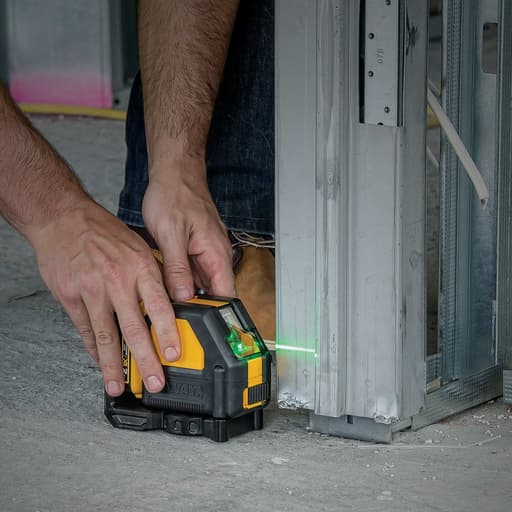

12V MAX Green Cross Line Laser

Features

  • 12V rechargeable lithium‑ion battery platform for extended runtime
  • Self-leveling horizontal and vertical cross lines
  • Green beam laser for improved visibility versus red beams in many indoor/outdoor conditions
  • Integrated magnetic bracket with 1/4" and 5/8" rear threads for mounting to metal and track
  • Full-time pulse mode for use with a detector to extend usable range
  • Overmolded housing with IP65 water and debris resistance
  • Locking pendulum to protect internal components during transport

Specifications

Battery Capacity [Ah] 2
Battery Chemistry Rechargeable Lithium Ion
Battery Run Time [Hrs] 7
Battery Source Rechargeable Li-Ion
Battery Voltage [V] 12
Color Yellow
Ip Rating IP65
Is Battery Included? Yes
Is It A Set? Yes
Laser Accuracy ± 1/8 in. @ 30 ft.
Laser Beam Color Green Beam
Laser Beam Projection Cross Line
Laser Classification Class 2
Leveling Type Self-leveling
Line Diagram Cross Line
Materials Housing Plastic + Rubber Overmold
Number Of Batteries Included 1
Number Of Beams 2
Number Of Pieces 7
Product Weight [Lbs] 8.7
Product Weight [Oz] 139.2
Voltage [V] 12
Includes Extended ceiling bracket; 12V battery; charger; target card; blow mold case
Warranty 3 Year Limited Warranty; 1 Year Free Service; 90 Days Satisfaction Guaranteed

Self-leveling cross-line laser that projects intersecting horizontal and vertical green lines for leveling and layout tasks. Powered by a 12V rechargeable lithium‑ion battery. The unit has an overmolded housing with IP65 resistance to dust and water and includes mounting and protective accessories.

Model Number: DW088LG
View Manual

DeWalt 12V MAX Green Cross Line Laser Review

4.5 out of 5

Laser levels have revolutionized the way we approach various construction and DIY projects, and the DeWalt Green Cross Line Laser (DW088LG) is no exception. After spending considerable time with this tool, I can confidently say it has many merits that make it a valuable addition to any toolkit. However, it also has a few shortcomings that are worth discussing.

The first thing that stands out about the DeWalt laser is its use of green laser technology. Green lasers are known to be significantly brighter than their red counterparts, and this model lives up to that reputation. Whether I was working indoors or outdoors, the green laser lines were highly visible, even in well-lit conditions. This increased visibility is particularly useful when working in environments with a lot of natural light or when you need to project lines over long distances.

One of the standout features of this tool is its self-leveling mechanism. This feature ensures that the laser lines are always level, even if the surface you are working on is slightly uneven. The self-leveling capability has a tolerance of up to 4 degrees, which is more than adequate for most applications. This makes the tool incredibly user-friendly, as you don't have to spend time manually adjusting the level.

The integrated magnetic bracket is another excellent feature. It allows for easy attachment to metal surfaces, which is particularly useful when working on steel studs or metal corner beads. The bracket also has 1/4" and 5/8" threads, making it compatible with most tripods. This versatility in mounting options adds to the tool's ease of use, allowing you to set it up quickly in various scenarios.

Durability is always a concern with tools, especially those used on construction sites. The DeWalt laser does not disappoint in this regard. The overmolded housing with an IP65 rating ensures that the tool is resistant to water and debris. This rugged design means you can use it in less-than-ideal conditions without worrying about damaging the internal components. The locking pendulum is another thoughtful addition, protecting the internal mechanisms during transport.

However, no tool is without its flaws, and the DeWalt laser has a few that are worth mentioning. One of the most significant drawbacks is the battery life. The tool uses a 12V Li-ion rechargeable battery, which provides extended run time compared to traditional AA or AAA batteries. Despite this, I found that the battery life could be better. For long projects, you may need to have a spare battery on hand to avoid interruptions.

Another issue is the visibility of the vertical laser line. While the horizontal line is bright and clear, the vertical line can sometimes be less visible, especially in very bright conditions. This can be a bit frustrating when you need to project vertical lines over long distances. A laser detector can help in such situations, but it's an additional expense that not everyone will be willing to make.

The carrying case is another point of contention. While the case is sturdy and provides good protection for the tool, it doesn't fit with DeWalt's T-stak system. This lack of compatibility can be an inconvenience if you already use the T-stak cases for other tools. Additionally, the case doesn't have much room for extra accessories, which can be a bit limiting.

Despite these drawbacks, the DeWalt laser excels in accuracy and ease of use. The tool is highly accurate, within 1/8 inch at 30 feet, which is more than sufficient for most projects. Whether I was installing cabinets, laying tiles, or setting up fence posts, the laser provided reliable and precise lines that made the work much easier and faster.

The tool's ease of use is another significant advantage. The controls are straightforward, with separate buttons for the horizontal and vertical lines. The tool also has a full-time pulse mode, which is useful when working with a detector to extend the visibility range. The magnetic bracket and various mounting options further enhance the tool's usability, making it suitable for a wide range of applications.

In conclusion, the DeWalt Green Cross Line Laser is a robust and versatile tool that offers excellent performance for both professional and DIY projects. Its bright green laser, self-leveling mechanism, and durable design make it a reliable choice for various tasks. However, the battery life and visibility of the vertical line could be improved, and the carrying case could be more user-friendly.

Would I recommend this tool? Absolutely. Despite its few shortcomings, the DeWalt laser provides excellent value for its price. Its ease of use, accuracy, and durability make it a worthwhile investment for anyone looking to improve their leveling and layout tasks. Just be prepared to invest in a spare battery and potentially a laser detector to get the most out of this tool.



Project Ideas

Business

Precision Layout Service

Offer fast, accurate layout for homeowners and trades: tile lines, wainscoting, crown, cabinet runs, and drop ceilings. Charge per room or linear foot; deliver pencil/laser-marked guides that speed up installs.


Event & Exhibit Alignment

Provide on-site leveling and plumb setup for signage, backdrops, pipe-and-drape, and trade show booths. The IP65 unit handles dusty venues, and the magnetic bracket speeds temporary mounting.


Deck/Patio & Hardscape Layout

Partner with landscapers to set straight references for pavers, fence lines, pergolas, and deck ledgers. Use pulse mode with a detector to maintain long outdoor lines and bill per project layout.


Weekend Rental + How-To Kits

Rent the laser with a quick-start guide, target card, painter’s tape, and layout templates for accent walls and gallery grids. Offer add-on tool bundles and collect deposits to reduce risk.


Content & Workshop Microbrand

Create short videos and classes teaching laser-based tricks for room makeovers and installations. Monetize via affiliate links, sponsorships, and paid local workshops that funnel leads to your layout service.

Creative

Geometric Accent Walls

Use the self-leveling cross lines to tape off perfect chevrons, diagonals, and color blocks around corners. The green beam stays visible in bright rooms for crisp paint lines and professional-looking two-tone rooms.


Gallery Wall Perfection

Project level and plumb lines to hang frames in a flawless grid, even on stair runs. The locking pendulum lets you mark, move, and repeat consistent spacing quickly.


DIY Slat Wall/Board-and-Batten

Lay out evenly spaced vertical battens and consistent top caps without math errors. Magnetic bracket and rear threads make it easy to mount while you nail and glue.


Tile & Backsplash Art

Align mosaics, herringbone, or hex tiles dead square to counters and centers. Use pulse mode with a detector to extend range on long runs like shower walls or floors.


Outdoor String-Light Canopy

Create a symmetric canopy over patios by matching anchor heights and spacing. IP65 housing and green beam visibility help you mark accurate points in variable outdoor light.
