Why I reached for this cup brush

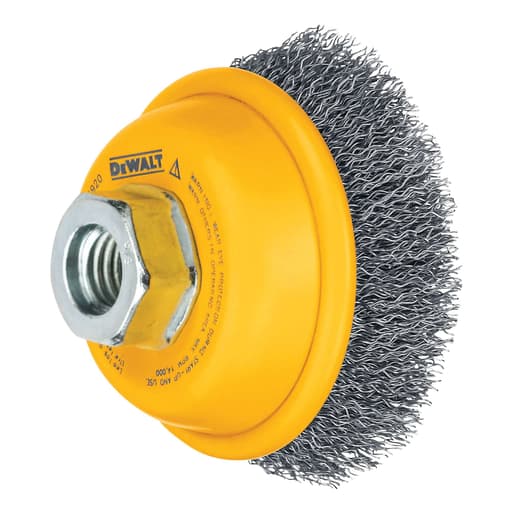

I keep a couple of wire brushes in the drawer next to my angle grinder, and I reach for a cup when I need to clear broad, flat surfaces quickly—painted sheet metal, scaly plate, or weld cleanup on brackets. The DeWalt cup brush I tested is the 3-inch, crimped carbon-steel version with 0.014-inch wire and a 5/8"-11 threaded arbor. On paper, it checks the right boxes for general surface prep: a compact diameter, a conservative wire size for controlled aggression, a 14,000 RPM rating, and an internal holding plate that’s supposed to help with balance and wire retention.

I ran it on a 4-1/2-inch, 11,000 RPM grinder across several common tasks: stripping old paint from a steel garden bench, blending and cleaning MIG welds on 3/16-inch angle iron, and knocking rust bloom off a cast iron vise base. That mix gave me a good sense of how the brush behaves on thin sheet versus thicker stock, and how it holds up over a few hours of intermittent use.

Setup and compatibility

Threading the brush onto a 5/8"-11 spindle is straightforward, and at 0.63 lb the cup adds some inertia without making the grinder feel nose-heavy. The 3-inch diameter is an efficient size for control; it doesn’t feel unwieldy around curves and inside frames. If you’re used to 4-inch cups, expect a bit more finesse with the 3-inch—less reach into corners, but better control in tight spots.

The internal holding plate matters. Plenty of budget cups feel lumpy as soon as they’re spun up; this one ran true out of the box with minimal vibration. That held up as the bristles wore in. Using the standard guard, the profile of the cup stayed clear of the shroud, and I didn’t need spacers or adapters.

A quick note on materials: this is carbon steel wire. It’s ideal for mild steel and cast iron, but I wouldn’t use it on stainless (contamination risk) or softer nonferrous metals like aluminum or brass (smearing, loading, and potential galling).

First passes: cut rate and control

Right away, the brush showed the typical behavior of a crimped wire: it’s more forgiving than a knotted cup and won’t dig trenches into thin metal if your angle or pressure wanders. On the painted bench slats, it lifted old alkyd paint and surface rust fast enough to make steady progress without gouging the sheet. The sweet spot was riding the outer third of the bristles at roughly a 10–15 degree angle, keeping the brush moving and letting the tips do the work.

Compared to a knot-style cup, the cut here is more controlled and the finish is finer. You can feather up to an edge without chewing it up, which is helpful on older sheet metal. On heavier scale—think mill scale or thick rust—the brush will still work, but you’ll feel it flex and “polish” more than bite. If heavy scale removal is your primary task, a knotted wire cup or a 0.020-inch wire would be more efficient.

Finish quality

The scratch pattern is even and consistent, about what I’d want before a primer coat. It leaves a matte, directional tooth that helps coatings adhere. On welds, it cleans spatter and haze nicely and blends the edges of a dressed bead without washing away surrounding material. You can get an attractive brushed finish on small fabrications if you keep your passes parallel.

The 7/8-inch trim length gives enough flex to conform to slight irregularities without “flopping” uncontrollably. The brush doesn’t chatter as long as you avoid pushing too hard; if you lean in and stall the wires, you’ll feel it start to hop and you’ll shorten its life.

Wire retention and durability

Crimped wire brushes shed—there’s no way around that—especially during the first minute of use when loose strands break in. I always do a short break-in at speed, pointing the brush away from me and bystanders to let any loose wires eject safely.

With that baseline in mind, here’s what I saw: after roughly three hours of intermittent work, the brush had lost some length uniformly and thrown a modest number of wires, mostly during early use and whenever I caught a sharp edge. It wasn’t excessive, and the cup remained balanced. The holding plate seems to help keep the pack tight as it wears, and I didn’t notice the “one-sided thin spot” that plagues cheaper cups.

Wire shedding accelerates if you abuse it—digging the rim into a corner, using excessive pressure, or running with the face too flat. Keep a light hand and keep it moving, and it holds up respectably for a crimped cup. If you want maximum longevity under heavy, continuous duty, a knotted wire cup is the better pick; it’s simply a tougher construction.

Safety and best practices

• Wear a face shield, not just glasses, plus gloves and heavy sleeves. Stray wires are needles; you’ll find them in unexpected places.
• Use the grinder’s guard and keep the cup at a shallow angle; ride the tips, not the hub.
• Let speed do the work. At 11,000 RPM, the brush is well under the 14,000 RPM limit. More pressure doesn’t equal more removal; it equals more fatigue and wire loss.
• Avoid sharp edges and inside corners with the rim. Approach corners obliquely or switch to a smaller wheel or a knot cup.
• Keep bystanders clear. Clean up with a magnet to snag wires on the floor.

These small habits make a big difference in both results and lifespan.

Where it shines—and where it doesn’t

Shines:
- Paint and rust removal on sheet metal and light plate where you need control and a clean, even profile.
- Weld cleanup and edge blending on mild steel fabrications without gouging adjacent surfaces.
- General prep before priming or topcoating, leaving a uniform tooth.

Not ideal:
- Heavy mill scale or thick, hard rust on structural steel—use a knotted wire cup or a flap disc.
- Stainless or nonferrous metals—use stainless wire or a non-marring alternative to avoid contamination.
- Tight inside corners and deep crevices—the 3-inch cup can’t reach; a narrower wheel or hand brush is better.

Value and alternatives

This DeWalt cup sits in the sweet spot for general-purpose prep: crimped 0.014 wire, compact 3-inch size, and a true-running hub. The internal holding plate seems to pay off in balance and consistency. Cheaper off-brand cups can work in a pinch, but they often vibrate, shed unpredictably, and fatigue the operator. If your workload leans heavy—continuous scale removal, shipyard-grade rust—step up to a knotted wire cup in the same size. If you work delicate panels, consider a finer crimp or smaller diameter.

Final thoughts and recommendation

After a few sessions across paint stripping, rust removal, and weld cleanup, the DeWalt cup brush proved to be a steady, predictable tool for light-to-medium steel prep. It runs true, leaves a clean and paint-ready finish, and offers the control I want when I’m working thinner material. Wire shedding was present (as it is with all crimped cups) but manageable when I used good technique—light pressure, shallow angle, and constant motion. The brush held its balance as it wore, and the 3-inch form factor made it easy to guide in tight assemblies.

I recommend this tool for anyone who needs a controlled, general-purpose cup brush for ferrous metals—home shop and jobsite alike—especially if you’re prepping sheet metal or blending welds where a knotted cup would be too aggressive. If your work is heavy-duty, continuous, and abusive, choose a knotted-wire alternative for greater durability. Used correctly, this brush delivers clean results, reasonable life, and confidence-inspiring balance at a fair cost, which is exactly what I expect from a go-to cup brush.
