Features
- 8 A high-performance motor
- 2.6 J impact energy (EPTA)
- SDS+ chuck
- Full-speed rotating brush ring for forward and reverse operation (assists removing stuck bits)
- Reverse function
- Integral clutch to reduce sudden high-torque reactions if the bit jams
- Compact, lightweight design
- Compatible with D25301D drilling dust extraction system
- Includes 360° side handle, depth rod and kit box
Specifications
| Amps [A] | 8 |
| Chuck Size [In] | 1 |
| Chuck Type | SDS+ |
| Color | Yellow |
| Cord Length [Ft] | 9.8 |
| Impact Energy (J) Epta Value | 2.6 Joules |
| Is It A Set? | Yes |
| Max. Drilling Capacity (Wood) [Mm] | 30 |
| Max. Drilling Capacity (Masonry) [Mm] | 4–26 |
| Number Of Pieces | 4 |
| Power Source | Corded |
| Product Height [Mm] | 210 |
| Product Length [Mm] | 335 |
| Product Width [Mm] | 75 |
| Product Weight [G] | 3000 |
| Product Weight [Kg] | 3 |
| Product Weight [Oz] | 91.2 |
| Sound Pressure [D B(a)] | 89 |
| Uncertainty K1 (Vibration) | 1.5 m/s2 |
Related Tools
Related Articles

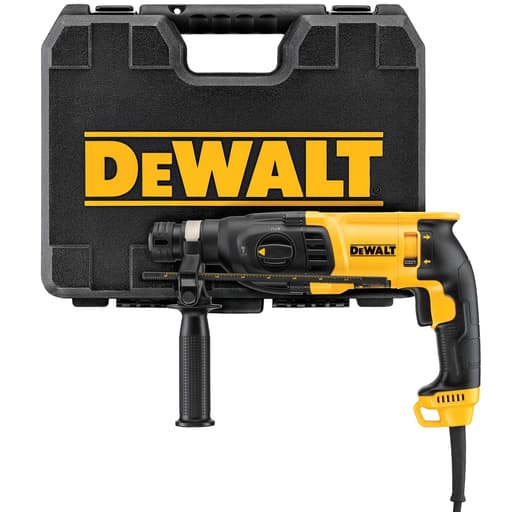

Pistol-grip SDS+ rotary hammer designed for drilling and light chipping. It uses an 8 A corded motor to deliver 2.6 J of impact energy. The tool includes a reversing function and a rotating brush ring to assist in removing stuck bits. Supplied with a side handle, depth rod and a kit box for transport. Typical applications include drilling masonry (4–26 mm), drilling wood and steel (up to 30 mm), tile removal, small channelling and mortar/plaster removal.
Project Ideas
Business
Mobile Masonry Mounting & Anchoring
Offer on-site drilling and anchor installation for TVs, shelves, handrails, gym racks, hose reels, and bike racks in brick, block, or concrete. The SDS+ hammer’s 4–26 mm masonry capacity covers common anchor sizes; dust extraction keeps interiors clean and the clutch improves safety in occupied spaces.
Tile Removal & Surface Prep Micro-Crew
Provide fast bathroom/kitchen tile demo, thinset removal, and small channelling for remodelers. The lightweight rotary hammer excels at light chipping and tile lift-off, making you a nimble, dust-controlled partner for contractors who need quick turnarounds.
Low-Voltage/Electrical Retrofit Drilling
Specialize in drilling pass-throughs for cables and creating small chases in masonry/plaster for thermostat wires, camera lines, and conduit. Use the depth rod for consistent penetrations and reversing to back out stuck bits, minimizing wall damage and patch time.
Storefront Signage & Fixture Install
Install anchors for exterior signs, lighting fixtures, menu boards, and security hardware on brick and concrete facades. Market a dust-managed, quick-turn service for small businesses; the compact tool and integral clutch help with precision and safety on ladders and lifts.
Pergola/Post Base & Railing Anchoring
Offer anchoring services for deck post bases, pergola footings, balcony railings, and gate hardware on patios and slabs. The tool’s 2.6 J impact energy and SDS+ chuck speed up repetitive anchor holes, while the side handle improves control for accurate layouts.
Creative
River Rock Lamp With Hidden Wiring
Select a large, flat river rock and drill a clean through-hole for the lamp cord using masonry bits. The SDS+ rotary hammer’s 2.6 J impact energy and depth rod help keep the bore straight, while reverse assists if the bit binds. Mount the rock on a wood base, run the cord through, add a lamp stem and shade for a sculptural, nature-inspired lamp.
Carved Concrete Planters and Candle Holders
Cast simple concrete blocks or use off-the-shelf pavers, then drill recesses and chip shallow pockets to create geometric planters or tealight holders. The hammer’s light chipping mode and SDS+ bit changes make it easy to produce sets with consistent hole depths using the depth rod.
Inlaid Garden Stepping Stones
Take concrete pavers, lay out patterns, and use the hammer to carve shallow channels and recesses for glass, tile, or pebble inlays. The compact, lightweight body and dust-extraction compatibility help maintain control and cleanliness for crisp, decorative pathways.
Mosaic Tile Feature Panels
Create textured art panels by selectively removing tiles and thinset from cement board or old tile sections. The tool’s light chipping is ideal for controlled tile removal, letting you re-lay shards into patterns and grout for custom wall art or headboards.
Acoustic Diffuser Wall Art
Make skyline-style diffusers from aerated concrete or lightweight blocks by drilling varied-depth holes and light-chipping recesses across a grid. The depth rod ensures precise depths for acoustic performance while producing a modern, architectural wall piece.
