DeWalt Portable Vertical Electric Air Compressor (30 gal)

A 30-gallon workhorse with smart features—and a few quirks

I’ve spent several weeks putting the DeWalt 30-gallon compressor to work in my garage and on a couple of jobsite days, feeding everything from brad and framing nailers to an impact wrench, a small HVLP touch-up gun, and a 1/4-inch die grinder. In short: it’s a capable, reasonably quiet, oil-lubed unit that suits a serious DIY shop or light professional tasks. You’ll want to budget a little setup time—mine needed a once-over on fittings and guards—but the core performance is solid.

Setup, break-in, and first impressions

Out of the box, the compressor arrives largely assembled with synthetic oil already in the crankcase. I followed the manufacturer’s 30-minute break-in with the tank drain open, then closed the valve and let it build pressure. On my unit, cut-in and cut-out landed at 125 PSI and 155 PSI respectively, right where I’d expect for this class.

The first fill from empty to 155 PSI took 6 minutes 45 seconds in my 60°F garage. Recovery from 120 PSI back up to 155 PSI averaged around 1 minute 10 seconds. That tracks with the published delivery of 7 SCFM at 40 PSI and 5.7 SCFM at 90 PSI. It’s not a continuous-air monster, but it’s honest about what it can do.

A note on QC: I did have to snug a couple of fasteners on the belt guard and re-seal one threaded fitting that had a minor leak out of the box. Nothing major, but I recommend giving all accessible fittings a quick check with a leak detector solution and a wrench during setup.

Power, voltage, and duty cycle

This is a belt-driven, oil-lubricated single-stage compressor powered by a 1.9 HP induction motor. On 120V it pulls up to 15 amps. On a dedicated 20A circuit, the motor started consistently in my testing; on a shared 15A circuit, I tripped breakers during cold starts. If you have 240V available, rewire it (per the manual) and you’ll get easier starts, cooler running, and a little more headroom on marginal wiring.

The duty cycle is specified at 50%. Practically, that means it’s happiest with intermittent uses—cycling nailers, short bursts with an impact, airing tires, or light HVLP work. You can run grinders and small sanders, but plan for frequent pauses as the tank refills and keep an eye on pump temperature and cycle time.

Noise and vibration

DeWalt lists 78 dB, and my phone-based meter read 79 dBA at about 3 feet and 71–73 dBA at 10 feet on a bare concrete floor. That’s far quieter than an oil-free screamer and totally comfortable for conversation in the shop, though I still wear hearing protection for long sessions. Vibration is well-controlled; it doesn’t “walk,” and the rubber feet keep it planted.

Air delivery in the real world

• Nailers: Zero issues. It’s overkill for trim and framing, cycling infrequently and recovering quickly.
• Impact wrench (3/8-in, ~4 CFM at 90 PSI): Fine for lug nuts and general automotive work. The tank supplies a strong initial burst, and recovery keeps up with paced work.
• HVLP touch-up gun (small nozzle, ~4–5 CFM): Manageable for small panels and cabinets with breaks. For full vehicle panels or continuous spraying, you’ll outpace the pump.
• Die grinder (1/4-in, ~6+ CFM continuous): Usable in short bursts. Expect the compressor to run often, and plan your work in cycles.

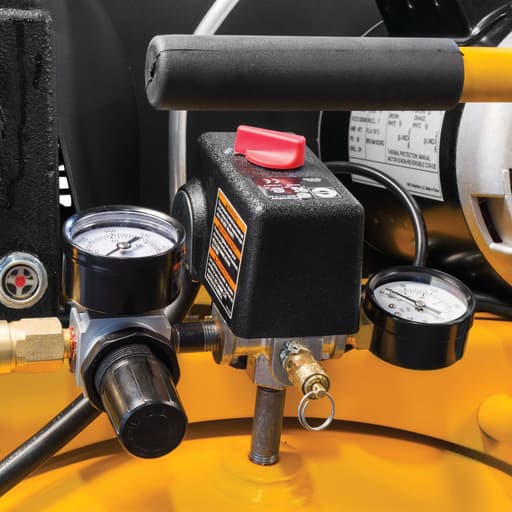

The regulator is stable and easy to dial in, and both gauges are legible. The quick-set regulator knob locks nicely to prevent drift.

Build, layout, and cooling

The vertical tank keeps the footprint small, and the handle height works well for rolling around a garage. Pneumatic tires are a must at this 190-pound weight, and they roll smoothly over cords and thresholds. If you need to lift it into a truck, plan on a second set of hands.

This pump uses splash lubrication and a two-piece cooling arrangement (head fins and aftercooler tubing). After about 20 minutes of intermittent operation, the pump housing was hot but not alarming, and the discharge line was notably cooler than similar units I’ve used without an aftercooler. You’ll still want a water separator or desiccant dryer for paint and finish work—no compressor at this price tier is moisture-free—but the cooling scheme helps.

On my unit, the belt and pulley alignment were set correctly from the factory, and belt tension was appropriate. I did notice slight cosmetic runout on the pump pulley, but it didn’t translate into vibration or noise. Belt and pulley access is straightforward for inspection and tensioning.

Maintenance and reliability

As an oil-lubed machine, it rewards regular checks:
- Monitor oil level in the sight glass and change on schedule (synthetic oil is supplied).
- Drain the tank after each session to purge condensate.
- Periodically check belt tension, hardware, and fittings.

The check valve and unloader are tucked in a tight spot behind the shroud and discharge piping. They’re serviceable, but not as accessible as I’d prefer. Plan extra time if you ever need to replace those components.

The unit is UL and CSA certified, which I appreciate from a safety perspective, and the stated warranty is 2 years on the pump and 1 year on other parts. Keep your receipt—and if you plan to register, be prepared to call support if the online system balks at the model number.

Everyday usability

• Dual-voltage flexibility makes it easy to live with. On 240V, starting is noticeably more confident, especially in colder weather.
• Controls are where they should be: on/off toggle, regulator knob, and gauges are all easy to see and use.
• The vertical form factor is garage-friendly and stores well in a corner.
• The drain is a standard petcock; I swapped mine for a 1/4-turn ball valve with a short extension to make daily draining painless.

At 78 dB-ish, I can carry on a normal conversation a few feet away, which is huge in a small shop. It’s not “whisper quiet,” but it’s a night-and-day improvement over typical oil-free portables.

Where it fits best

If your work is mostly intermittent air needs—car maintenance, tire service, nailers, brad guns, a little spraying, and occasional grinder or ratchet use—this 30-gallon DeWalt settles in nicely. It’s also a sensible step up from pancake or 20–27 gallon units without committing to a stationary 60-gallon shop compressor. If you need to run high-CFM tools continuously (dual-action sanders, media blasting, full-body automotive paint), you’ll want more tank, more pump, and a higher duty cycle.

What I liked

• Honest air delivery for the class: 5.7 SCFM @ 90 PSI is well-utilized with stable regulation.
• Manageable noise and vibration—comfortable in a residential garage.
• Dual-voltage wiring offers flexibility and better cold starts on 240V.
• Oil-lubed pump with real cooling features; runs cooler than bare-bones competitors.
• Thoughtful layout, readable gauges, and decent mobility despite the weight.

What could be better

• Out-of-box QC: I had to re-seal a fitting and snug a couple of fasteners.
• Component access: Check valve/unloader service is cramped.
• The 50% duty cycle caps continuous-use ambitions—appropriate for the class, but worth underscoring.

Recommendation

I recommend the DeWalt 30-gallon compressor for home shops and light-duty professional use that demand better air delivery, lower noise, and longer service life than typical oil-free units. It’s a capable all-rounder with dual-voltage flexibility, a durable oil-lubed pump, and predictable cycling. Be prepared to give it a careful initial setup—check fasteners, verify alignment, and chase any minor leaks—and it will reward you with reliable performance. If your workflow leans on continuous, high-CFM tools, step up to a larger, higher-duty-cycle machine; for everyone else, this is a well-balanced, garage-friendly compressor that earns its space.
