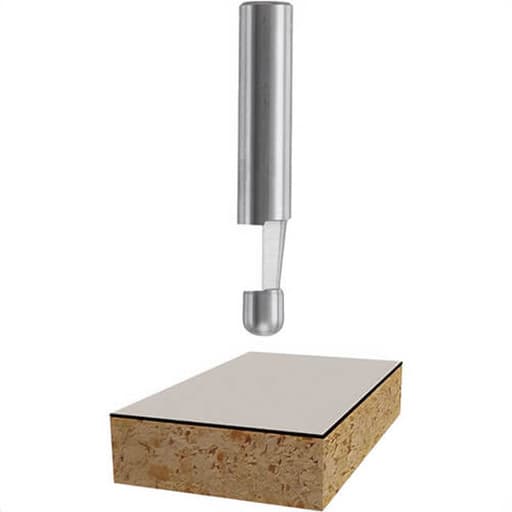

Bosch Solid Carbide Bevel Trim Bit

Why I reached for this bit

On laminate countertop projects and cabinet doors, I like a tiny, consistent bevel that softens the edge without looking “chamfered.” That’s exactly the niche where Bosch’s bevel trim bit with the 7.5° angle has earned a spot in my trim-router kit. It’s a simple tool—solid carbide, single flute, 1/4-inch shank—with one clear mission: precision, shallow bevels at high feed rates.

Build and design

The bit is compact at 1.5 inches overall length, with a 1/4-inch shank and a very short 1/4-inch working length. The short projection is a good thing here: less leverage, less chatter, and more control in a small laminate trimmer or palm router. Solid carbide construction gives it the rigidity and wear resistance you want for hard sheet goods and abrasive laminates.

The geometry is straightforward: one cutting edge, ground to a 7.5° bevel. That angle matters. A shallow bevel like this produces a subtle break that looks clean and professional, especially on laminate edges where a sharp 45° chamfer can look heavy-handed or expose too much of the core material. Single-flute bits also evacuate chips well and tolerate higher feed rates, which I found helpful when running long edges.

Setup and workflow

I used the bit in a trim router with a 1/4-inch collet and also on a router table with a fence. There’s no bearing on the bit, so your accuracy comes from your fence, edge guide, or workholding. For handheld use, I had the best results using a small offset base on my trimmer and letting the fixed base ride the work surface while I referenced a straight edge where needed. On the router table, a fence setup with a sacrificial face made it almost foolproof.

A few setup notes from my experience:
- Keep the projection as short as possible. With such a small working length, you don’t gain anything by extending it.
- High speed is your friend for a bit this small. In a trim router, I ran near top speed and adjusted feed rate to avoid burning.
- Snug up the fence carefully. A tiny shift makes a visible difference at such a shallow angle.

Performance in common materials

• High-pressure laminate over particleboard/MDF: This is where the bit shines. It leaves a clean, hairline bevel that de-burrs laminate edges, reduces chip-prone corners, and looks intentionally finished. I could move at a brisk pace without fuzzing the core material.
• Veneered plywood: Excellent results with painter’s tape on the veneer face and a light finish pass. The shallow bevel reduces the risk of the veneer lifting compared to sharper angles.
• Solid hardwoods: Clean, crisp results on maple and oak, provided the grain direction is respected. On end grain, a light climb-cut pass notably improved the surface.
• MDF and melamine: Very good, with no charring at typical high router speeds. The single flute cleared dust well and didn’t clog.

Because there’s only one flute, you can feel the “heartbeat” of the cut a bit more than with multi-flute chamfer bits, especially at slower feed rates. That didn’t affect the finish when the speed and feed were dialed in, but it’s worth keeping your grip firm and your passes steady.

Precision and finish quality

The standout characteristic is consistency. The 7.5° bevel isn’t dramatic, and that’s precisely why it looks so refined on cabinets and countertops. Even small misadjustments show up with a shallow bevel, so repeatability matters. On the table with a fence, I could hold a uniform reveal along several feet of edge. Handheld, I needed to pay closer attention to my base support, but the short working length makes it surprisingly controllable.

Finish quality is very good out of the gate. On plywood and hardwood, I occasionally followed with a light sanding by hand to blend the arris, but often it wasn’t necessary. On laminate, I wouldn’t touch the edge afterward—any sanding can scuff the face—so it’s nice that the bit leaves a crisp, clean line by itself.

Durability and wear

Solid carbide is the right call for abrasive sheet goods. After multiple countertop and shelf edges (laminate, melamine, and birch ply), the cutting edge still felt sharp and produced clean shavings. Single-flute bits concentrate wear on one edge, but they’re also easier to keep cool at healthy feed rates. I didn’t see heat discoloration or micro-chipping, which tells me the grind quality is solid.

As with most small specialty bits, resharpening is possible but not always cost-effective; treating it as a consumable for laminate-heavy work isn’t unreasonable. That said, I’d expect good life if you avoid hitting staples or mineral streaks and keep your feed consistent.

Where it fits in the shop

• Trim routers and laminate trimmers: Ideal. The 1/4-inch shank and short overall length match these compact tools perfectly.
• Router tables: Also a good fit. With a fence, you can dial in the bevel depth to a repeatable setting for batch work.
• Jobsite touch-ups: Great for knocking down sharp edges on prefinished panels or easing doors and drawers after installation.

If your work emphasizes subtle, repeatable edge breaks—especially on laminate, melamine, and veneered panels—this bit fills a gap that a standard 45° chamfer can’t.

Limitations and trade-offs

• No bearing: You’ll need a fence or guide for consistent results. If you’re used to bearing-guided bits, this changes your workflow a bit.
• Single-flute personality: You get great chip evacuation and higher allowable feed rates, but you also need to maintain steady hand pressure to avoid a wavy line on handheld passes.
• Very shallow angle: That’s the point here, but it means this is not a general-purpose chamfer bit. For decorative bevels or heavy edge breaks, you’ll still want a 30–45° chamfer.
• Short working length: Perfect for trim work, but not designed for deep bevels or thick stock profiling.

None of these are dealbreakers; they’re characteristics of a specialized bit, and understanding them makes setup smoother.

Tips for best results

• Make a test pass on scrap to dial in depth—it only takes a hair to change the look.
• Use painter’s tape on veneer edges to reduce the risk of lift, especially against the grain.
• Consider a light climb-cut finish pass on hardwood end grain for a glassy edge (only if you’re comfortable and secure with your workholding).
• On a router table, run a sacrificial fence and backer at the exit edge to eliminate any chance of blowout.

Value and who it’s for

If your projects regularly include laminate tops, Euro-style cabinets, or sheet-goods furniture where a subtle eased edge looks appropriate, this bit earns its keep quickly. It’s not trying to be a do-everything chamfer; it’s a finishing tool that adds polish and durability to edges that see daily use. For occasional users who only need a heavy chamfer now and then, a larger-angle bit might be more versatile. But for the precision trim niche—especially on man-made sheet goods—this shallow 7.5° angle is the right tool.

Recommendation

I recommend this bevel trim bit. It’s well made, cuts cleanly across the materials where a shallow bevel matters most, and its compact, single-flute design suits trim routers and high-feed workflows. The lack of a bearing requires a fence or guide, and it’s not a substitute for a traditional chamfer bit when you want a bold edge. But for subtle, professional-looking breaks on laminate, melamine, and veneered panels, it delivers consistent results with minimal fuss.
